Quick Details
-
Control System Brand:
-
RuiDa
-
Cutting Area:
-
1300*2500mm
-
Cutting Thickness:
-
30mm
-
Control Software:
-
DSP
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
REDSAIL
-
Weight (KG):
-
900 KG
-
After-sales Service Provided:
-
Overseas service center available
-
Certification:
-
ce
-
Laser Power:
-
100W/130W/150W
-
Control system:
-
32 Bit DSP
-
Drive type:
-
Stepper motor
-
Resolution:
-
2500DPI
-
Showroom Location:
-
Australia
Quick Details
-
Laser Type:
-
CO2
-
Cutting Speed:
-
1000mm/s
-
Cooling Mode:
-
WATER COOLING
-
Control System Brand:
-
RuiDa
-
Cutting Area:
-
1300*2500mm
-
Cutting Thickness:
-
30mm
-
Control Software:
-
DSP
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
REDSAIL
-
Weight (KG):
-
900 KG
-
After-sales Service Provided:
-
Overseas service center available
-
Certification:
-
ce
-
Laser Power:
-
100W/130W/150W
-
Control system:
-
32 Bit DSP
-
Drive type:
-
Stepper motor
-
Resolution:
-
2500DPI
-
Showroom Location:
-
Australia
Product Overview

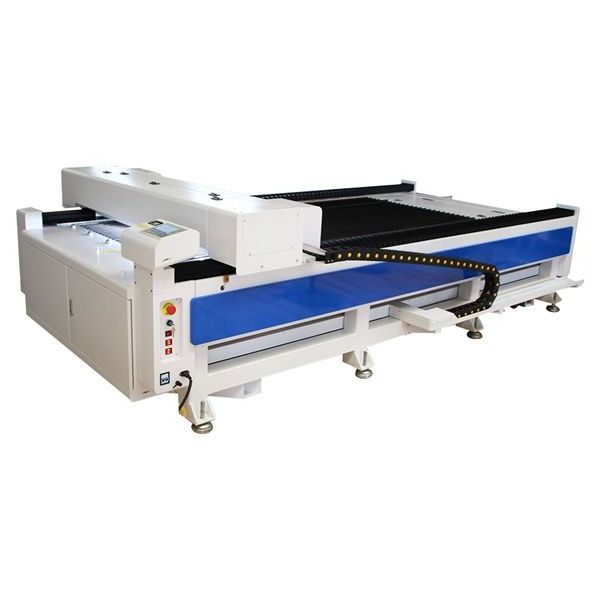

Large Bed Laser Cutting Machine 1300x2500mm With 100w 130w 150w
REDSAIL Professional Flatbed Laser Cutting Machine can cut through more than 20mm thickness materials with High Powered delivers up to 180 watts. Working platform 4'x6', 4'x8' and 5'x8' . REDSAIL designed and engineered single head and optional dual heads which allows laser cutting machine to vector cut and engrave non-metal materials with high working efficiency! New available Driving way with less maintenance and longer working life. Upgrade your laser to be higher cutting power (includes the higher industry water chiller). Compatible LightBurn offers an All-In-One laser software thats both intuitive and feature rich.
FEATURES AT A GLANCE
PRODUCT SPECIFICATIONS
|
Model
|
CM1325
|
|
|
|
|||
|
Working Area
|
1300mm*2500mm
|
|
|
|
|||
|
Laser Power
|
100W/130W/150W/180W
|
|
|
|
|||
|
Laser Tube Type
|
Water cooling Co2 sealed glass
|
|
|
|
|||
|
Controller System
|
DSP
|
|
|
|
|||
|
Image form
|
Plt, Dxf, Bmp, Ai, Dst
|
|
|
|
|||
|
Cooling system
|
Water chiller
|
|
|
|
|||
|
Working Platform
|
Blade platform/Honeycomb
|
|
|
|
|||
|
Double head
|
Optional
|
|
|
|
|||
|
Red-dot Positioning
|
Yes
|
|
|
|
|||
|
Drive type
|
Microstepping stepper motor system
|
|
|
|
|||
|
Max speed
|
1000mm/s
|
|
|
|
|||
|
Resolution
|
2500DPI
|
|
|
|
|||
|
PC interface
|
USB3.0/USB Disk/NetWork
|
|
|
|
|||
|
Voltage
|
110V or 220-240V/ 50~60Hz
|
|
|
|
|||
PRODUCT CONFIGURATION
SALES AND SERVICE NETWORK
Successful Project
Packaging&Shipping
FAQ
Q: Do I need two laser machines to engrave and cut separately?
A: No, the laser machines we provide are capable of both engraving and cutting. One machine alone can fulfill the two purposes.
Q: Do the laser machines need to be connected to a laptop or desktop computer to work?
A: Yes, either is ok. It supports Windows 10, Windows 2000, Windows XP, Win 7, and other operating systems
Q: What kind of graphic format does it support?
A: JPG, PNG, BMP, PLT, DST, DXF, CDR, AI, DSB, GIF, MNG, TIF, TGA, PCX, JP2, JPC, PGX, RAS, PNM, SKA, RAW , etc.
Q: How to distinguish laser tubes with different powers and applications?
A: 1. Laser tube length (relatively speaking, the longer, the bigger)
2. Laser tube diameter (relatively speaking, the thicker, the bigger)
3. The bigger a laser tube power is, the deeper the machine can cut, but its light spot is bigger. So, it is better to use a machine with a low-power laser tube to engrave, such as 40W, 50W or 60W.
Q: Is it better to increase blow to improve laser processing performance?
A: For some thick materials, it works. But, when carving some other materials, you need to blow less.
Q: How long will it take to learn to operate a laser machine?
A: If you are able to use some basic graphic design software, it will only take a few hours to master the operation. You just need to do some simple tests on different processing materials to know how to set the correct speed and laser power.
Q: Is a laser machine in operation harmful to our bodies?
A: It is not harmful as long as the laser is not exposed directly to skin and eyes.
