Quick Details
-

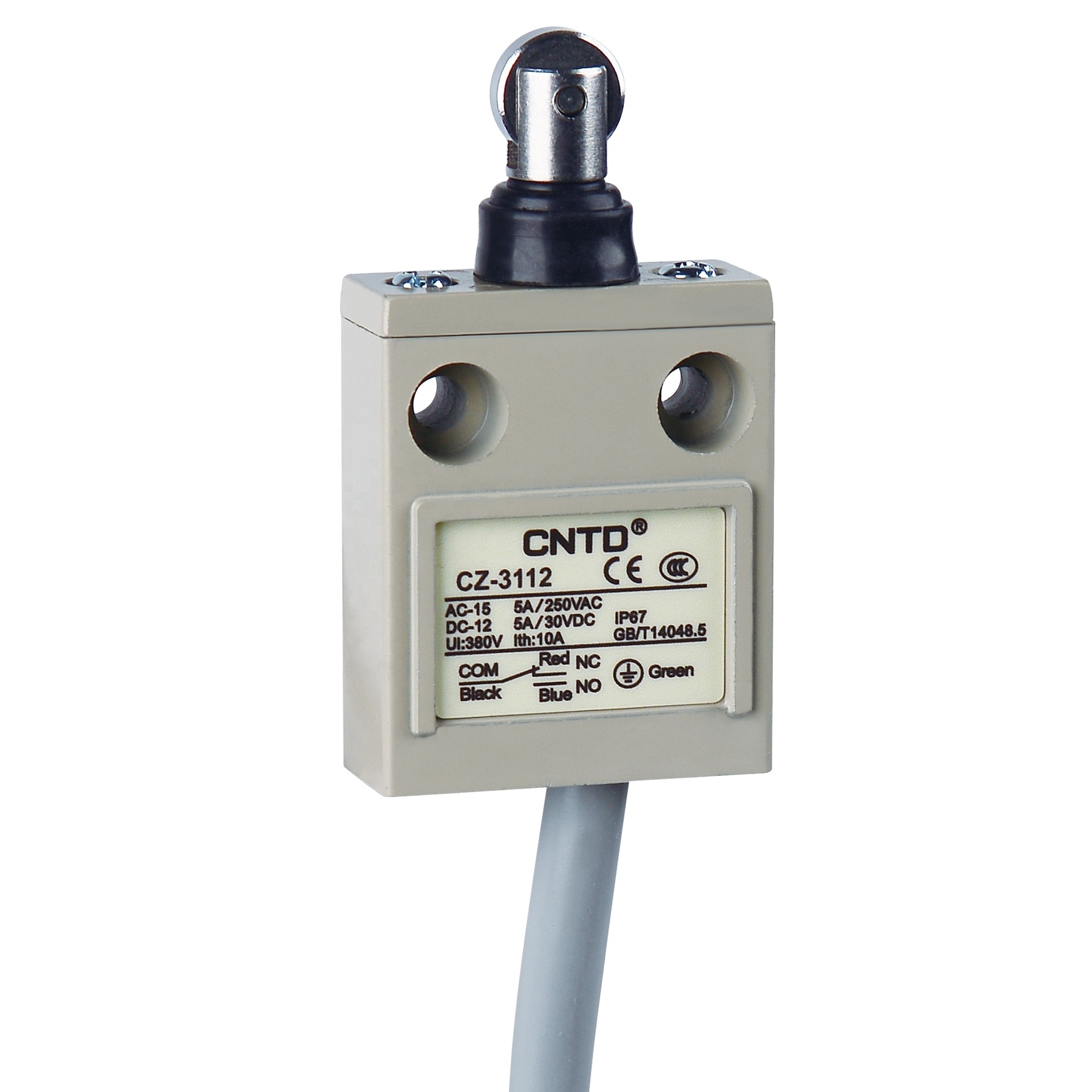

Model Number:
-
CZ-3112
-
Protection Level:
-
IP67
-
Operating Temperature:
-
-20~+70℃(With no icing)
-
Max. Current:
-
10A
-
Feature:
-
Water-proof and oil-proof construction
-
Operating Speed:
-
1mm-1m/s
-
Operating Frequency:
-
Electical: 30 operations/min
-
Contact Resistance:
-
25mΩ max.(initial value)
-
Insulation Resistance:
-
100mΩ min.(below 500VDC)
-
Vibration:
-
10~55Hz,1.5mm double amplitude
-
Ambient temperature:
-
Using: -20~+70℃ (With no icing)
-
Humidity:
-
<95% RH
-
Electrical Life:
-
200,000 operations/min
-
Certification:
-
TUV, ISO9001, CCC, CE
Quick Details
-
Max. Voltage:
-
380VAC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
CNTD
-
Model Number:
-
CZ-3112
-
Protection Level:
-
IP67
-
Operating Temperature:
-
-20~+70℃(With no icing)
-
Max. Current:
-
10A
-
Feature:
-
Water-proof and oil-proof construction
-
Operating Speed:
-
1mm-1m/s
-
Operating Frequency:
-
Electical: 30 operations/min
-
Contact Resistance:
-
25mΩ max.(initial value)
-
Insulation Resistance:
-
100mΩ min.(below 500VDC)
-
Vibration:
-
10~55Hz,1.5mm double amplitude
-
Ambient temperature:
-
Using: -20~+70℃ (With no icing)
-
Humidity:
-
<95% RH
-
Electrical Life:
-
200,000 operations/min
-
Certification:
-
TUV, ISO9001, CCC, CE
Features
High mechanical strength, mainly consists of aluminum cast
Water-proof, oil-proof and dust proof construction
Various actuators for different applications
Specifications
|
Rating
|
5A 125V,3A 250VAC
|
|
|
|
|||
|
Operating speed
|
1mm-1m/s (Swing rod type)
|
|
|
|
|||
|
Operation speed
|
0.1mm-0.5m/s (Plunger type)
|
|
|
|
|||
|
Operating frequency
|
Electical: 30 operations/min
|
|
|
|
|||
|
Contact rsistance
|
25mΩ max. (initial value)
|
|
|
|
|||
|
Insulation resistance
|
100mΩ min. (below 500VDC)
|
|
|
|
|||
|
|
1000VAC, 50/60Hz for 1 minute between terminals of the same polarity
|
|
|
|
|||
|
|
1500VAC, 50/60 Hz for 1 minute between current-carrying and non-current-carrying metal parts
|
|
|
|
|||
|
|
1500VAC, 50/60 Hz for 1 minute between each terminal and ground
|
|
|
|
|||
|
Vibration
|
10~55Hz,1.5mm double amplitude
|
|
|
|
|||
|
Shock
|
Mechanical:Approx 1,000m/s² (about 100G'S)
Malfunction:Approx 500m/s² (about 50G'S)
|
|
|
|
|||
|
Ambient temperature
|
Using: -20~+70℃ (With no icing)
|
|
|
|
|||
|
Humidity
|
<95% RH
|
|
|
|
|||
|
Electrical life
|
200,000 operations above
|
|
|
|
|||
|
Weight
|
Approx.360g(cable length 3m) Approx.540g(cable length 5m)
|
|
|
|
|||
|
Protection level
|
IP67
|
|
|
|
|||
1.How and how long can I get a sample to check your quality?can I expect to get the sample?
----After price confirmation, pay the sample charge and send us confirm files, it will be ready for delivery in 3-5 days.
----You can use your own express account or prepay us if you do not have an account.
2.Can you do the design for us?
----Yes. Send us images, Logo, text and tell us how you would like to arrange them.We will see if we can meet your needs and
answer you as soon as possible.
3.What about the lead time for mass production?
----It mainly depends on the order quantity and the season you place the order. Generally , order products in advance,arrange in
advance.
4.Can I have a visit to your factory before the order?
----Of course! Welcome! Our factory address: A NO. 258. Wei Eleven Road, Yueqing Economic Development Zone, Yueqing City, Zhejiang
Province, P.R. China.
5.What's your shipment method?
----We ship by Express, by air, by sea, by train. We check and compare different methods and also consider the views of our
customers , then chose the most suitable one.
6.How to order our product ?
----First need tell us the model and quantity and other request you need.
----Second we make the PI.
----Third you confirm the PI and pay the order ,we arrange the goods for you.
----Fourth when the goods are ready , we tell you the tracking number.
7.If I want to release order, what's the payment method you accept ?
----We accept T/T, Paypal, L/C,etc.
----After price confirmation, pay the sample charge and send us confirm files, it will be ready for delivery in 3-5 days.
----You can use your own express account or prepay us if you do not have an account.
2.Can you do the design for us?
----Yes. Send us images, Logo, text and tell us how you would like to arrange them.We will see if we can meet your needs and
answer you as soon as possible.
3.What about the lead time for mass production?
----It mainly depends on the order quantity and the season you place the order. Generally , order products in advance,arrange in
advance.
4.Can I have a visit to your factory before the order?
----Of course! Welcome! Our factory address: A NO. 258. Wei Eleven Road, Yueqing Economic Development Zone, Yueqing City, Zhejiang
Province, P.R. China.
5.What's your shipment method?
----We ship by Express, by air, by sea, by train. We check and compare different methods and also consider the views of our
customers , then chose the most suitable one.
6.How to order our product ?
----First need tell us the model and quantity and other request you need.
----Second we make the PI.
----Third you confirm the PI and pay the order ,we arrange the goods for you.
----Fourth when the goods are ready , we tell you the tracking number.
7.If I want to release order, what's the payment method you accept ?
----We accept T/T, Paypal, L/C,etc.
