Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
compere
-
Supplier Type:
-
Whole set
-
Product Name:
-
Wireless transmitter and receiver modbus MQTT IEC104 gsm gateway price
-
Material:
-
Metal
-
Size:
-
100*100*122mm
-
Installtion:
-
Wall mounted
-
Weight:
-
0.6kg
-
Accessories:
-
DC power supply, circuit breaker, wire, DIN rail, etc
-
Customization:
-
Other size are choosable as u need
-
Features:
-
Easy to install
-
Other function:
-
communication cabinet
Quick Details
-
Chipset:
-
ARM9
-
Application:
-
data communication, Data transmission communication converter
-
Model Number:
-
KPM201
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
compere
-
Supplier Type:
-
Whole set
-
Product Name:
-
Wireless transmitter and receiver modbus MQTT IEC104 gsm gateway price
-
Material:
-
Metal
-
Size:
-
100*100*122mm
-
Installtion:
-
Wall mounted
-
Weight:
-
0.6kg
-
Accessories:
-
DC power supply, circuit breaker, wire, DIN rail, etc
-
Customization:
-
Other size are choosable as u need
-
Features:
-
Easy to install
-
Other function:
-
communication cabinet
Product Overview
Industrial iot wireless transmitter and receiver modbus MQTT IEC104 gsm gateway price
This KPM201
Industrial modbus MQTT IEC104 gsm gateway price
is used for reading data from smart meters, power distribution protection devices,automatic devices, monitoring and other intelligent devices and send data to computer systems, power grid automation system to achieve the data converter and exchange of information forming a fully decentralized RTU communication system.
Details Images

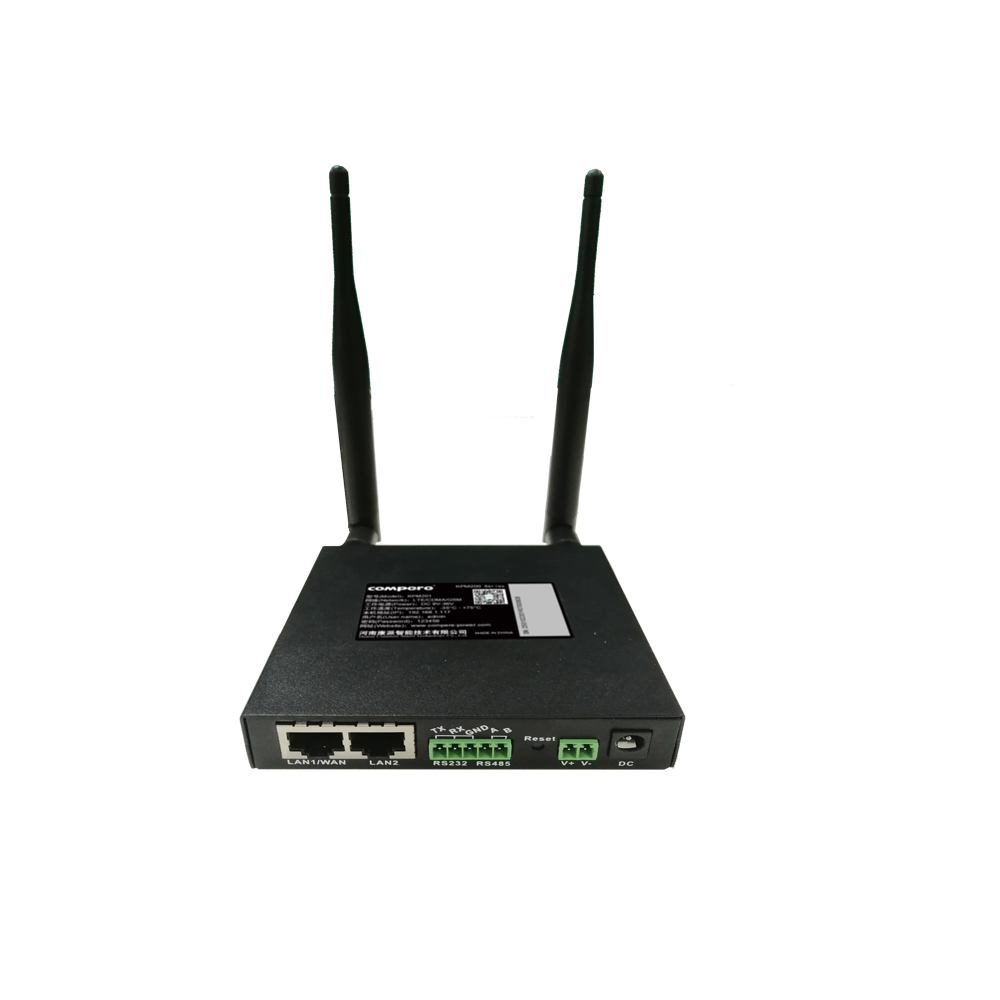

KPM201
modbus MQTT IEC104 gsm gateway price
adopts OpenWrt routing system design in embedded linux system, provides 1 RS458 and 1 RS232, 2 Ethernet ports, supports wireless 4G and WiFi communication, supports multiple communication methods and different communications Protocol.
The gateway has indicator lights to provide users with direct observation, supports efficient completion of large-scale device network deployment, supports rail and desktop installation. It is fully industrialized for harsh conditions.
Low power consumption, high performance, easy installation, etc., suitable for data collection and communication, industrial control, gateway routing and other occasions.
The gateway has indicator lights to provide users with direct observation, supports efficient completion of large-scale device network deployment, supports rail and desktop installation. It is fully industrialized for harsh conditions.
Low power consumption, high performance, easy installation, etc., suitable for data collection and communication, industrial control, gateway routing and other occasions.
|
KPM201 industrial IEC104 modbus gateway Specifications
|
|
|
||
|
Working power
|
Rated voltage
|
DC 5~36V
|
||
|
|
Power consumption
|
<3VA
|
||
|
Capacity index
|
LAN
|
2* 10/100M RJ45 interface
|
||
|
|
Serial port
|
1 * RS485 port +1 * RS232
|
||
|
|
Communication master station protocols
|
<16/pc
|
||
|
|
Transmission mode
|
Full or half duplex
|
||
|
Performance index
|
Dual machine switching time
|
<5s
|
||
|
|
MTBF
|
>50000h
|
||
|
|
Status indication
|
Panel LED, reflecting the serial port data transmission and reception status
|
||
|
Protocol
|
Downlink protocol
|
Modbus-RTU,Modbus-TCPIP,DLT645_1997,DLT645_2007
|
||
|
|
Uplink protocol
|
IEC104 Deliver , InSqlModbusSlave,ModbusSlaveST
|
||
|
EMC
|
Fast pulse group immunity
|
IEC61000-4-5, level 3
|
||
|
|
Surge immunity
|
IEC61000-4-2, level 3
|
||
|
|
Electrostatic immunity
|
IEC61000-4-4, level 3
|
||
|
Working environment
|
Ambient temperature
|
-25℃~+70℃
|
||
|
|
Relative humidity
|
5%~95%, no condation
|
||
|
|
Storage temperature
|
-30℃~+75℃
|
||
|
Mounting size
|
Mounting type
|
Wall, DIN rail, panel mounted
|
||
|
|
Size L×W×H
|
100mm×100mm×23mm, total 0.6kg
|
||
Features of industrial modbus rtu wifi gateway
* Support 4G LTE CAT4 high-speed network
* Support WLAN
* With 2 Ethernet ports
* Support multiple VPN functions
* Support wired and wireless mutual backup
* Support the efficient completion of large-scale equipment network deployment
* Support rail and desktop installation
* Support 4G LTE CAT4 high-speed network
* Support WLAN
* With 2 Ethernet ports
* Support multiple VPN functions
* Support wired and wireless mutual backup
* Support the efficient completion of large-scale equipment network deployment
* Support rail and desktop installation
