Quick Details
-
Weight (KG):
-
1000 KG
-
Power (kW):
-
13
-
End products diameter:
-
75*75mm to 145*145mm
-
Material moisture:
-
Not extend 15%
-
End products shape:
-
With hole and without hole in center
-
Name:
-
pallet making machine
-
Application:
-
making wood pallet
-
Product name:
-
wood pallet
-
Raw material:
-
wood powder
-
Type:
-
Full-automatic
-
Usage:
-
Making Wood Pallet
-
Warranty period:
-
12 months
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
VIC
-
Machine Type:
-
wood press
-
Weight (KG):
-
1000 KG
-
Power (kW):
-
13
-
End products diameter:
-
75*75mm to 145*145mm
-
Material moisture:
-
Not extend 15%
-
End products shape:
-
With hole and without hole in center
-
Name:
-
pallet making machine
-
Application:
-
making wood pallet
-
Product name:
-
wood pallet
-
Raw material:
-
wood powder
-
Type:
-
Full-automatic
-
Usage:
-
Making Wood Pallet
-
Warranty period:
-
12 months
Wood Pallet Machine
Introduction:
1.Wood pallet making machine is used to make the block for the pallet which is used into the transportation from sawdust, wood shaving and others wood waste;
2.Middle and around is heated evenly, high strength. The end pallet block is smooth surface and waterproof, durable for use. It could soaked in water 48 hours without cracking;
3.The end pallet block's size can be made according to customer's requirement, size range from 75*75mm to 145*145mm; One machine can make two different sizes block.
The production line of the compressed wood pallet machine:
(1)Wood crusher: If the material is bigger than 5*5mm, we advice first crush into small pieces
(2)Dryer machine: If the raw material moisture is bigger than 15%, should use one dryer machine to dry them
(3)Glue mixer: Use the glue mixer to mix the material with glue
(4)Wood pallet machine: Make wood pallet block .
Main data :
|
Model |
Power (KW) |
Capacity(m3/24h) |
Weight (kg) |
Machine size (mm) |
|
MD/75*75 |
13 |
2 |
1000 |
5000*600*1300 |
|
MD/80*100 |
13 |
2 |
1000 |
5000*600*1300 |
|
MD/80*120 |
13 |
2.2 |
1050 |
5000*600*1300 |
|
MD/90*90 |
13 |
2 |
1000 |
5000*600*1300 |
|
MD/90*140 |
13.5 |
2.4 |
1100 |
5000*600*1300 |
|
MD/100*100 |
13 |
2.2 |
1050 |
5000*600*1300 |
|
MD/100*115 |
13 |
2.3 |
1080 |
5000*600*1300 |
|
MD/100*140 |
13.5 |
2.5 |
1120 |
5000*600*1300 |
|
MD/140*140 |
15 |
3 |
1350 |
5000*600*1300 |

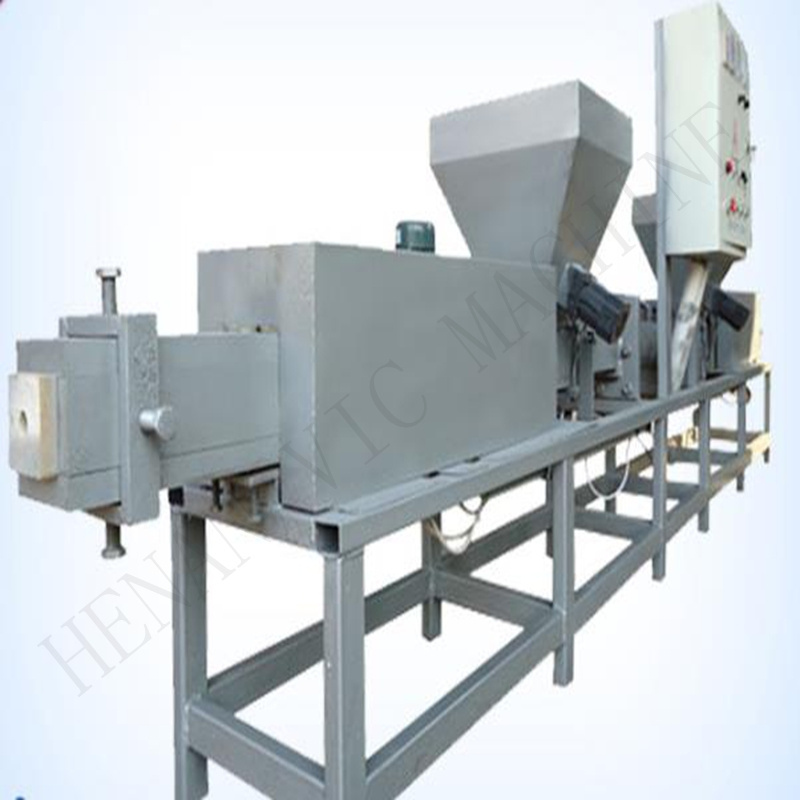

Machine photo:
Photos of end products :
All our package are standard fumigated wooden box, we need around 5 working days to finish the machine and ready to deliver. If want extra spare parts pls notify when place order
Quality guarantee terms:
Quality guarantee is one year. Spare parts we supply at factory cost lifetime.
We will be responsible for any broken which are caused by machine-self and quality problem, other situations which are caused by wrong operation, man-made problems etc will be in buyer’s response, and we will help to solve by video asap, if big problem we will send engineer to working site within 1 week.
