Quick Details
-
Brand Name:
-
Ascend
-
Dimension(L*W*H):
-
1150x1275x1240mm
-
Weight:
-
3000 KG
-
Marketing Type:
-
Hot Product 2024
-
Product name:
-
impact crusher
-
Keyword:
-
fine stone impact crusher
-
type:
-
limestone crusher
-
Spare parts supply:
-
Lifelong Time
Quick Details
-
Application:
-
Quarry
-
Capacity(t/h):
-
40-850TPH
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Ascend
-
Dimension(L*W*H):
-
1150x1275x1240mm
-
Weight:
-
3000 KG
-
Marketing Type:
-
Hot Product 2024
-
Product name:
-
impact crusher
-
Keyword:
-
fine stone impact crusher
-
type:
-
limestone crusher
-
Spare parts supply:
-
Lifelong Time

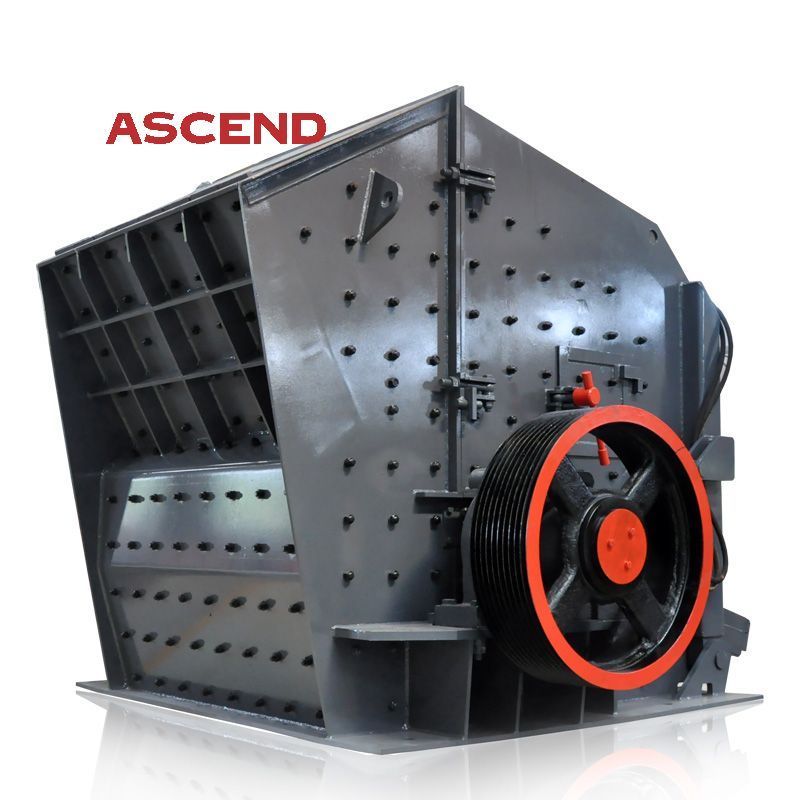

PF 1010 1214 1315 Impact crusher
Impact crushers are ideal for crushing medium hard brittle materials of coarse, secondary and fine crushing stages, such as limestone, dolomite, sandstone, graphite, rock salt, granite and basalt. Impact crusher have high reduction ratio, unequaled output, uniform production size, compact process, simple construction, easy operation and maintenance.
Working principle
The feed enters the primary crushing chamber and meets the breaker bars which impel the feed against the front breaker plate. This action and the collision of material against new feed results in impact reduction. Material is sufficiently reduced in the primary chamber and passed by the front breaker plate, entering the secondary chamber for final reduction. Breaker plates are shaft suspended at the front and from a spindle in the rear, allowing for continuous gap adjustment as wear progresses and assuring superior product control.
| Model | Size of rotor (mm) |
Feed opening
(mm) |
Max. feed
size (mm) |
Capacity (t/h) |
Power of
Motor (kW) |
Weight (t) |
| PF1010 | Φ1000×1050 | 400×1080 | 350 | 50-80 | 75 | 12.5 |
| PF1210 | Φ1250×1050 | 400×1080 | 350 | 70-130 | 110 | 16.5 |
| PF1214 | Φ1250×1400 | 400×1430 | 350 | 90-180 | 132 | 19 |
| PF1315 | Φ1320×1500 | 860×1520 | 500 | 120-250 | 200 | 24 |
| PF1320 | Φ1320×2000 | 860×2030 | 500 | 160-350 | 260 | 27 |
Adantage of Impact crushers
- High reduction ratios up to 30:1
- Cubical gravel crusher with high crush count.
- Selective crushing by speed and breaker plate adjustment
- Interchangeable wear parts
- Capacities from 5 to 1,600 TPH
- Available with front or rear opening housings
- Feed sizes up to 16”
- One-man changeout of breaker bars
PF impact crusher is usually used as secondary or tertiary crusher to crusher the not less harder materials with Mosh hardness less than
5.5, the following materials is the favourite of impact crusher.
|
|
Besides supply complete impact crusher machine, we also supply impact crusher spare parts, including impact plates, side plates, impact hammer or blow bar.
Contact Us
Q1: Are you trading company or manufacturer?
A: We are factory.
Q2: How long is your delivery time?
A: Generally it is 7-10 days if the goods are in stock. or it is 15-30 days if the goods are not in stock, it is according to quantity.
Q3: What is your payment method?
A: 30% of total price should be paid by T/T as down payment; 70% balance payment should be paid by T/T before delivery.
Q4: What Information should customers give us, So that we can be able to provide you suitable quotation and service.
What minerals are you separating?
What's the maximum size of your raw minerals?
How much capacity do you need per hour for your project?
A: The warranty period of crusher equipments is one year. and we will supply the spare parts for you at lowest cost.
