Quick Details
-
Type:
-
door seal strip
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
HONGJIAN
-
Model Number:
-
HJ-051(20)
-
Product name:
-

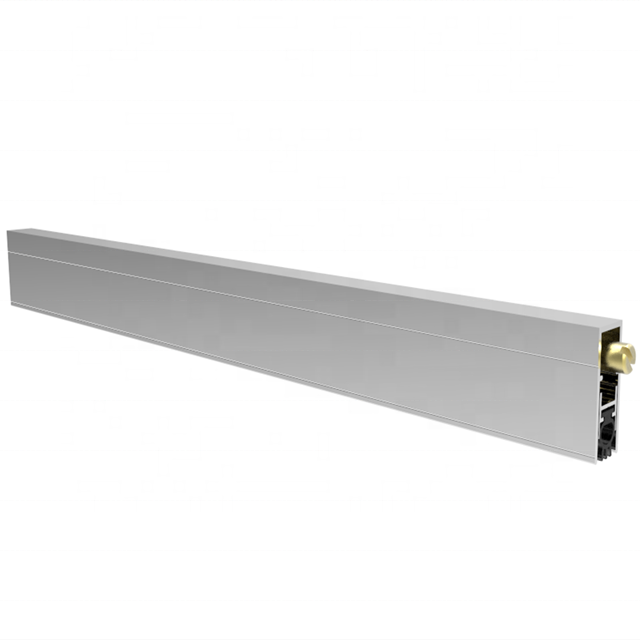

wooden door sealing strip
-
Material:
-
Aluminum alloy/steel/nylon
-
Color:
-
silver
-
Keywords:
-
sealing strip door
-
Usage:
-
Auminium
-
Function:
-
Dustproof Insectproof Soundproof
-
Size:
-
Custom Size
-
Feature:
-
Easy Installation
-
Packing:
-
Carton
Quick Details
-
Project Solution Capability:
-
graphic design, 3D model design, total solution for projects, Cross Categories Consolidation, Others
-
Application:
-
Hotel
-
Design Style:
-
Modern
-
Type:
-
door seal strip
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
HONGJIAN
-
Model Number:
-
HJ-051(20)
-
Product name:
-
wooden door sealing strip
-
Material:
-
Aluminum alloy/steel/nylon
-
Color:
-
silver
-
Keywords:
-
sealing strip door
-
Usage:
-
Auminium
-
Function:
-
Dustproof Insectproof Soundproof
-
Size:
-
Custom Size
-
Feature:
-
Easy Installation
-
Packing:
-
Carton
Product Description
Concealed installation steps
1. First flatten the groove at the center of the thickness of the lower end of the door
(Width 14.5mmX Height 34.5mm) (Figure 1) Then open a 2mm deep groove (width 22mmX height 66mm) at the center of the thickness on both sides of the lower end of the door (Figure 2)
2. As shown in Figure 3, measure the width of the outer surface of the door between the door frames
3. Cut the length of the door bottom sealing strip according to 4mm shorter than the measured size. If there is a sealed door strip longer than the width of the door, first observe the distance of the internal mechanical parts of the tail, and cut off the tail appropriately.
(Regular length is greater than800mm, please contact the merchant if it is less than 800mm)
4. Insert the intercepted door seal completely into the groove, and then use the provided screws to fix the door seal on the door with a sealing sheet.
(The copper grain is on the side of the hinge, and the perforated sealing piece is on the copper grain side, as shown in Figure 456)
5. Gently open and close the door, observe whether the performance of the door seam and door strip meets the normal standard, and adjust the copper particles to achieve the most suitable effect. Seeing that the seal is slowly popping out to connect with the ground, if you want to be more compact, you only need to turn the adjusting copper particle outward by half a turn each time to play the role of sealing. (Figure 7)
Specification
|
Product Features
|
|
|
|
Main material
|
aluminum alloy, steel, nylon
|
|
|
Scope of application
|
1. Wooden sliding door
2. Suitable for single and double door sliding
|
|
|
Isolate smoke, prevent the spread of the fire, sound insulation, prevent mosquitoes, wind and snow enter through the crack of the door.
|
|
|
|
Easy to install, new and old doors can be installed by themselves at any time.
|
|
|
|
Especially suitable for hotel, office and residential use.
|
|
|
|
Function Features
|
|
|
|
When the door is opened, the sealing strip automatically retracts, and when the door is closed, it pops down by the pressure of the door frame on the adjusting screw and sticks to the ground.
|
|
|
|
Product Usage
|
|
|
|
1.It can prevent rats, snakes, cockroaches, flying mosquitoes and all kinds of insects from invading without using toxic materials
|
|
|
|
2.Effectively prevent the infiltration of outdoor cold current and wind and rain
|
|
|
|
3.Reduce the loss of heating and cooling and improve the efficiency of electrical use to eliminate unnecessary waste
|
|
|
|
4.Suitable for stainless steel, aluminum, wooden doors, automatic doors and sound insulation of conference rooms
|
|
|
|
5.It can be soundproof, heat-insulated and dust-proof to create a quiet and healthy living environment
|
|
|
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
