Quick Details
-
Brand Name:
-
EPEVER
-
Model Number:
-
VS6024BN
-
Work Time (h):
-
24
-
Max PV Power:
-
1500W
-
Max PV Voltage:
-
60V
-
Certificate:
-
CE RoHs
-
Warranty:
-
1 year
-
Product name:
-
PWM Solar Controller
-
System voltage:
-
12/24V Auto work
-
Maximum Battery Voltage:
-
32V
-
Rated Current:
-
60A
-
Net Weight:
-
1.3KG
-
Dimension:
-
205*129*67mm
-
Enclosure:
-
IP30
-
Grounding:
-
Negative to the ground
-
Working Temperature( C):
-
-25℃~+55℃
-
Relative humidity:
-
≤95% (N.C.)
Quick Details
-
Type:
-
PWM
-
Application:
-
Charger Controller, Solar Working Station, Voltage Controller, Solar System Controller
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
EPEVER
-
Model Number:
-
VS6024BN
-
Work Time (h):
-
24
-
Max PV Power:
-
1500W
-
Max PV Voltage:
-
60V
-
Certificate:
-
CE RoHs
-
Warranty:
-
1 year
-
Product name:
-
PWM Solar Controller
-
System voltage:
-
12/24V Auto work
-
Maximum Battery Voltage:
-
32V
-
Rated Current:
-
60A
-
Net Weight:
-
1.3KG
-
Dimension:
-
205*129*67mm
-
Enclosure:
-
IP30
-
Grounding:
-
Negative to the ground
-
Working Temperature( C):
-
-25℃~+55℃
-
Relative humidity:
-
≤95% (N.C.)

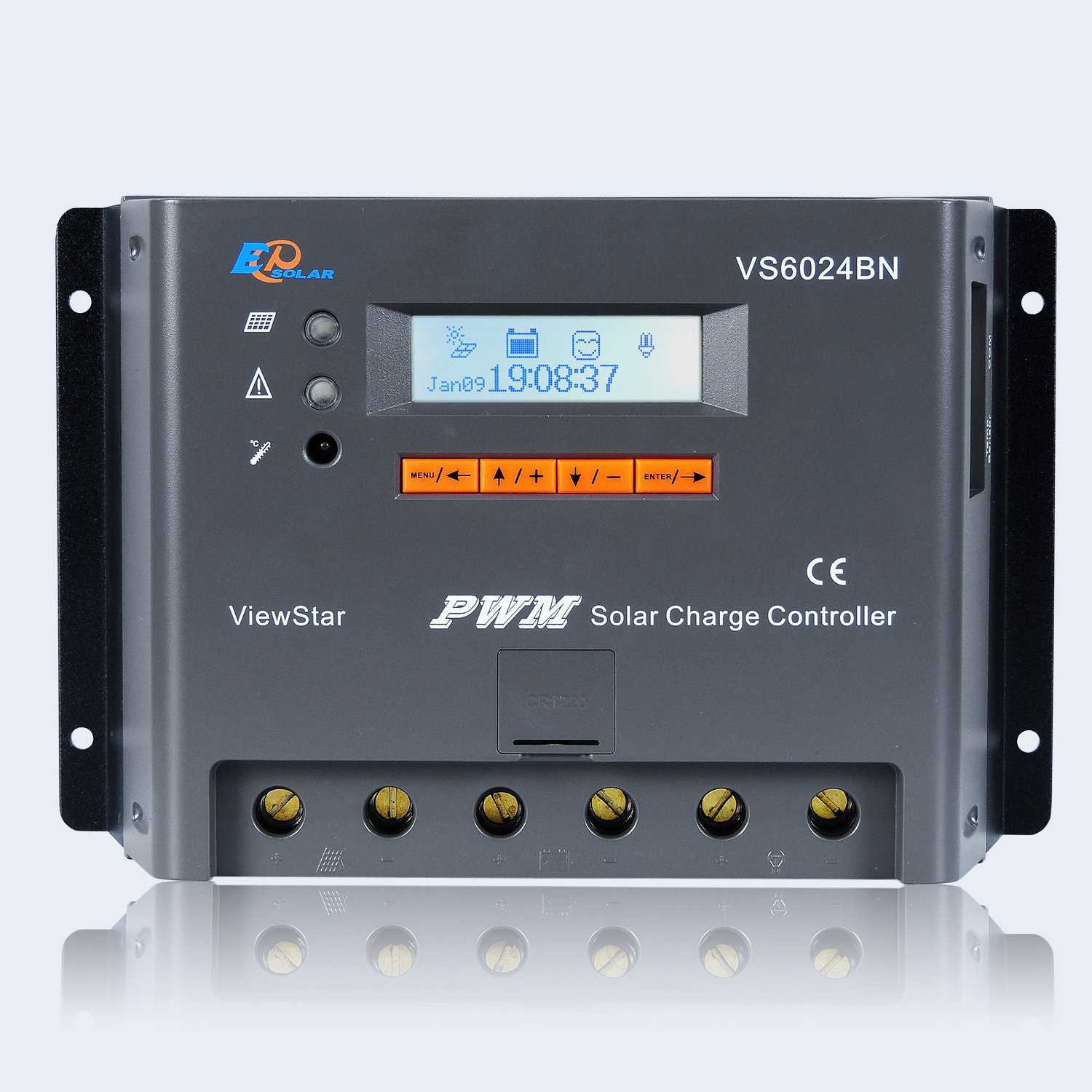

Product Description
Thank you for selecting ViewStar series solar charge controller that adopts the most advanced digital technique, displays on the LCD and operates fully automatically. The Pulse Width Modulation (PWM) battery charging and the unique control technology can greatly increase the lifetime of battery. It has various unique functions and easy to use.
Features:
* 32 bit MCU with high speed and high performance
* 12 bit A/D high-precision sampling to ensure accuracy
* Nominal system voltage automatic recognition
* High efficient Series PWM charging, increase the battery lifetime and improve the solar system performance
* Use MOSFET as electronic switch, without any mechanical switch
* Widely used, automatically recognize day/night
* Adopt graphics dot-matrix LCD screen and HMI (human-machine interface) with 4 buttons, complete menu display and operation
* Humanized design of browser interface, undertake every kinds of operating conveniently
* Full control parameters setting and modification, diversified load control mode
* Gel, Sealed and Flooded battery type option
* Adopt temperature compensation, correction algorithm for charging and discharging parameters automatically and improve the battery lifetime
* Electronic protection: Overheating, over charging, over discharging, overload, and short circuit.
* Reverse protection: any combination of solar module and battery.
* 32 bit MCU with high speed and high performance
* 12 bit A/D high-precision sampling to ensure accuracy
* Nominal system voltage automatic recognition
* High efficient Series PWM charging, increase the battery lifetime and improve the solar system performance
* Use MOSFET as electronic switch, without any mechanical switch
* Widely used, automatically recognize day/night
* Adopt graphics dot-matrix LCD screen and HMI (human-machine interface) with 4 buttons, complete menu display and operation
* Humanized design of browser interface, undertake every kinds of operating conveniently
* Full control parameters setting and modification, diversified load control mode
* Gel, Sealed and Flooded battery type option
* Adopt temperature compensation, correction algorithm for charging and discharging parameters automatically and improve the battery lifetime
* Electronic protection: Overheating, over charging, over discharging, overload, and short circuit.
* Reverse protection: any combination of solar module and battery.
Specification
|
Model Number
|
VS6024BN
|
|
Type
|
PWM
|
|
Work Time (h)
|
24
|
|
System voltage
|
12V/24V Auto work
|
|
Rated Current
|
60A
|
|
Working Temperature( C)
|
-25℃~+55℃
|
|
Net Weight
|
1.3kg
|
|
Dimension
|
205*139*67mm
|
|
Enclosure
|
IP30
|
|
Warranty
|
1 year
|
|
Grounding
|
Negative to the ground
|
