Quick Details
-
Voltage:
-
can be customized
-
Dimension(L*W*H):
-
depend on the model
-
Weight:
-
1000 KG
-
Product name:
-
minerals ore process Machine
-
Usage:
-
minerals concentrate
-
Processed materials:
-
River Gravel,Ore,etc
-
Test&Installation:
-
Senior Professional Engineers Assigned
-
Spare parts supply:
-
Lifelong Provide
-
Factory visit:
-
Welcomed Warmly
Quick Details
-
Production Capacity:
-
1-200tons per hour
-
Place of Origin:
-
Jiangxi, China
-
Brand Name:
-
jxsc
-
Voltage:
-
can be customized
-
Dimension(L*W*H):
-
depend on the model
-
Weight:
-
1000 KG
-
Product name:
-
minerals ore process Machine
-
Usage:
-
minerals concentrate
-
Processed materials:
-
River Gravel,Ore,etc
-
Test&Installation:
-
Senior Professional Engineers Assigned
-
Spare parts supply:
-
Lifelong Provide
-
Factory visit:
-
Welcomed Warmly
Product Description
Overview
The ore dressing technology of chrome ore mainly has Gravity separation process, the chrome ore mining equipment are jig separator, shaking table, spiral classifier, centrifugal concentrator and spiral chute, and sometimes the concentrate will be selected by weak magnetic separator or high intensity magnetic separator to further improve the grade of chromium concentrate and the ratio of chromium iron. Besides, some mines will also use flotation and flocculation flotation methods. But the most popular and common used mining method is by gravity and magentic separation for the chrome ore mining equipment.
The selection of chrome ore mining equipment is closely related to the physical and chemical properties of chromium ore. Because chromite is weakly magnetic, with the continuous improvement of high intensity magnetic separation technology, the technology of purifying chromium ore with high intensity magnetic separation has been very mature. Moreover, because the magnetic separation process has no pollution to the environment, the chrome ore magnetic separation technology has been popularized and applied in the major mineral processing plants.
JXSC mine machinery Company in China has more than 30 years professional experience at chrome ore processing plant, design full set chrome ore process flowchart , provide complete set chrome ore mining equipment, can send engineer to mine site for mining equipment installation and commissioning guidance. Have already built many chrome ore processing plant in Africa countries. Include: South Africa, Zimbabwe, Madagascar, Albania, India, Philippines,kazakhstan,Russia, China,ect.
Alluvial/sand Chrome ore processing plant ▼
Feeding->washing->sieving->primary gravity separation -> 2nd stage gravity concentration->magnetic separation for upgrading
Chrome ore Feeding:
can be vibration feeding machine, feeding hopper, belt feeder, wheel loader or excavator feed directly. Usually will make grizzly bar on vibration feeder or hopper to remove big waste stones firstly. Depends on process capacity to choose suitable chrome ore mining equipment.
Chrome ore Washing:
the chrome ore washing machine is for washing clean the clay and mud in raw material, most popular used are chrome ore washing trommel scrubber and chrome ore washing trommel screen. Chrome ore trommel scrubber washer is for washing chrome ore raw material that with many sticky clay, chromite ore washing trommel screen is for wash chromite ore raw material that without much sticky clay. Depends on raw material conditions to choose suitable chrome ore washing equipment.
Rock type Chrome ore processing plant, the flowchart can be as below ▼
Feeding-> crushing->grinding->primary separation -> final concentration-> upgrading
The feeding way, primary separation, final concentration and chrome ore refining process are almost the same as above
alluvial/sand chromite ore processing plant.
alluvial/sand chromite ore processing plant.
Below are the crushing and grinding stage description for rock chrome ore processing plant:
Crushing:
for crushing the big rock chrome ore stone to smaller size before grinding.
crushers can be rough rock chrome ore jaw crusher, rock chrome ore fine jaw crusher, rock chrome cone crusher, rock chrome hammer crusher, roller crusher rock, depends on the rockchrome ore feeding size and process capacity to use which kind crusher.
Grinding:
after crush the stone to smaller size, need to grind to power by chrome ore ball mill grinding machine or wet pan mill or other rock grinding machine, so the chrome concentrate can released out from stone. Then go to chrome ore separation machine and concentration machine.( chrome ore shaking table, chrome ore spiral chute, chrome ore jig separator,ect)
Main Products ▼
Successful Cases
5TPH Rock Chrome Ore Concentration Plant in Alabania
Chrome Ore Mining Process:

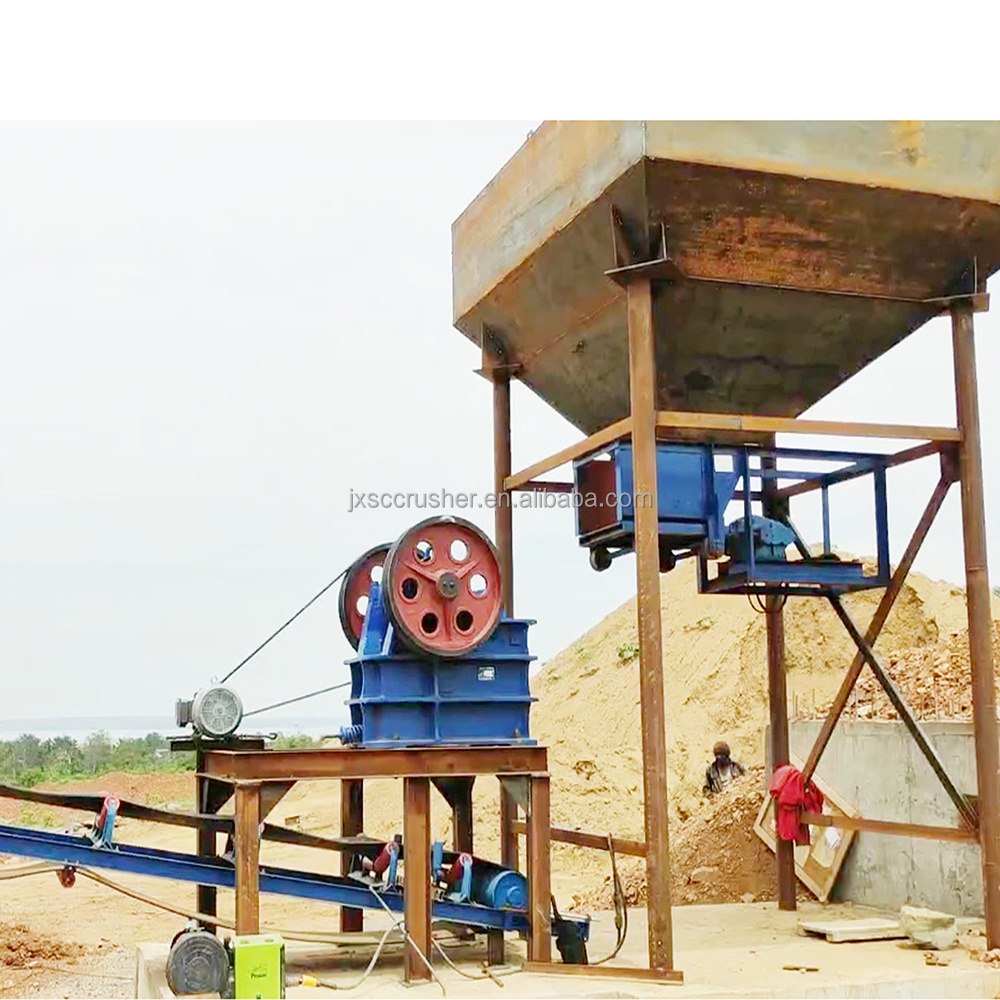

First use hopper and vibration screen feeding stone chrome to preliminary crusher, then to fine crusher, Then use belt conveyor to a hopper, underside the hopper has a feeder, feeder 0-20mm size to ball mill, ball mill working together with spiral classifier, then get 0-1mm size to shaking table, shaking table also have two stages, one for preliminary, one for fine.
This Chrome Ore Mining processing line is for our Albania customer, The Chrome wash plant capacity is for 10 tons per hour, Feeding size is for 300mm, the feeding size is big, so need a two-stage jaw crusher, use two-stage jaw crusher can get the 0-20mm size. The spiral classifier is for classifier ball mill output material, 0-1mm size to shaking table, and +1mm to ball mill grinding again. The shaking table also has two stages, so this line has added a hydraulic box to feeding material to shaking table, the hydraulic box also can separator different size, the different size to different shaking table, course deck, fine sand deck, slime deck, use the different deck to get the highest recovery rate.
Our engineer goes to the customer chromium ore mining site for install and debug. It has used one month to finish all of the machines install and debug, to confirm all chrome washing machine operation regularly. Our factory also do sample test, it can send a sample to our factory for test, also our engineer can go your mine site to inspect and take sample for test. Chrome processing flow chart design is available, contact us to get the Chrome process flow sheet PDF. Welcome to visit our JXSC mining equipment machinery factory. We cooperate with many chrome ore mining companies in South Africa, been in the chrome spiral plant business since 1985, have won a good name in the chrome mining industry, chrome wash plant for sale.
For chrome ore beneficiation, China’s chrome ore processing equipment industry relatively mature mining machinery, chrome ore processing machinery, chrome ore crushing machinery, chrome ore grinding machinery, sand-making machinery, chrome washing machine, chrome ore screening machinery, chrome mining equipment, mining feeder machinery, supporting equipment and other equipment chrome ore. besides, we can according to different chrome mining methods and conditions to give professional chrome ore beneficiation process advice.
15TPH Chrome Ore Beneficiation Process in Ukraine
Material: rock type chrome ore
Capacity: 15TPH
Country: Ukraine
Feeding size: 150mm
Mineral condition description: in raw ore 15-22%Cr2O3
Customers requirements:
1. Chromite concentrate with 45-52% of Cr2O3
2. And wastes could be with 3-6% of Cr2O3 – we (customer) will treat wastes by chemicals, get the again chromite concentrate (30-35% of Cr2O3, other SiO2) and back this chemical concentrate to magnetic separation.
20TPH Ferrochrome Slag Recovery Plant in South Africa
Equipment Used in The Recovery of Ferrochrome Slag
Hopper
Electromagnetic Vibrating Feeder
Hammer Crusher
Belt Conveyor
Shaking Tables
Jig Separator
Dewatering Screen
Flowchart Description This processing plant is for the slag to recovery the Ferrochrome.
The process is as below:
1. The wheel loader or excavator feeds the raw slag to the hopper. There is an Electromagnetic vibration feeder under the hopper, which can feed the material to the belt conveyor more evenly.
2. The client requires iron removal equipment to remove the big Fe slag first.
3. The material will be fed into hammer crusher by belt conveyor, using hammer crusher for crushing the big slag into fine particles 3mm.
4. The output size can be adjusted based on your requirement.
4. The output size can be adjusted based on your requirement.
5. The output from the hammer crusher goes to the jig separator for catching concentrates first.
6. The under-screen from the jig separator goes to the shaking table for separation again, to improve the grade.
7. The tailings from the jig separator and shaking table will go to the dewatering screen for dewatering water.
The required processing capacity for this flowsheet is 20 tons per hour input feeding capacity. while any capacity is ok.
Different mine situations and different requirements, the solution will be different.
Different mine situations and different requirements, the solution will be different.
Chrome Ore Beneficiation Process in Zimbabwe
Packaging & Delivery
|
1.Small parts packed in the wooden cases.
|
|
2.Big parts packed by plastic membrane.
|
|
3.The whole big machine is loaded in the container.
|
Company Introduction
JXSC mine machinery factory located in Jiangxi province. we are a professional company providing complete set processing equipments for Gold ore /Tin ore /Tungsten ore /Iron ore / Diamond/ Coltan ore / Silica sand / Zircon sand/ Black sand/Chrome ore, ect.
1.+30years history factory at mining machinery
2.Provide engineer team after sale service
3.Provide complete set mineral processing plant
4.Provide sample testing service in factory lab for free
5.Provide professional mining solution consulting
1. Inquiry and consulting support.
2. Ore sample testing support.
3. View our Factory.
4. Design Flowchart.
1. Training how to instal the machine, training how to use the machine.
2. 1 year warranty .
3. Engineers available to service machinery overseas.
FAQ
1.How is the quality of your products?(mining equipment/machine)
Answer: Our products are manufactured strictly according to national and international standard, and we will do a test on every machine before delivery.
1. Which machine do you need? like gold washing machine, spiral chute, vibrating screen, Jig separator, Shaking table, etc.
2. What is your raw ore that you plan to process? like gold ore, diamond ore, tantalite or silica sand, etc.
3. What is the capacity you need? Like 10 tones per hour.
4. What is the feeding size to the machine? and what is the discharging-material size that you require?
Sincerely welcome to send your inquiry,you can get best quotation and professional service.
Answer: Our products are manufactured strictly according to national and international standard, and we will do a test on every machine before delivery.
2.Guaranteed?
Answer: All of our products are guaranteed for one year. If products quality is not consistent with the description or promise we made before you place order, we promise 100% refund.
3.How about price?
Answer: For the complete same machine, we can promise our quality is the best when the price same as other competitors, and our price can be lowest when the quality at standard level.
4.Service and Payment Terms?
Answer: We can accept T/T and L/C; 30% deposit, 70% balance before factory delivery, which is international trade practice; Finished product pictures will be provided to customers before delivery.
If you are interested in our products, please don't hesitate to contact us. Could you tell me the following questions, so that I can give you a complete solution, including best Exw-works Price Quotation!
Answer: All of our products are guaranteed for one year. If products quality is not consistent with the description or promise we made before you place order, we promise 100% refund.
3.How about price?
Answer: For the complete same machine, we can promise our quality is the best when the price same as other competitors, and our price can be lowest when the quality at standard level.
4.Service and Payment Terms?
Answer: We can accept T/T and L/C; 30% deposit, 70% balance before factory delivery, which is international trade practice; Finished product pictures will be provided to customers before delivery.
If you are interested in our products, please don't hesitate to contact us. Could you tell me the following questions, so that I can give you a complete solution, including best Exw-works Price Quotation!
1. Which machine do you need? like gold washing machine, spiral chute, vibrating screen, Jig separator, Shaking table, etc.
2. What is your raw ore that you plan to process? like gold ore, diamond ore, tantalite or silica sand, etc.
3. What is the capacity you need? Like 10 tones per hour.
4. What is the feeding size to the machine? and what is the discharging-material size that you require?
Sincerely welcome to send your inquiry,you can get best quotation and professional service.
