Quick Details
-
Lamp Body Material:
-
Aluminum Alloy
-
Lamp Luminous Flux(lm):
-
1200LM
-
Input Voltage(V):
-
1.2V~3.7V
-
Lamp Luminous Efficiency(lm/w):
-
1200lm
-
Working Time (hours):
-
48H
-
Product Weight（kg）:
-
0.21
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
LuminTop
-
Model Number:
-
AD1
-
zoomable:
-
No
-
Waterproof:
-
IP68 standard waterproof (1.5 meters submersible)
-
Size:
-
42*39*116mm
-
Ranges:
-
230~650 meters
-
Peak beam intensity:
-
105625 cd (Max)
-
Weight:
-
210g
-
power:
-
5w(max)
-
Certification:
-
ce rosh
Quick Details
-
Battery Type:
-
AAA
-
Usage:
-
Camping
-
Power Source:
-
DRY BATTERY
-
Lamp Body Material:
-
Aluminum Alloy
-
Lamp Luminous Flux(lm):
-
1200LM
-
Input Voltage(V):
-
1.2V~3.7V
-
Lamp Luminous Efficiency(lm/w):
-
1200lm
-
Working Time (hours):
-
48H
-
Product Weight（kg）:
-
0.21
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
LuminTop
-
Model Number:
-
AD1
-
zoomable:
-
No
-
Waterproof:
-
IP68 standard waterproof (1.5 meters submersible)
-
Size:
-
42*39*116mm
-
Ranges:
-
230~650 meters
-
Peak beam intensity:
-
105625 cd (Max)
-
Weight:
-
210g
-
power:
-
5w(max)
-
Certification:
-
ce rosh

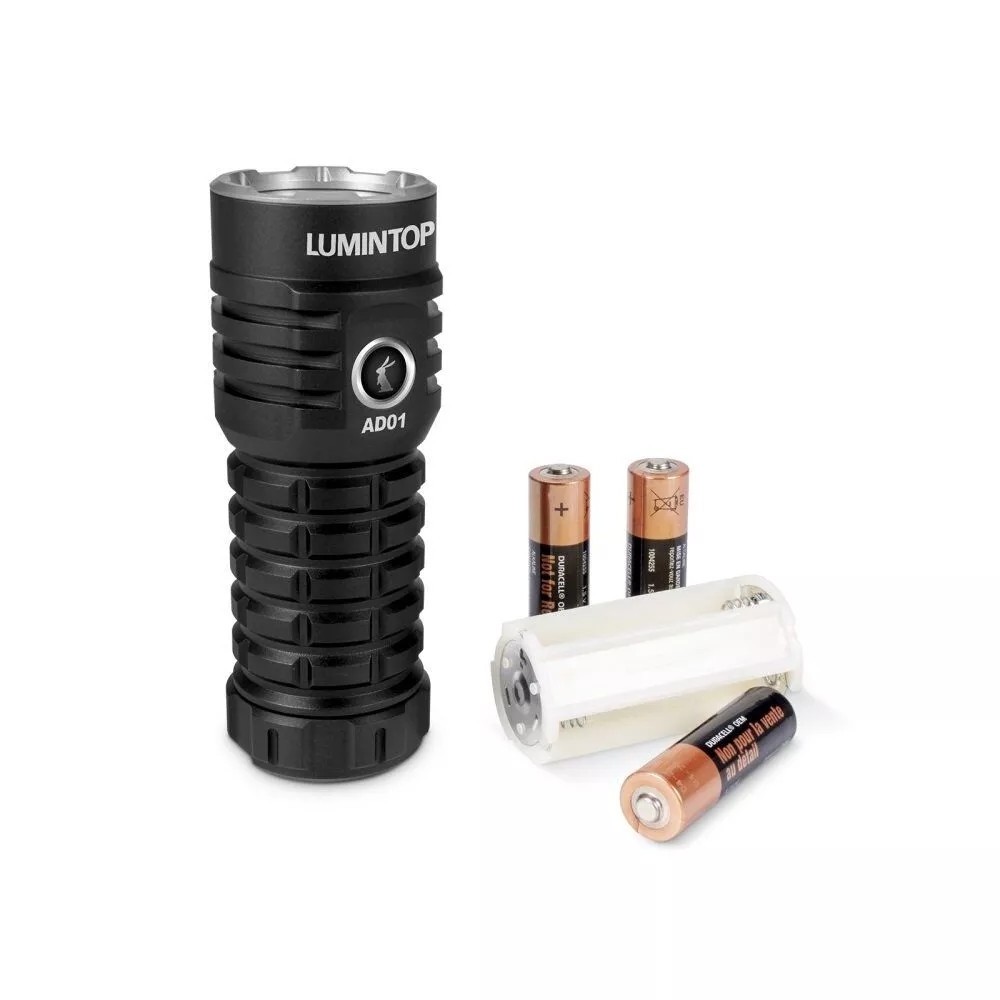

Lumintop AD01 18650/3*AA/ D cell battery flashlight.
Specification:
Battery : Support 1pcs 18650 battery/1pcs D battery or 3pcs AA battery.
The run time and output can check in below sheet to read the detail.
Distance: When use 18650 is 650 meters
When use 3A A A battery is 510 meters
When use D cell is 230 meters
Impact resistance : 1.5 meters
LED: High performance LED.
Power: 18w
Size: 42*39*116mm.
Net weight: Approximately 165g (not incluidng battery and battery adapter)
Operation Instruction:
General Mode: Low-Med-High (with mode memory)
Hidden mode: Eco, Turbo, Strobe, SOS, Beacon.
1. ON/OFF: One click the switch for ON, press and hold for 1 second for OFF.
2. Output change: One click the switch from ON.
3. Turbo: Two quick clicks from ON, another click will enter the general mode.
4. Moonlight: Press and hold the switch for 2 seconds from OFF, another click will enter the general mode.
5. Strobe/SOS/Beacon: Two quick clicks from Moonlight to enter Strobe, another click will cycle through Strobe, SOS, and Beacon.
6. Lock-out/Unlock: Press and hold the switch from OFF for over 5 seconds will lockout or unlock the flashlight. The light will blink as a reminder when it’s entered the lockout mode. Under lock-out status, pressing or holding the switch will momentary active the low mode until the button is released.
7. Button backlit light ON/OFF: Continuously 7 clicks the switch from OFF.
Low-voltage Protection:
The flashlight will automatically downshift the outputs when the battery voltage is dropped to prevent battery damage from over-discharge.
Li-ion battery under 3.2V, AA battery under 1.15V, a max of 60% of the mode performance is allowed except Low.
Li-ion battery under 3.0V, AA battery under 1.05V, the flashlight will blink as a reminder and will downshift the outputs to low.
| Specification | |||||||
| ANSI/NEMA FL1 | Moonlight | Low | Med | High | Turbo | Strobe/SOS/Beacon | |
| Output | 18650 | 1LM | 40LM | 400LM | 750LM | 1200LM | 750LM |
| 3*AA Alkaline | 1LM | 40LM | 400LM | 750LM | 780LM | 750LM | |
| 3*AA Ni-MH | 1LM | 40LM | 400LM | 750LM | 950LMM | 750LM | |
| D Cell | 1LM | 10LM | 50LM | 100LM | 165LM | 100LM | |
| Runtime | 18650 | 15D | 24H | 2H 30Min | 3Min+2H 15Min | 90S+2H | / |
| 3*AA Alkaline | 9D | 15H | 2H 10Min | 3Min+1H 55Min | 90S+1H 50Min | / | |
| 3*AA Ni-MH | 9D | 15H | 1H 35Min | 3Min+1H 25Min | 90S+1H 20Min | / | |
| D Cell | 15D | 48H | 15H | 3H +8H | 50Min+8H | / | |
| Distance (Max) | 18650: 650m | 3* Alkaline AA: 510m | |||||
| D cell:230m | 3* Ni-MH AA:550m | ||||||
| Intensity (Max) | 18650: 105625cd | 3* Alkaline AA: 65000cd | |||||
| D cell: 13250cd | 3* Ni-MH AA: 75500cd | ||||||
| Impact Resistance | 1.5m | ||||||
| Waterproof | IP68, underwater 2m | ||||||
| LED | OS RAM KW CULPM1.TG LED | ||||||
| Battery | 1 X 18650 Li-ion/ 1 X D cell/ 3 X AA (excluded) | ||||||
| Power | 18W (Max)) | ||||||
| Size | 42*39*116mm | ||||||
| Net Weight | ~210g (battery excluded) | ||||||
