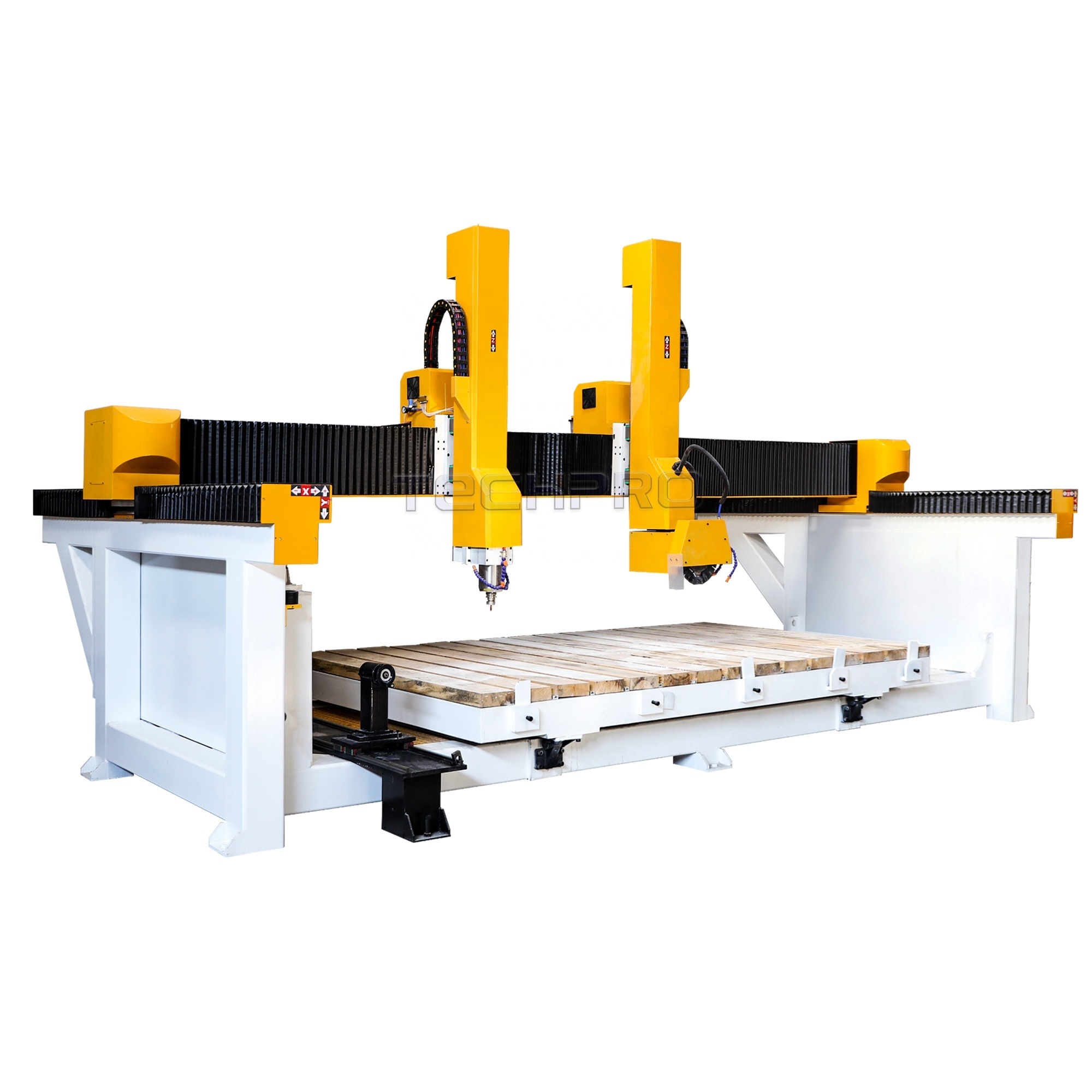

Heavy Structure CNC Stone Engraving 4 Axis Granite Router Heavy Body Stone CNC Router with Water Tank

Heavy Structure CNC Stone Engraving 4 Axis Granite Router Heavy Body Stone CNC Router with Water Tank

FOB Reference Price: Get Latest Price

≥1 Sets

US $24999

≥5 Sets

US $17999

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Shandong, China

Brand Name:: TECHPRO

Voltage:: 3 Phase 380V

Dimension(L*W*H):: 3200*2000*1200mm

Weight:: 5000 kg

Marketing Type:: New Product 2024

Product name:: Stone Cutting Machine with Saw

Model:: TPS2032ER-2

Working area:: 3200*2000*400mm

Spindle power:: HQD12KWATCWater Cooling Spindle

Saw blade power:: 12.8kw Saw Blade Motor

Saw blade diameter:: 350 mm (inner 50 mm)

Control system:: Taiwan LNC Controller

Motor and drive:: Japan Yaskawa Servo Motor and Drive

Work table:: Solid Wood Lifting Table

Voltage power:: 3 Phase 380V/50-60HZ

Quick Details

Type:: Stone Cutting Machine

Power:: 25KW

Cutting thickness (max):: 150mm

Place of Origin:: Shandong, China

Brand Name:: TECHPRO

Voltage:: 3 Phase 380V

Dimension(L*W*H):: 3200*2000*1200mm

Weight:: 5000 kg

Marketing Type:: New Product 2024

Product name:: Stone Cutting Machine with Saw

Model:: TPS2032ER-2

Working area:: 3200*2000*400mm

Spindle power:: HQD12KWATCWater Cooling Spindle

Saw blade power:: 12.8kw Saw Blade Motor

Saw blade diameter:: 350 mm (inner 50 mm)

Control system:: Taiwan LNC Controller

Motor and drive:: Japan Yaskawa Servo Motor and Drive

Work table:: Solid Wood Lifting Table

Voltage power:: 3 Phase 380V/50-60HZ

Heavy Structure CNC Stone Engraving 4 Axis Granite Router Heavy Body Stone CNC Router with Water Tank

Products Description

TechPro 4 Axis Saw Stone CNC Router Features :

1. The machine bed is welded with thick-walled steel pipes and is tempered at high temperature to ensure that the machine body does not deform, has good rigidity and high strength.

2. It has the functions of automatic table turning, automatic tools changer and 4th rotary axis working.

3. It uses a high-power saw blade spindle of 12.8kw, a saw blade diameter of 350mm, and can rotate and cut from 0 to 90 degrees and -90 to 0 degrees.

4. TechPro 4 axis stone cnc router cutting machine adopts adopt Taiwan LNC control system, easy to operate, able to support various drawing team building, can realize the processing of two heads with different processes, and improve processing efficiency.

5. High-precision screws and guide rails: All screws and guide rails are imported. The X and Y axis adopt oil-immersed lubrication method. In addition, the effective waterproof and dustproof structure ensures high processing accuracy and maximizes the service life of the screw and guide rail.

Application of TechPro 4 Axis Saw Stone CNC Machine :

1. Applied materials:

The stone engraving machine is suitable for three-dimensional relief, pointed bottom engraving, flat bottom engraving, line engraving, chamfering, drilling, etc. of various stones such as marble, granite, jade, bluestone, black stone, etc. It is specifically used for stone engraving, stone relief, stone positive engraving, stone negative engraving, stone line engraving, stone cutting, stone hollowing. 2. Application industries: It is suitable for stone industry, stone tablet processing industry, artistic relief, advertising industry, decoration and decoration industry, ceramic industry and construction industry, etc.

Machine Configuration

Model	TPS2032ER-2
Working area	320020001200mm (Optional 300015001200)
Control system	TechPro customization 5 axis control system
Spindle 1	China HQD 12kw water cooling spindle ( 0-24000rpm )
Spindle 2	China HQD 12.8kw saw blade head (Can rotate 0-180 degrees)
4 Axis Processing	X Y Z C A axis
Motor and Driver	Japan Yaskawa AC servo motor and driver 850W
Inverter	Taiwan Delta inverter
Table surface	Slide wood Lifting Table
Structure	Heavy Duty 10mm Steel machine bed; 18mm Moving Steel Gantry
Lubrication system	Manual lubrication system
Transmission	X,Y axis: rack and pinion drive Z axis: Taiwan TBI 3205 ball screw X,Y axis: Taiwan Hiwin square guide rails with 30mm
Electric Parts	Schneider brand
Software	Artcam/Ucancam / Aspire /Fushion360 etc
Working Voltage	380V or 220V /3phase/1 Phase
Extra Functions	Double head type design
		8Pcs Linear Automatic tool changer
		Automatic table turning
		4th rotary axis device diameter 300* length 2000mm
