Quick Details
-
Place of Origin:
-
China
-
Dimension(L*W*H):
-
680*700*1450mm
-
Weight:
-
120 KG
-
Power:
-
180/90W
-
Product name:
-
Yarn Doubling and Twisting Machine
-
Usage:
-
Twisting and Doubling Yarn
-
For material:
-
All Yarns
-
Machine Type:
-
Doubling and Twisting Machine
-
Power Supply:
-
Single phase 220V 50HZ
-
Machine Specification:
-
Single side machine, 2 spindles/set, 4 spindles/set, 6 spindles/set
-
Yarn Winding Speed Range:
-
100-800m/min
-
Yarn Winding Weight:
-
Max 2KG
-
Tube Size:
-
175 mm
Quick Details
-
Core Components:
-
Drive
-
Application:
-
all kinds of spun yarn twisting and doubling
-
Production Capacity:
-
5-20kg/spindle(within 24 hours), 5-20kg/spindle(within 24 hours)
-
Place of Origin:
-
China
-
Dimension(L*W*H):
-
680*700*1450mm
-
Weight:
-
120 KG
-
Power:
-
180/90W
-
Product name:
-
Yarn Doubling and Twisting Machine
-
Usage:
-
Twisting and Doubling Yarn
-
For material:
-
All Yarns
-
Machine Type:
-
Doubling and Twisting Machine
-
Power Supply:
-
Single phase 220V 50HZ
-
Machine Specification:
-
Single side machine, 2 spindles/set, 4 spindles/set, 6 spindles/set
-
Yarn Winding Speed Range:
-
100-800m/min
-
Yarn Winding Weight:
-
Max 2KG
-
Tube Size:
-
175 mm
Product application
Function:

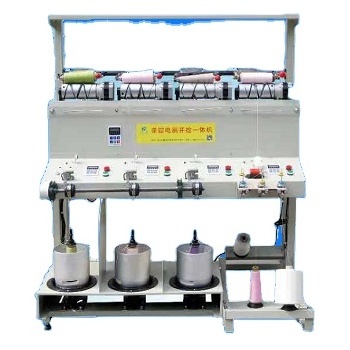

It is suitable for all knids of spun yarn twisting and doubing on one machine. It is convenient for proofing. The twist of each spindle yarn can be adjusted independently, the yarn breaking can stop automatically.
|
Application
|
|
Twisting and doubling yarn
|
|
|
|||
|
MOQ
|
|
2 Spindle/set, 1 spindle is or doubling, 1 spndle is for twisting
|
|
|
|||
|
Power Supply
|
|
Single phase 220V 50HZ
|
|
|
|||
|
Consumption Power
|
|
90W/spindle for doubling and 180W/spindle for twisting at the highest speed
|
|
|
|||
|
Machine Specification
|
|
Single side machine, 2 spindles/set, 4 spindles/set, 6 spindles/set
|
|
|
|||
|
Bobbin Diameter
|
|
Maxium winding diameter is 250 mm
|
|
|
|||
|
Yarn Winding Weight
|
|
Maxium 2KG
|
|
|
|||
|
Yarn Winding Speed Range
|
|
100-800m/min
|
|
|
|||
|
Direction of Twist
|
|
It can adjust S or Z direction
|
|
|
|||
The automatic winding machine is suitable for winding sewing thread, embroidery thread, nylon thread etc. It has the device of automatic feed bobbin and change bobbin. The function is of full automatic high speed operation and fast change bobbin.
Product Introduce
Product Advantage:
1. Each spindle is independently controlled by computer numerical control, with simple structure and convenient operation.
2. The twist of 10-800 twists is
independently adjusted by
numerical
control, which can save employees' energy.
3. Automatic stop function of machine yarn breakage alarm greatly saves yarn material and reduces the strength of staff watching machine.
4. Yarn doubling and twisting by
independently motor control, two functions do not interfere with each other, it can realize one machine dual use.
