Quick Details
-
Model Number:
-
MS
-
Brand Name:
-
Minsheng
-
Certification:
-
ISO 9001/ ISO4706/CE/TPED
-
Water Capacity:
-
40L
-
Color:
-
Customer's Requirement
-
limited filling Pressure:
-
1.56Mpa
-
Outside Diameter:
-
250mm
-
filling weight:
-
≤7.2kg
-
Wall Thickness:
-
4mm
-
height:
-
1040mm
-
hydraulic test pressure:
-
5.2mpa
-
gas-tight test pressure:
-
3.0mpa
Quick Details
-
Material:
-
Steel, HP295
-
Use:
-
Acetylene
-
Place of Origin:
-
Jiangsu, China
-
Model Number:
-
MS
-
Brand Name:
-
Minsheng
-
Certification:
-
ISO 9001/ ISO4706/CE/TPED
-
Water Capacity:
-
40L
-
Color:
-
Customer's Requirement
-
limited filling Pressure:
-
1.56Mpa
-
Outside Diameter:
-
250mm
-
filling weight:
-
≤7.2kg
-
Wall Thickness:
-
4mm
-
height:
-
1040mm
-
hydraulic test pressure:
-
5.2mpa
-
gas-tight test pressure:
-
3.0mpa
Product Description

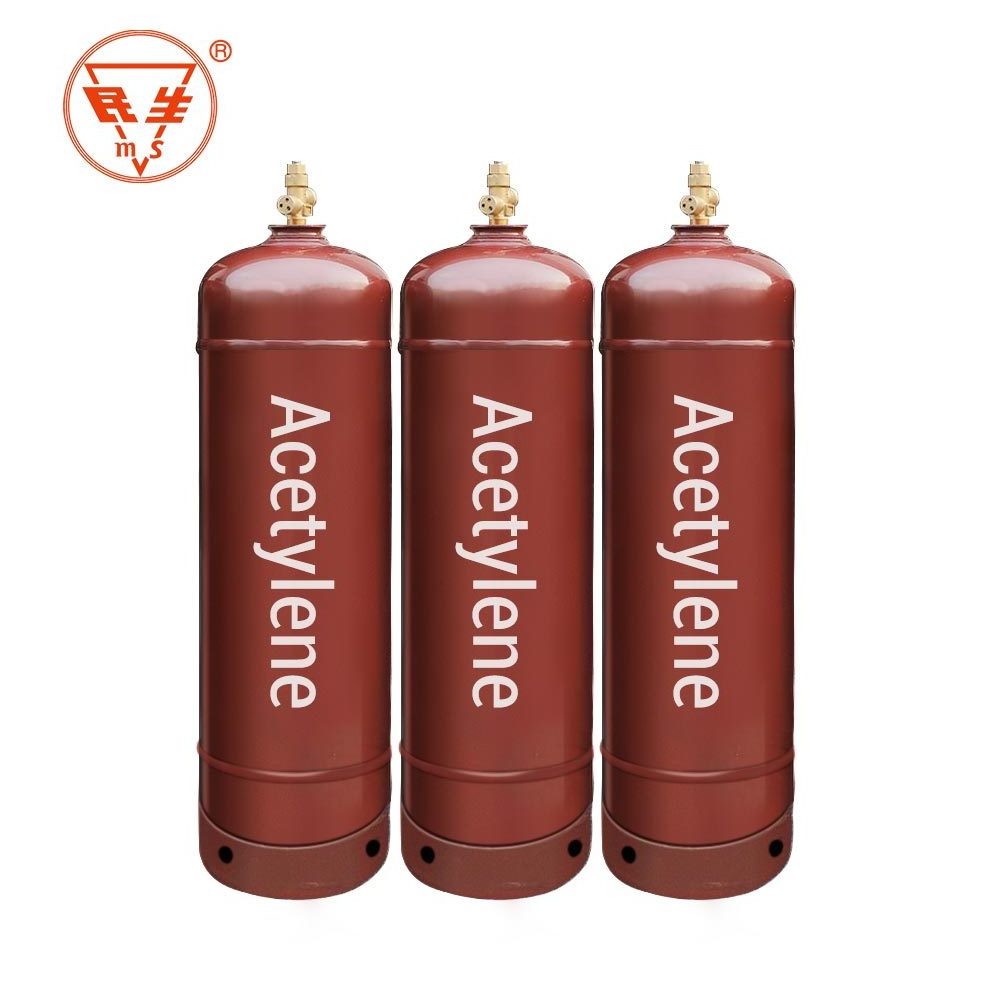

Acetylene gas cylinders
Acetylene cylinders are used for special welding and cutting jobs. They are not only suitable for forging or forging, but also for brazing and soldering.
With the use of acetylene, cylinders of various markings and shapes are common. This is because acetylene can be contained in a cylinder with absorbent material, or just a standard acetylene cylinder. Cylinders containing absorbent material are referred to as “acetone cylinders” or “dissolved acetylene” cylinders. Acetylene dissolved in acetone yields approximately 2.5 times the volume of gaseous acetylene compared to when dissolved in water. This means that these cylinders allow higher gas output for the same size cylinder.
Mostly the market acetylene is transported as a dissolved gas in specially designed cylinders that are pressure-tested regularly. The cylinders are filled with porous materials such as diatomaceous earth or (more commonly) activated charcoal. They are then filled with acetone to saturate the material, followed by allowing a slight positive pressure of acetylene gas to fill the cylinder. The acetylene gas is held in solution by the acetone and by physical forces within the cylinder’s air space above the liquid level, but not dissolved in the acetone. When required, the pressure on the cylinder is reduced and some of the acetone-acetylene mixture vaporizes and escapes through the porous mass to supply gaseous acetylene for use.
|
Inside Diameter(mm)
|
Water Capacity(L)
|
Height(mm)
|
Weight(kg)
|
Acetone(kg)
|
Acetylene(kg)
|
Nominal Wall Thickness(mm)
|
Hydraulic test pressure
|
Gas-tight test pressure
|
|
152
|
6
|
540
|
9.5
|
2.05
|
1.08
|
3
|
5.2Mpa
|
3.0Mpa
|
|
|
7
|
580
|
10
|
2.39
|
1.26
|
3
|
|
|
|
|
7.5
|
620
|
10.5
|
2.56
|
1.35
|
3
|
|
|
|
200
|
12..5
|
600
|
13.5
|
4.27
|
2.25
|
3
|
|
|
|
235
|
20
|
690
|
22
|
6.84
|
3.60
|
4
|
|
|
|
|
25
|
800
|
27
|
8.55
|
4.50
|
4
|
|
|
|
|
30
|
920
|
32
|
10.26
|
5.40
|
4
|
|
|
|
|
35
|
1040
|
37
|
11.97
|
6.30
|
4
|
|
|
|
250
|
40
|
1040
|
39
|
13.68
|
7.20
|
4
|
|
|
|
300
|
60
|
1100
|
51
|
20.52
|
10.8
|
4
|
|
|
