Quick Details
-
Voltage:
-
220V/380V/400V or as your optional
-
Dimension(L*W*H):
-
1440x830x750mm or as your optional
-
Warranty:
-
1 Year
-
Power (kW):
-
2 kW
-
Weight (KG):
-
200 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Max. temperature:
-
200℃
-
Belt width:
-
as your belt optional
-
Degree of the heating platen:
-
22 °/17 °/ 20 °
-
Max pressure:
-
100PSI or 200PSI
-
Certification:
-
ISO9001
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
beltwin
-
Core Components:
-
/
-
Voltage:
-
220V/380V/400V or as your optional
-
Dimension(L*W*H):
-
1440x830x750mm or as your optional
-
Warranty:
-
1 Year
-
Power (kW):
-
2 kW
-
Weight (KG):
-
200 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Max. temperature:
-
200℃
-
Belt width:
-
as your belt optional
-
Degree of the heating platen:
-
22 °/17 °/ 20 °
-
Max pressure:
-
100PSI or 200PSI
-
Certification:
-
ISO9001
Product Details
Brand: Beltwin
Model : DSLQ-II

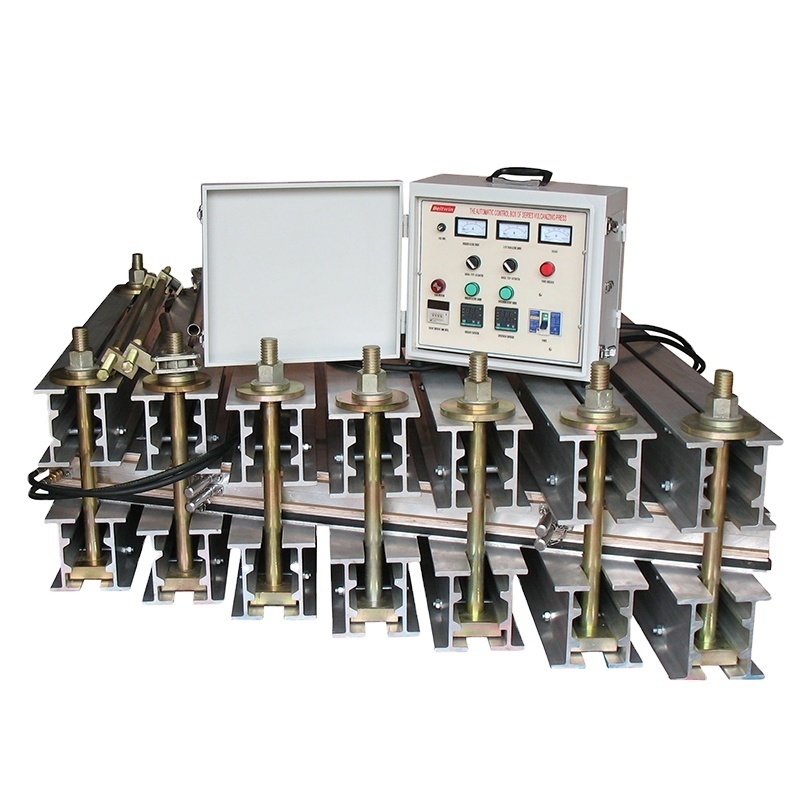

Item: Beltwin DSLQ II vulcanizer for rubber belt
1. Technical Parameters Beltwin electric heat rubber press vulcanizing equipment for rubber conveyor belt
- Vulcanizing temperature:
145 ℃ (adjustable 0~200 ℃ )
- Temperature-rising time (from normal temp to vulcanizing temp):
≤ 50 mins ( around 25~30 mins normally )
- Improved cooling system: using pressure pump for cooling:
only 5mins (cooling from 145 to 75 degrees)
2 . When order or inquiry, pls offer below informaiton:
| 1.Heating platen length | (A=?) |
| 2.Belt max width | (B=?) |
| 3.Working pressure | 100PSI / 200PSI |
| 4.Working voltage | 380V/ 660V / 480V / 440V / 415V / 400V or 20V |
| What kind of press | normal type or 2pcs type |
Any other special requirement pls contact us.
More informaiton pls freely to visit our website: www.beltwin.com
Belt width: from 650mm to 3000mm 200PSI Almex alike
Degree of the heating platen : 22 ° / 17 °/ 20 ° (rectangle and other degree is optional)
Waterbag/ air pressure Press for 100PSI , 200PSI etc.
Surface pressure for textile and steel cord belts, Up to 1.8Mpa .
- 100 p.s.i. (7 kg/cm sq.) units suitable for splicing fabric ply belting
- 200 p.s.i. (14 kg/cm sq.) units suitable for splicing steel cord conveyor belting
- Customization/OEM : Different heating platen size and combination
3. Specification
1. 100 p.s.i. (7 kg/cm sq.) units suitable for splicing fabric ply belting .
2. 200 p.s.i. (14 kg/cm sq.) units suitable for splicing steelcord conveyor belting.
