Water Tank Level Sensor Oil Level Switch with 4-20mA Output

Water Tank Level Sensor Oil Level Switch with 4-20mA Output

FOB Reference Price: Get Latest Price

≥1 Pieces

US $120

≥50 Pieces

US $105

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Product name:: Water Tank Sensor Float Switch Oil Level Switch with 4-20mA Output

Application:: Oil&gas, petrol, petrochemical, chemical industry

Output Singal:: 0/4...20mA, 20...4/0mA, 0...5/10V, 5/10...0V

Housing Material:: SS316

Transmitter type:: Piezoresistive pressure sensor

OEM service:: OEM, ODM, customization available

Display:: OLED

Long-term stability:: ±0.3%FS/year

Measuring range:: 0...1mH2O to 100mH2O

Power supply:: 12...30V DC

Quick Details

Place of Origin:: Anhui, China

Brand Name:: WNK

Model Number:: WNK-SLS

Product name:: Water Tank Sensor Float Switch Oil Level Switch with 4-20mA Output

Application:: Oil&gas, petrol, petrochemical, chemical industry

Output Singal:: 0/4...20mA, 20...4/0mA, 0...5/10V, 5/10...0V

Housing Material:: SS316

Transmitter type:: Piezoresistive pressure sensor

OEM service:: OEM, ODM, customization available

Display:: OLED

Long-term stability:: ±0.3%FS/year

Measuring range:: 0...1mH2O to 100mH2O

Power supply:: 12...30V DC

Water Tank Level Sensor Oil Level Switch with 4-20mA Output

Product Description

1. Liquid and oil media level measurement
2. PNP switching, voltage and current outputs
3. Support MODBUS communication
4. Switching points settable
5. Switching can be set normally open / normally closed
6. Supporting Switching delay
7. Analog output span settable
8. High light switch indicating
9. OLED self-luminous display
10. Display turnable 180°
11. Housing with electrical connection against process connection rotatable 330°
12. Media density settable

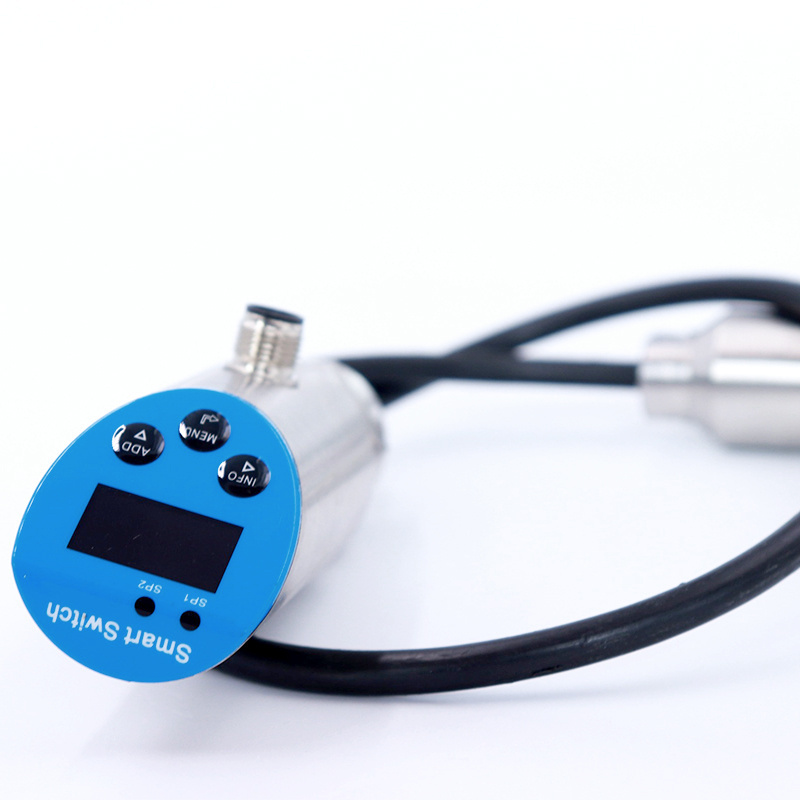

Smart Electronic Level Switch with OLED Display
Model No.	SLS
Measuring range	0…1mH2O to 100mH2O
Accuracy	≤0.5%FS
Supply power	12...30VDC
Temperature error within rated temp range	±0.02%FS/℃ (Zero/full span)
Long-term stability	±0.3%FS/year
Analog output accuracy	±0.2%FS
Output configurations	switching+voltage+ communication: 2×PNP + 0V~5VDC/10VDC + MODBUS
Output configurations	switching+current+ communication: 2×PNP + 0mA/4mA~20Madc + MODBUS
Switching current	1.0A(Max.)
Switching type	normally open , normally closed
Switching respond time	<10ms
Switching delay	0.00s~1000.0s
Switching motion mode	delay or windows mode
Analog signal output and maximum ohmic load RL	Current output: 0/4…20mA,20…4/0mA RL≤0.5kΩ
Analog signal output and maximum ohmic load RL	Voltage output: 0…5/10V,5/10…0V RL>10kΩ
Screen display	OLED
Switching indicator	2X red LED
Displaying pressure units	psi,bar,mbar,Pa,kPa,MPa
Working temperature	-30℃~80℃
Media temperature	-30℃~80℃
Storage temperature	-40℃~80℃
Electromagnetism compatible	GB/T 17626.2/3/4-2006
Shock resistance	≤10g/10Hz...500Hz(IEC 60068-2-6-2007)
Vibration resistance	≤50g/11ms(IEC 60068-2-27-2008)
IP rating	IP65
