Quick Details
-
Size:
-
20 40 60inch
-
Weight (KG):
-
3 kg
-
Keywords:
-
Industrial water filter
-
Name:
-

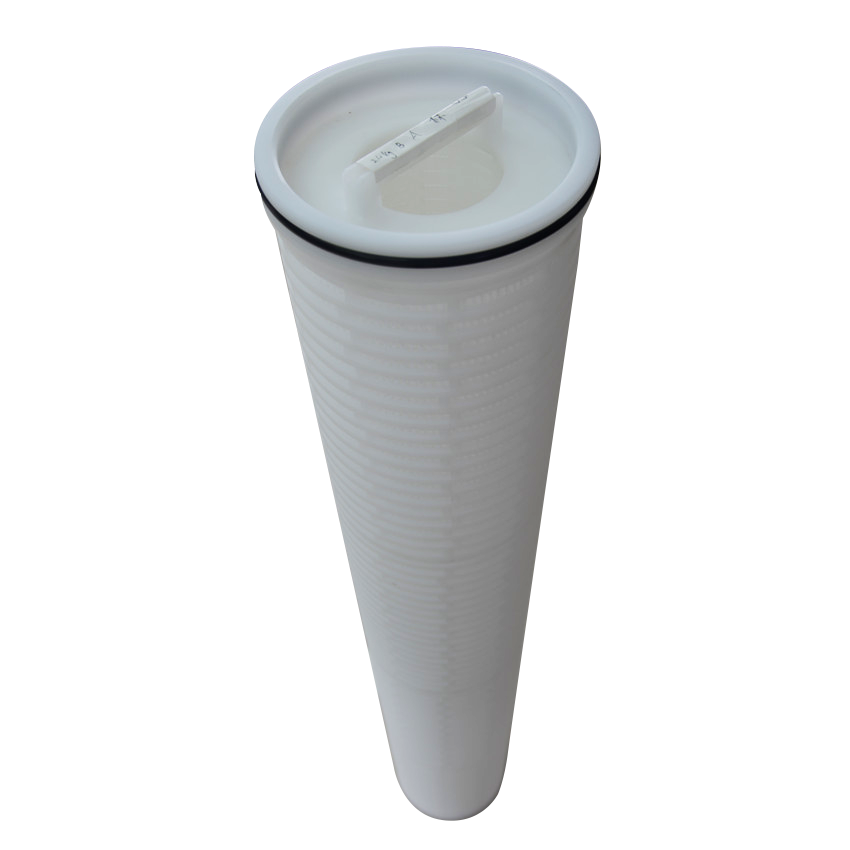

High Flow Filter Industrial Pleated Filter Cartridge
-
Model:
-
PP-20/40/60 inch
-
Construction:
-
water filter
-
Filtration Grade:
-
Hepa Filter
-
Filter Media:
-
PP Fiberglass
-
Certification:
-
EN779:2012,ISO/TS 16949:2009
-
Micron:
-
1μm,5μm,10μm,15μm,20μm,40μm,70μm,100μm
-
Application:
-
Liquid Filtration
Quick Details
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Water filter
-
Weight:
-
3kg
-
Size:
-
20 40 60inch
-
Weight (KG):
-
3 kg
-
Keywords:
-
Industrial water filter
-
Name:
-
High Flow Filter Industrial Pleated Filter Cartridge
-
Model:
-
PP-20/40/60 inch
-
Construction:
-
water filter
-
Filtration Grade:
-
Hepa Filter
-
Filter Media:
-
PP Fiberglass
-
Certification:
-
EN779:2012,ISO/TS 16949:2009
-
Micron:
-
1μm,5μm,10μm,15μm,20μm,40μm,70μm,100μm
-
Application:
-
Liquid Filtration
Replace PALL 20 40 60 inch inch High Flow Filter Industrial Pleated Filter Cartridge Use For Swimming Pool Sea Water
| Type: | Standard |
| Material: | Synthetic Fiber/Metal/Iron |
| Construction: | Cartridge Filter |
| Porosity: | Customized |
| Place of Origin: | Gu'an, China (Mainland) |
| Brand Name: | KL Filter |
| Model Number: | Customized |
| Dimension(L*W*H): | Normal |
| Weight: | Normal |
| Certification: | EN779:2012,ISO/TS 16949:2009 |
| Warranty: | One year |
| After-sales Service Provided: | Online support |
| Usage: | High Flow Filter Industrial Pleated Filter Cartridge Use For Swimming Pool Sea Water |
| Service: | OEM/ODM |
| Excellent ability: | Moisture proof, water proof, Antiflaming |
| Configuration: | Galvanized stainless metal,E-coating, Seepage zinc plate |
| Seal: | Rubber seal |
| Business type: | Manufacturer,factory |
| Sample: | Available |
| OD | 6” (152mm) |
| Length | 20"/40"/60" |
| Micron | 0.1um~100 um |
| Maximum operating temperature | Pleated/melt-blown pp: 82℃ |
| Pleated glass fiber: 121℃ | |
| Maximum operating differential pressure | Pleated/melt-blown pp: 3.44bar@82℃ |
| Pleated glass fiber: 3.44bar@121℃ | |
| Suggestion design flow | 40": ≤15m3/h |
| 60": ≤25m3/h |
Filteration Classify:
High Flow Filter Industrial Pleated Filter Cartridge Use For Swimming Pool Sea Water:
Descriptions of the industrial high flow pleated filter cartridge:
High Flow Pleated Filter Cartridge is single open ended which design for the direction from an inside to outside flow pattern. The large filter area ensure the high dirt holding capacity. The low cost save the number of filter cartridge. Long service life and superior flow rates are the main characteristics. All contaminants can be removed efficiently.
Applications of the industrial high flow pleated filter cartridge:
• Prefiltration of RO,Pretreatment of sea water desalination
• Bottled water, high Fructose,edible oil,soft drinks
• Paints and coatings,Petrochemical,Refineries
• Microelectronics
