Quick Details
-
Style number:
-
MIC-9904
-
Brand name:
-
MIC
-
Product name:
-
16 Way High isolation passive catv signal combiner
-
Place of origin:
-
China
-
frequency:
-
5~1000MHz
-
way number:
-
16
-
output return loss:
-
≥18dB
-
Impedance:
-
75Ω
-
Dimension:
-
483*136*40mm
-
Weight:
-
2Kg
Quick Details
-
Place of Origin:
-
Shaanxi, China
-
Brand Name:
-
MIC
-
Model Number:
-
MIC-9904
-
Style number:
-
MIC-9904
-
Brand name:
-
MIC
-
Product name:
-
16 Way High isolation passive catv signal combiner
-
Place of origin:
-
China
-
frequency:
-
5~1000MHz
-
way number:
-
16
-
output return loss:
-
≥18dB
-
Impedance:
-
75Ω
-
Dimension:
-
483*136*40mm
-
Weight:
-
2Kg
Specification:
1, 16 Way High isolation passive catv signal combiner
2, Frequency : 5~1000MHz
3, Dimension : 483*136*40mm
4, Weight : 2Kg
Overview:
MIC -9904 catv combiner is the broad band passive, high isolation combiner which is specially designed for CATV adjacent channel headend, and can combined output 16-way signal within the 860MHz. There is a 2-way combiner in the equipment, and its two serial interfaces can be in series with output signal of other combiner, so it can satisfy the matching requirement in various CATV system.
Specifications:
|
Items |
Units |
Specifications |
|
|
Frequency range |
MHz |
5~1000 |
|
|
Isolation (In-In/Adjacent port) |
5-65MHz |
dB |
≥24 |
|
65-550MHz |
dB |
≥26 |
|
|
550-750MHz |
dB |
≥26 |
|
|
750-1000MHz |
dB |
≥24 |
|
|
Isolation (In-In/Non-adjacent port) |
5-65MHz |
dB |
≥28 |
|
65-550MHz |
dB |
≥28 |
|
|
550-750MHz |
dB |
≥28 |
|
|
750-1000MHz |
dB |
≥26 |
|
|
Insertion loss |
5-65MHz |
dB |
≤13.5 |
|
65-550MHz |
dB |
≤14.0 |
|
|
550-750MHz |
dB |
≤15.0 |
|
|
750-1000MHz |
dB |
≤16.0 |
|
|
Input return loss |
5-65MHz |
dB |
≥13 |
|
65-550MHz |
dB |
≥13 |
|
|
550-750MHz |
dB |
≥16 |
|
|
750-1000MHz |
dB |
≥16 |
|
|
Output return loss |
dB |
≥18 |
|
|
Flatness |
dB |
≥±1.5 |
|
|
Impedance |
Ω |
75 |
|
|
Dimension |
mm |
483*136*40 |
|
|
Weight |
Kg |
2 |
|

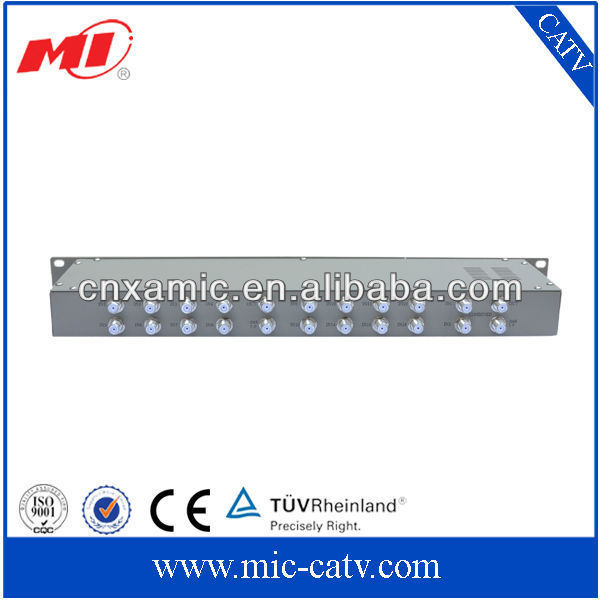

Product Photo:
Production Line:
