Quick Details
-
Dimension(L*W*H):
-
2600*2650*3700mm
-
Hydraulic hammer working pressure:
-
9-11/11-14/12-15mpa
-
Rod diameter:
-
68/75/85mm
-
Walking motor torque(max):
-
1800Nm
-
Pile height(max):
-
2600mm
-
Drilling depth:
-
1700mm
-
Drilling diameter:
-
0-300mm
-
hydraulic system pressure:
-
16-20mpa
-
Pulling speed(max):
-
30000m/h
Quick Details
-
Place of Origin:
-
China
-
Weight:
-
2800 kg
-
Material:
-
Steel Q235
-
Dimension(L*W*H):
-
2600*2650*3700mm
-
Hydraulic hammer working pressure:
-
9-11/11-14/12-15mpa
-
Rod diameter:
-
68/75/85mm
-
Walking motor torque(max):
-
1800Nm
-
Pile height(max):
-
2600mm
-
Drilling depth:
-
1700mm
-
Drilling diameter:
-
0-300mm
-
hydraulic system pressure:
-
16-20mpa
-
Pulling speed(max):
-
30000m/h
Product Description

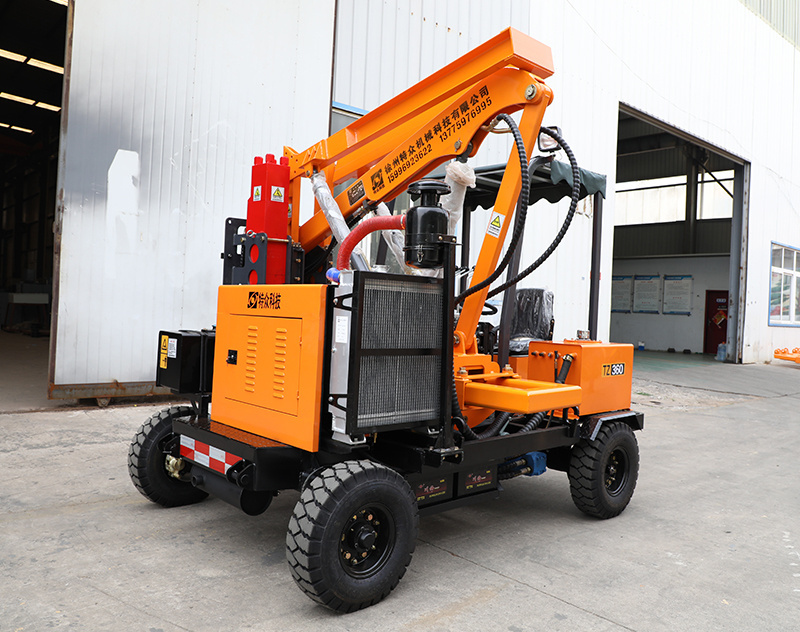

Pile Driver is composed of the chassis, guide rail, hydraulic system, hydraulic hammer, diesel engine, electrical, cooling and control system, pile extracting equipment and pile drilling equipment. Its characteristics include quick and exact positioning, compact size, lightweight, self-propelled, agile, ergonomic design, easy operation, high efficiency and a low price.
Main Features
Main Features
|
Overall dimensions at work (mm)
|
2600*2700*4367
|
Sliding rail frame inclination (°)
|
left35right10
|
|
|
Overall dimensions for transportation (mm) 2600*2700*2600
|
|
Adjustable angle range (°)
|
±10
|
|
|
Hydraulic hammer model
|
AR85
|
Hydraulic system pressure (MPA)
|
16-20
|
|
|
Hydraulic hammer flow (min/l)
|
60-100
|
Gear pump flow (min/l)
|
40-50
|
|
|
Impact frequency (hz)
|
400-800
|
Travel speed (km/h)
|
3
|
|
|
Drill rod diameter (mm)
|
85
|
Sliding stroke from left to right (mm)
|
0-450
|
|
|
Traveling motor torque (Nm)
|
1300
|
Vehicle weight (kgs)
|
3000
|
|
|
Pile height (mm)
|
3100
|
Engine power (kw)
|
33
|
|
