Quick Details
-
Table Travel (Y) (mm):
-
400 mm
-
Dimension(L*W*H):
-
2050*2250*2350
-
Weight (T):
-
3.1 T
-
Table Travel (Z) (mm):
-
460 mm
-
Positioning Accuracy (mm):
-
0.04mm
-
Repeatability (X/Y/Z) (mm):
-
0.008
-
Range of Spindle Speed(r.p.m):
-
10 - 12000 r.p.m
-
Spindle Motor Power(kW):
-
3.7
-
Max. Table Load(kg):
-
200 kg
-
Feed Speed(mm/min):
-
10 - 8000 mm/min
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
ALLES
-
Voltage:
-
Customer's Requirement
-
Marketing Type:
-
Hot Product
-
Worktable size:
-
600x400 mm
-
Tool holder:
-
BT30
-
Servo motor (X/Y/Z)kw:
-
1.8/1.8/3.0B
-
Floor area and height:
-
2050*2250*2350
-
Machine weight:
-
3100kg
-
Model:
-
ALVMC640
-
type:
-
Vertical
-
Color:
-
White
-
Power(KW):
-
3.7
-
Precision:
-
High Precision
Quick Details
-
Table Size (mm):
-
600x400
-
Number of Axes:
-
3, 4, 5
-
Table Travel (X) (mm):
-
550 mm
-
Table Travel (Y) (mm):
-
400 mm
-
Dimension(L*W*H):
-
2050*2250*2350
-
Weight (T):
-
3.1 T
-
Table Travel (Z) (mm):
-
460 mm
-
Positioning Accuracy (mm):
-
0.04mm
-
Repeatability (X/Y/Z) (mm):
-
0.008
-
Range of Spindle Speed(r.p.m):
-
10 - 12000 r.p.m
-
Spindle Motor Power(kW):
-
3.7
-
Max. Table Load(kg):
-
200 kg
-
Feed Speed(mm/min):
-
10 - 8000 mm/min
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
ALLES
-
Voltage:
-
Customer's Requirement
-
Marketing Type:
-
Hot Product
-
Worktable size:
-
600x400 mm
-
Tool holder:
-
BT30
-
Servo motor (X/Y/Z)kw:
-
1.8/1.8/3.0B
-
Floor area and height:
-
2050*2250*2350
-
Machine weight:
-
3100kg
-
Model:
-
ALVMC640
-
type:
-
Vertical
-
Color:
-
White
-
Power(KW):
-
3.7
-
Precision:
-
High Precision
Products Description
New Automatic

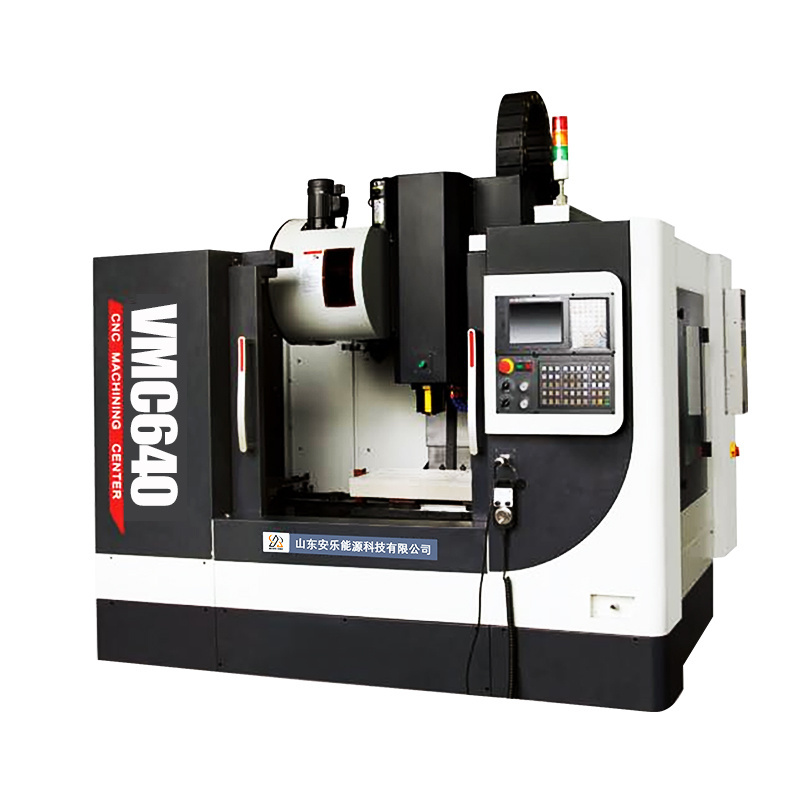

VMC640 VMC CNC Milling Machine
Vertical Cnc Machining Center
This VMC is suitable for the mechanical processing and mold making. And it can adapt to the processing requirement from rough machining to finish machining. It can also finish many working procedures like milling, drilling, tapping, boring etc.
New Automatic VMC640 VMC CNC Milling Machine Vertical Cnc Machining Center
High quality resin sand;
Taiwan spindle;
Taiwan ball screw and locking nut;
Taiwan pressure cylinder;
Japan NSK bearing;
Germany R+W coupling;
Automatic lubrication system;
Chip conveyor at optional;
Product Paramenters
|
Item
|
|
Unit
|
ALVMC640
|
|
|
Worktable
|
Worktable size
|
mm
|
600x400
|
|
|
|
T-slot
|
mm
|
14x3x125
|
|
|
|
Max. load
|
kg
|
200
|
|
|
Travel
|
X axis travel
|
mm
|
550
|
|
|
|
Y axis travel
|
mm
|
400
|
|
|
|
Z axis travel
|
mm
|
460
|
|
|
Spindle
|
Spindle nose to worktable
|
mm
|
110-570
|
|
|
|
Spindle speed
|
rpm
|
12000
|
|
|
Other
|
Air source pressure demand
|
kg/cm
|
6
|
|
|
|
Cutting water tank capacity
|
L
|
200
|
|
|
|
positioning accuracy
|
mm
|
0.008
|
|
|
|
Re-positioning accuracy
|
mm
|
0.004
|
|
ALLES CNC metal processing machine tools are exported to more than 60 countries and regions in the world, covering many industries and categories such as new energy, wind energy, nuclear power, steel structure, petroleum equipment, automobile manufacturing, automobile automation, metal processing, power transmission, infrastructure construction, etc.
Manufacturing Technique
* Main Features:
1. High rigidity and stable machine structure,
2. High precision silideway on all three axis,
3. High Speed, High precision spindle,
4. Fast and reliable tool changing mechanism.
1. High rigidity and stable machine structure,
2. High precision silideway on all three axis,
3. High Speed, High precision spindle,
4. Fast and reliable tool changing mechanism.
Spindle .
The spindle adopts precision grade angular ball bearings with high speed and high precision, and the standard speed can reach 12,000rpm.
Lubrication system .
Lubrication system
not only has a lubricating effect, but also has a cooling effect to reduce the impact of machine tool thermal deformation on machining accuracy.
Controller .
GSK, FANUC, MITSUBISHI, Siemens(
Optional
)
Workbench .
The load-bearing capacity of the worktable is up to 200kg, and the worktable size is 600x400mm.
Light machine.
VMC light machine includes: base, column, saddle, worktable, headstock.
Tool library .
Tool capacity can contain 20 tools.
