Quick Details
-
Power:
-
0.75kw 380v/220v
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Sincola
-
Dimension(L*W*H):
-
1000*650*550mm
-
Weight:
-
140kg
-
Warranty:
-
One year
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Type:
-
auto render machine
-
Rendering Thickness(mm):
-
5mm-30mm
-
Rendering Speed:
-
70-80m2/h
-
Usage:
-
Brick Wall,Block Wall, Indoor
-
Colour:
-
Customized
-
Market:
-
World wide
-
Main Power:
-
Electric Motor
-
Manufacturing days:
-
3 wroking days
-
Delivery time:
-
Short
-
Certification:
-
ISO9001:2008
Quick Details
-
Rendering Thickness:
-
30 mm
-
Rendering Height:
-
5 m
-
Production Capacity:
-
100
-
Power:
-
0.75kw 380v/220v
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Sincola
-
Dimension(L*W*H):
-
1000*650*550mm
-
Weight:
-
140kg
-
Warranty:
-
One year
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Type:
-
auto render machine
-
Rendering Thickness(mm):
-
5mm-30mm
-
Rendering Speed:
-
70-80m2/h
-
Usage:
-
Brick Wall,Block Wall, Indoor
-
Colour:
-
Customized
-
Market:
-
World wide
-
Main Power:
-
Electric Motor
-
Manufacturing days:
-
3 wroking days
-
Delivery time:
-
Short
-
Certification:
-
ISO9001:2008
wall plastering machine
plastering machine price SHOTCRETE MACHINE
Parameter of auto rendering plastering machine
|
Model |
SRM7 |
Usage |
Brick Wall,Block Wall, Indoor |
|
Rendering Thickness(mm): |
5mm-30mm |
Dimension(mm): |
1000*650*550mm |
|
Rendering Speed(m²/h) |
70-80 |
Weight(Kg) |
140kg |
|
Rendering Height(m) |
3.5M |
Power: |
0.75kw 380v/220v |
Other types of auto rendering plastering machine
|
AUTOMATIC RENDERING MACHINE |
||||||||
|
Model |
SRM2 |
SRM4 |
SRM5-1 |
SRM5-1.2 |
SRM6 |
|||
|
Rendering Height(m) |
5 |
5 |
5 |
5 |
5 |
|||
|
Rendering Width(mm) |
800 |
800 |
1000 |
1200 |
1000 |
|||
|
Rendering Speed(m²/h) |
60-70 |
60-70 |
70-80 |
80-100 |
70-80 |
|||
|
Rendering Thickness(mm) |
5-30 |
|||||||
|
Power |
2.2KW/380V-50HZ/60HZ |
0.75KW/380V/220V-50HZ/60HZ |
1.5KW/380V/ 220V-50HZ/60HZ |
1.5KW/380V/ 220V-50HZ/60HZ |
0.75KW/380V/220V-50HZ/60HZ |
|||
|
Electricity Phase |
Three |
Single/Three |
Single/Three |
Single/Three |
Single/Three |
|||
|
Dimension(mm) |
1350×800×500 |
800×650×550 |
1000×650×550 |
1200×650×550 |
1000×650×550 |
|||
|
Weight(Kg) |
180 |
110 |
100 |
110 |
140 |
|||
|
Usage |
Brick Wall,Block Wall, Indoor |
|||||||
|
Suitable Materials |
1.Cement Mortar ,2.Ready Mix Mortar,3.Gypsum Mortar ,4.Lime Mortar |
|||||||
|
Feature |
Feeding mortar by manual control |
Shift machine conveniently when pass door or concrete beams of ceiling no need to disassemble directional pipes. |
New alluminium alloy main unit and stainless steel directional pipes. Original gear rack driving system enable output of main power is more peaceful and stable Less failure rate. |
Higher productivity, bigger working area. new alluminium alloy main unit and stainless steel directional pipes. Original gear rack driving system enable output of main power is more peaceful and stable less failure rate. |
No Need to Mark the Reference Point. One Man’s Operation. Higher Quality of Flatness. Limit Lever. Increase 30% the Volume of the Mortar Tank. Stretched Plate of the Overhead Beam |
|||
Sincola plastering machine price also called plaster machine, wall plastering machine, automatic plastering machine, plastering machine for wall, which is a unique machine for wall rendering, it is designed for increasing rendering efficient and saving labor cost of rendering project.
Features of wall plastering machine
1.Add the vertical scraper, to insure the vertical and smooth degree of the metope.
2.Increase the ash damper,to increase the ash content of ash hopper.
3. Up and down handwheel positioning, no need to make points, higher accuracy.
4.Single-phase 220 v 380v 415v using broadband circuits, more suitable for unstable voltage area.
5.Adopt the international newest spring connection way, avoid shaking loose, no need to maintenance.
6.Infrared laser leveling way, easy and convenient.
7.Unique positioning way,single person can operate.
Brick Wall And Block Wall
1.Cement Mortar 2.Ready Mix Mortar 3.Gypsum Mortar 4.Lime Mortar

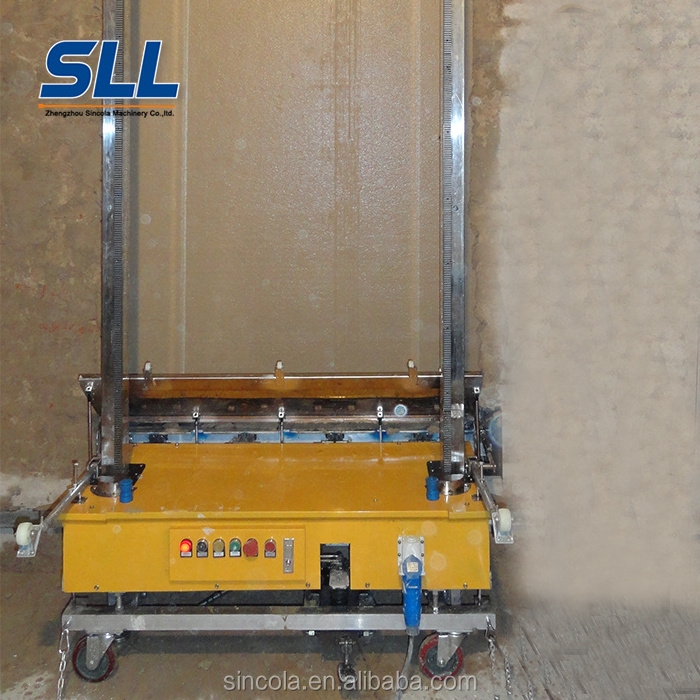

Pictures of wall plastering machine
Parts of auto render machine
