Quick Details
-
Through-put (Optimum):
-
36,000CPH(0.1sec/CHIP Equivalent)
-
Applicable components:
-
0402(Metric base) to 32*mm components
-
Power supply:
-
3-Phase AC 200/208/220/240/380/400/416V +/-10% 50/60Hz
-
placement accuracy:
-
±0.1mm/CHIP ±0.08/QFP
-
Weight of the machine:
-
Approx 1340kg
-
Dimensions:
-
L1254~W1440~H1450mm(cover top)
-
Applicable PCB:
-
510*W460mm to L50*W50mm
Quick Details
-
Place of Origin:
-
Japan
-
Brand Name:
-
Yamaha
-
Model Number:
-
YS12
-
Through-put (Optimum):
-
36,000CPH(0.1sec/CHIP Equivalent)
-
Applicable components:
-
0402(Metric base) to 32*mm components
-
Power supply:
-
3-Phase AC 200/208/220/240/380/400/416V +/-10% 50/60Hz
-
placement accuracy:
-
±0.1mm/CHIP ±0.08/QFP
-
Weight of the machine:
-
Approx 1340kg
-
Dimensions:
-
L1254~W1440~H1450mm(cover top)
-
Applicable PCB:
-
510*W460mm to L50*W50mm

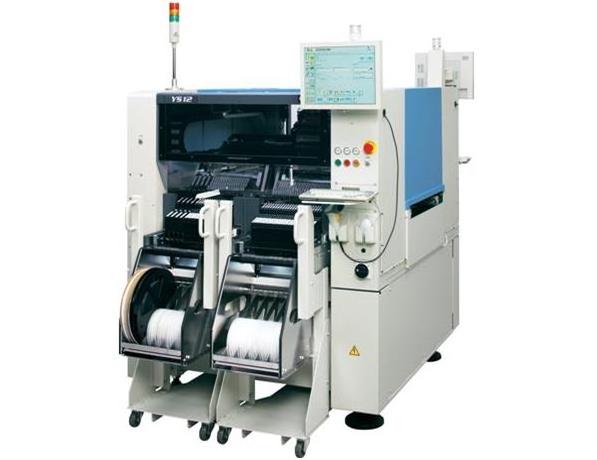

High precision circuit board making machine smd Yamaha YS12 pick and place machine for LED/ PCB mounting
Product specification:
|
Model |
YS12 (Model : KHY-000) |
|
Applicable PCB |
L510*W460mm to L50*W50mm |
|
Through-put (Optimum) |
36,000CPH ( 0.1sec/CHIP Equivalent ) |
|
Mounting accuracy (Yamaha's standard components) |
Absolute accuracy (μ+3σ) : +/-0.05mm/CHIP Repeatability(3σ) : +/-0.03mm/CHIP |
|
Applicable components |
0402(Metric base) to 32*mm components (Note 1)*Correspondence since Jan., 2010 |
|
Number of component types |
120 types(Max, 8mm tape reel conversion) |
|
Power supply |
3-Phase AC 200/208/220/240/380/400/416V +/-10% 50/60Hz |
|
Air supply source |
0.45MPa or more, in clean, dry states |
|
External dimension(Note 2) |
L1,254~W1,440~H1,450mm(cover top)
|
|
Weight |
Approx. 1,340kg |
Packing method:
1)Standard box package for light and small item;
2)Strong wood package for heavy and large equipment;
Shipping way:
1)By air ,for sample and small package ,wordwide express like DHL,UPS,FedFX,EMS....
2)By sea, for large package and quantity;
3)By car or other ways as customer requested;
1) This is the first time I use this kind of machine, is it easy to operate?
There is english manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
3) MOQ ?
1 set machine, mixed order is also welcomed.
4) How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
F.Send your order by air or by sea.
