Spindle ¢ 240mm, hyperbolic heavy rocker, expand chuck , multi-point brake, hydraulic drive lifting, panning left and right on the
middle.Guide rail length 6000mm，use of plate welding.
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
LT
-
Dimension(L*W*H):
-
80*11*5m
-
Weight:
-
80 KG
-
Speed:
-
100-300m/min
-
Capacity:
-
30-80tons/day
-
After-sales Service:
-
we have overseas service office in 13 countries.
-
Heating method:
-
Steam/Electrical/Gas/Oil
-
After-sales Service Provided:
-
Field maintenance and repair service
-
Marketing Type:
-
New Product 2020
-
Keywords:
-
corrugated carton production line
-
Name:
-
box making machine
Quick Details
-
Application:
-
packaging
-
Packaging Material:
-
Paper
-
Voltage:
-
380v50hz (customization)
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
LT
-
Dimension(L*W*H):
-
80*11*5m
-
Weight:
-
80 KG
-
Speed:
-
100-300m/min
-
Capacity:
-
30-80tons/day
-
After-sales Service:
-
we have overseas service office in 13 countries.
-
Heating method:
-
Steam/Electrical/Gas/Oil
-
After-sales Service Provided:
-
Field maintenance and repair service
-
Marketing Type:
-
New Product 2020
-
Keywords:
-
corrugated carton production line
-
Name:
-
box making machine
Product Description

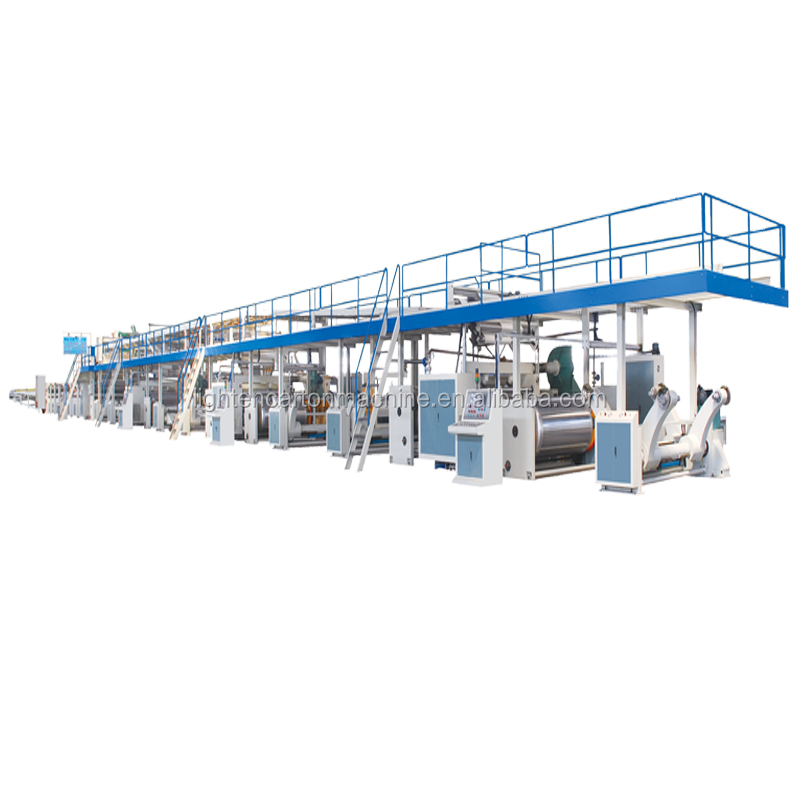

Fully Automatic 3/5/7ply corrugated cardboard production line
Corrugated paperboard production line includes mill roll stand,single facer,pre-heater jar,conveyor bridge,gluing machine,thin
blade slitter scorer,NC cut off machine and auto-stacker,then produce high quality board,which can reach high speed and high performance.
We can produce the 3ply,5ply and 7ply corrugated cardboard production line,
blade slitter scorer,NC cut off machine and auto-stacker,then produce high quality board,which can reach high speed and high performance.
We can produce the 3ply,5ply and 7ply corrugated cardboard production line,
width ranges from 1400mm to 2500mm,production speed ranges from 60 to 300 meter/min.
Customer can choose production capacity according to his own needs.
steam heating /electrical heating /oil heating
Flute: A / B / C / E / F Flute Optional ( Flute height from 0.7mm to 4.2mm Custom-made )
Flute: A / B / C / E / F Flute Optional ( Flute height from 0.7mm to 4.2mm Custom-made )
ZJ-V5B hydraulic shaftless mill roll stand
-
Pre-heater
roller ￠900mm，including pressure container certificate.Electric adjustment wrap angle。Wrap angle can adjust the paper preheat area
in the range of 360°.
in the range of 360°.
SF-320C fingerless single facer
Corrugated main roller ￠320mm，material with 48CrMo alloy steel,tungsten carbide dealing,Tile roll modular group lifting
transfer.Airbag ballasting structure，import main bearing，PLC automatic control glue，HMI touch screen，Breaks automatic parking
relief，steam heating way.
transfer.Airbag ballasting structure，import main bearing，PLC automatic control glue，HMI touch screen，Breaks automatic parking
relief，steam heating way.
GM-20 double glue machine
Glue roller diameter 269mm.Each independent frequency motor drive, glue roller diameter 269mm.Each independent frequency motor
drive,PLC adjust glue gap and HMI.
drive,PLC adjust glue gap and HMI.
SM-F type double facer
Rack 360 mm GB channel，Chrome hot plate 600 mm *16 pieces，The whole structure of the hot plate design.PLC automatic control press
plate. Temperature display, frequency motor.
plate. Temperature display, frequency motor.
Thin blade slitter scorer
(Zero Pressure Line）
Tungsten alloy steel, five knives eight lines，zero-pressure line type. Schneider servo computer automatically discharge knife,
suction outlet width automatically adjusted.
suction outlet width automatically adjusted.
NC cutter helical knives
Full AC servo control, energy storage brake, helical blade structure, oil-immersed gears,10.4-inch touch screen display.
Computer gantry automatic stacking machine
Servo drive platform lifting, three section of frequency transport，automatic points stack discharge,Imported high-strength belt
output, out paper side standard transport aircraft.
output, out paper side standard transport aircraft.
ZJZ glue station system
Customers -owned pipeline。Glue configuration is composed by carrier tank、main tank、storage tank、and send plastic pump、back plastic
pump.
pump.
Optional
Automatic splicer
Automatic glue kitchen system
Bridge correction machine control system
Multi-cassette positive pressure single facer
Company Introduction
After Sales Service
1. GUARANTEE: WE PROVIDE 5-YEAR GUARANTEE WITH SPARE PARTS IN FREE, AND WE CAN CHANGE THE PARTS DAMAGED BY NORMAL OPERATION IN
THIS PERIOD.
THIS PERIOD.
2. WE HAVE ENGINEER SERVICE TEAMS IN OVERSEAS COUNTRIES. WE CAN PROVIDE BEST CONVENIENT SERVICE BY 24 HOURS.
3. INSTALLATION: WE WILL DISPATCH 1 TECHNICIAN TO INSTALL MACHINE FOR CUSTOMER. BUT THE EXPENSE INCLUDING AROUND-TICKET, LOCAL
HOTEL, FOOD, LOCAL TRANSPORTATION SHOULD BE BORN BY BUYER, AND THE SALARY FOR EACH TECHNICIAN IS USD100 EVERY DAY AND PAID BY
BUYER.
4. 24 HOURS ONLINE SERVICE, PROVIDING FREE QUICK-WEAR PARTS,
ENGINEER AVAILABLE TO SERVICE OVERSEAS IF NECESSARY.
PRODUCT CERTIFICATED BY CE AND SO ON.
3. INSTALLATION: WE WILL DISPATCH 1 TECHNICIAN TO INSTALL MACHINE FOR CUSTOMER. BUT THE EXPENSE INCLUDING AROUND-TICKET, LOCAL
HOTEL, FOOD, LOCAL TRANSPORTATION SHOULD BE BORN BY BUYER, AND THE SALARY FOR EACH TECHNICIAN IS USD100 EVERY DAY AND PAID BY
BUYER.
4. 24 HOURS ONLINE SERVICE, PROVIDING FREE QUICK-WEAR PARTS,
ENGINEER AVAILABLE TO SERVICE OVERSEAS IF NECESSARY.
PRODUCT CERTIFICATED BY CE AND SO ON.
5. WE HAVE OVERSEAS SERVICE OFFICE IN 13 COUNTRIES NOW, WE CAN PROVIDE BEST AFTER SALE SERVICE FOR MY ALL CUSTOMERS.
