Quick Details
-
Coil Number:
-
AUTOTRANSFORMER
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
LeiLang
-
Model Number:
-
SG-25KVA
-
Product name:
-
Isolation Transfomer
-
Rated capacity:
-
25KVA
-
Input Voltage:
-
Customized
-
Output Voltage:
-
Customized
-
Frequency:
-
50/60Hz
-
Vector group:
-
Dyn11/Yyn0
-
Winding material:
-
Enameled Copper/Aluminum
-
Core material:
-
CRGO Silicon Steel Core
-
Advantage:
-
Vaccum impregnation process
-
Cooling Method:
-
Natural Air Cooling
Quick Details
-
Use:
-
Power
-
Phase:
-
Three
-
Coil Structure:
-
EI
-
Coil Number:
-
AUTOTRANSFORMER
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
LeiLang
-
Model Number:
-
SG-25KVA
-
Product name:
-
Isolation Transfomer
-
Rated capacity:
-
25KVA
-
Input Voltage:
-
Customized
-
Output Voltage:
-
Customized
-
Frequency:
-
50/60Hz
-
Vector group:
-
Dyn11/Yyn0
-
Winding material:
-
Enameled Copper/Aluminum
-
Core material:
-
CRGO Silicon Steel Core
-
Advantage:
-
Vaccum impregnation process
-
Cooling Method:
-
Natural Air Cooling
|
Product Name
|

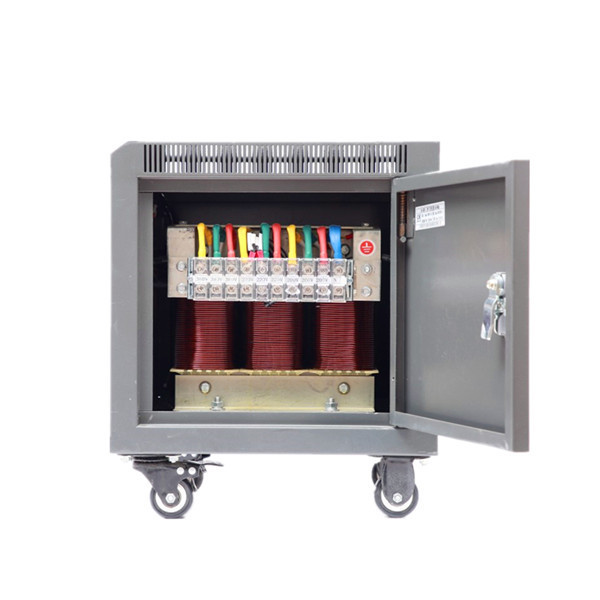

25KVA three phase step down transformer 600V 480V 415V 380V 230V 220V 208V for machine tools
|
|
|
Product Model
|
SG/QZB/SBK/ZSG/SBDG/EPS UPS
|
|
|
Winding Material
|
Enameled copper wire / aluminum wire or aluminum foils
|
|
|
Capacity
|
0.1KVA-2500KVA
|
|
|
Input Voltage
|
Customized
|
|
|
Output Voltage
|
Customized
|
|
|
Frequency
|
50/60Hz
|
|
|
Connection Type
|
DYN11/YYN0
|
|
|
Insulation Level
|
F/H
|
|
|
Enclosures Protection Level
|
IP20/IP24 /IP65 or customized
|
|
|
Pressure-tight Test
|
Primary to secondary2.5KV/min;
Primary to safety ground2.5KV/min; Secondary to safety ground1.5KV/min |
|
|
Insulation Resistance
|
Primary to secondary 2500V>100megohm;
Primary to safety ground 2500V>100megohm; Secondary to safety ground 1500V>100megohm |
|
|
Ground Resistance
|
25A<100milliohm
|
|
|
Induction Withstand
Voltage Test
|
125Hz / 800V / 60s
|
|
|
Cooling Method
|
Natural or air cooling
|
|
|
Temperature Rise
|
≤125K
|
|
|
Transformation Ratio
|
<3%
|
|
|
Air Carrying Current
|
<3%
|
|
|
Impedance Voltage
|
about 4.5%
|
|
|
Total Losses
|
4%
|
|
|
Efficiency
|
80%--99%
|
|
|
Operating Temperature
|
-15℃～40℃ （40℃, 90%R.H., 56days）
|
|
|
Storage Temperature
|
-25℃～100℃（40℃, 90%R.H., 56days）
|
|
|
Certificate
|
CE,ISO
|
|
|
The technical parameter for reference only, for exactly technical information, please feel free to contact us!
|
|
|
Leilang-Electric is located in Shanghai, China. We are specialized in manufacturing all kinds of transformers, voltage stabilizers, voltage regulators, reactors, etc.They are widely used in industrial equipment, CNC machinery, power generation, new energy, coal, metallurgy, petroleum, chemical, railway transportation, urban infrastructure and other areas.
We hold the quality management system certificate compliant to the ISO 9001:2015 standard. All kinds of products hold CE certificate, and many third-party testing certificate. Our products can meet the electrical safety requirements of many countries, such as SASO, UL, etc.
Our products are sold to Europe, North & South America, Oceania, Asia and Africa, more than 100 countries and regions in the world are using Leilang-Electric products. Products’ quality and technical service are recognized by all customers around the world, and we have cooperative distributors in some countries.
Leilang-Electric will continue to carry forward the spirit of integrity management, technological innovation and win-win cooperation, provide top quality products and superior services to every customer, and produce more energy efficient electrical equipment, for our better tomorrow.
Packing Details : Wooden box or customized
Delivery Details : Generally it is 5-30 days after order of products.
