Quick Details
-
Number Of Conductors:
-
1
-
Color:
-
Black/White/Grey
-
Dielectric:
-
SPE/FPE
-
Impedance:
-
75Ohms
-
PVC Degree:
-
65,68,70,75
-
Braiding:
-
Al or Cu
-
Conductor:
-
CCA/CCS/CU
Quick Details
-
Brand Name:
-
YOUXIN
-
Model Number:
-
F11-60BV-CCS
-
Place of Origin:
-
Zhejiang, China
-
Number Of Conductors:
-
1
-
Color:
-
Black/White/Grey
-
Dielectric:
-
SPE/FPE
-
Impedance:
-
75Ohms
-
PVC Degree:
-
65,68,70,75
-
Braiding:
-
Al or Cu
-
Conductor:
-
CCA/CCS/CU

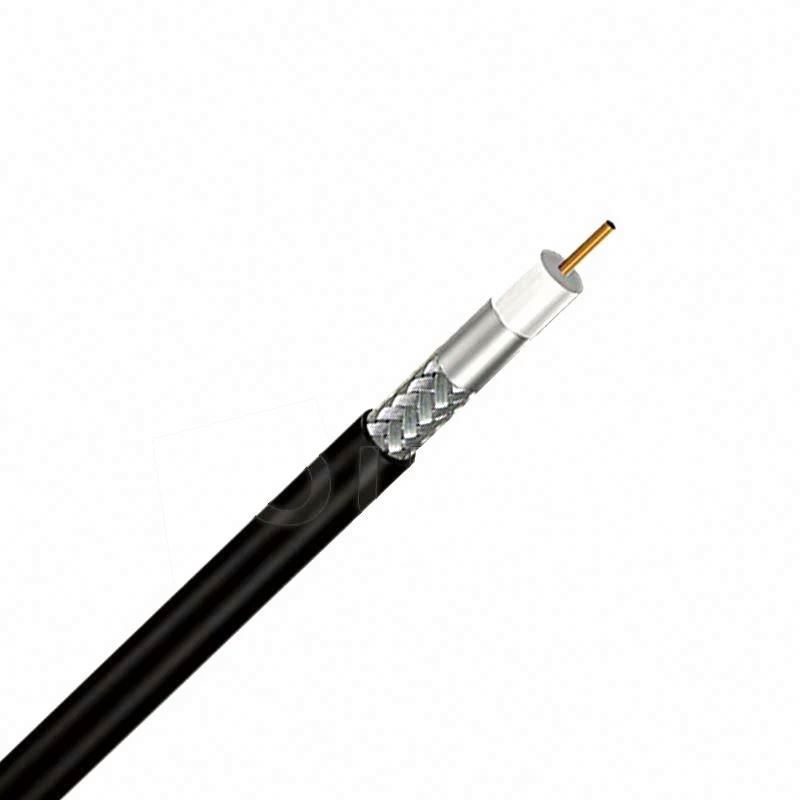

F11 coaxial Cable, 1.63±0.01mmCCS(20%)+FPE7.11±0.05mm+ bonded AL foil+96/0.16AL wire+PVC10.03±0.2mm(70 °C), 305m wood drum.
Features
Minimum Bend Radius: 10.2mm(0.253”)
Maximum Pulling Tension: 10.2mm(0.253”)
Capacitance: 15.3+/-0.1 pF/feet,(50+/-3 nF/km)
Impedance: 75±2ohms
Velocity of Propagation: 88% (Nominal)
Maximum DC Loop Resistance:
1.61 ohms/1000 feet (2.52 ohms/km)
Attenuation:@68 F(20°C)
