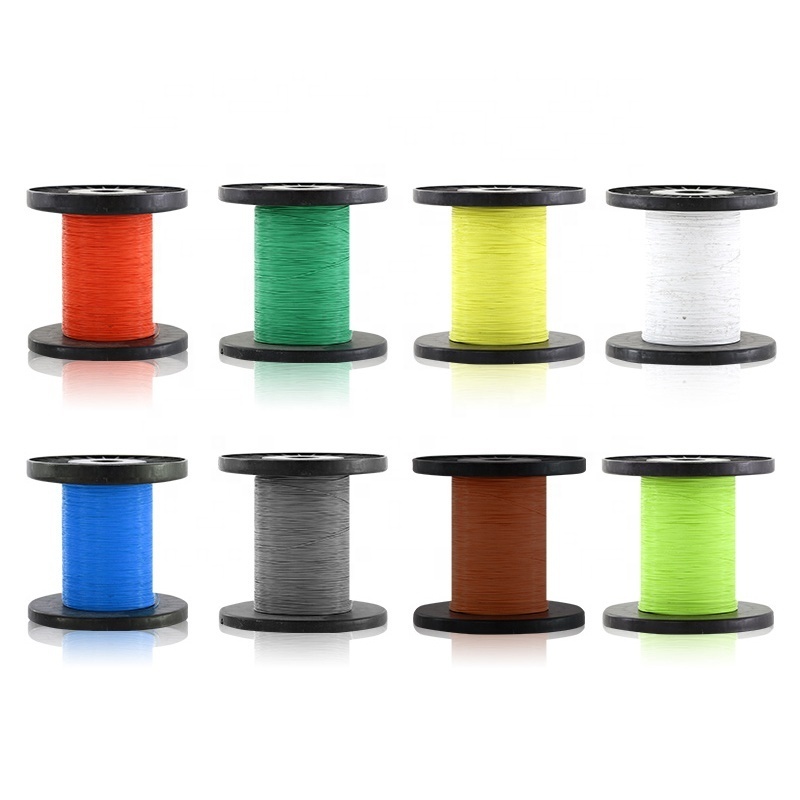

OEM VDE approval FEP PFA PTFE ETFE insulated wire high temperature extra thin coated heating electrical copper wire
OEM VDE approval FEP PFA PTFE ETFE insulated wire high temperature extra thin coated heating electrical copper wire
OEM VDE approval FEP PFA PTFE ETFE insulated wire high temperature extra thin coated heating electrical copper wire
OEM VDE approval FEP PFA PTFE ETFE insulated wire high temperature extra thin coated heating electrical copper wire
OEM VDE approval FEP PFA PTFE ETFE insulated wire high temperature extra thin coated heating electrical copper wire
OEM VDE approval FEP PFA PTFE ETFE insulated wire high temperature extra thin coated heating electrical copper wire
OEM VDE approval FEP PFA PTFE ETFE insulated wire high temperature extra thin coated heating electrical copper wire
OEM VDE approval FEP PFA PTFE ETFE insulated wire high temperature extra thin coated heating electrical copper wire

OEM VDE approval FEP PFA PTFE ETFE insulated wire high temperature extra thin coated heating electrical copper wire

FOB Reference Price: Get Latest Price
≥5000 Meters
US $0.5
≥20000 Meters
US $0.2
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Insulation Material:
FEP PFA PTFE ETFE
Place of Origin:
Zhejiang, China
Color:
Black Blue Green Red Yellow White
Insulation:
PVC Insulation Cable
Product name:
Copper Core PVC Insulation Wire
Certification:
UL
Conductor:
Copper Core Flexible copper Stranded copper Solid copper
Material:
Copper FEP
Shape:
Round
Name:
polytetrafluoroethylene wire
Packing:
100m/roll

Quick Details

Application:
building/Electrical equipment
Conductor Material:
Copper/tinned
Conductor Type:
Solid Stranded
Insulation Material:
FEP PFA PTFE ETFE
Place of Origin:
Zhejiang, China
Color:
Black Blue Green Red Yellow White
Insulation:
PVC Insulation Cable
Product name:
Copper Core PVC Insulation Wire
Certification:
UL
Conductor:
Copper Core Flexible copper Stranded copper Solid copper
Material:
Copper FEP
Shape:
Round
Name:
polytetrafluoroethylene wire
Packing:
100m/roll
Free Sample
Pay Attention

Please contact us to confirm the order before placing , otherwise the goods will not be delivered.

Product Description
NAME/DESCRIPTION
TYPE
UL1330
Insulation
FEP TEFLON
Rated Temperature
200℃
Rated voltage
600V
Standard
UL758,UL1581
Test
VW-1  Horizontal flame Test
Certificate
UL ROHS
Color
White, blue, red, black,yellow,green, transparent, two-colors
Application
Home appliance, lightning lamps, small motors, temperature sensors elec tromagnetic coils,automotive interior cables,electronic appliance and etc.
Conductor
Insulation
Max.Conductor Resistance DC 20℃ Ω/km
Packing
AWG
Conductor Construction No./dia.(mm)
Diameter
(mm)
Insulation Thickness
(mm)
Out Diameter
(mm)
m/coil
28
1/0.32
0.32
0.51
1.34
227.0
305
7/0.127
0.38
0.51
1.40
239.0
19/0.08
0.40
0.51
1.42
239.0
26
1/0.404
0.4
0.51
1.42
143.0
305
7/0.16
0.48
0.51
1.50
150.0
19/0.1
0.50
0.51
1.52
150
24
7/0.02
0.60
0.51
1.62
94.2
305
19/0.12
0.60
0.51
1.62
94.2
22
7/0.254
0.76
0.51
1.78
59.4
610
19/0.15
0.75
0.51
1.78
59.4
20
7/0.32
0.96
0.51
1.98
36.7
610
19/0.19
0.95
0.51
1.98
36.7
18
7/0.404
1.21
0.51
2.23
23.2
610
Product Description
Contact us
Certifications
Our Service
FAQ

FAQ
Q: Can you make the product as per client's requirement?
A: Yes, we can make it with your exact requirement.

Q: What are your payment terms?
A: T/T (50%-90% as despot, the rest will be paid before delivery), L/C at sight

Q: Can I visit your factory before the order?
A: Yes, welcome to our factory to check the quality.

Q: Where is your nearest loading port?
A:Shanghai or Hangzhou in China

Q: Do you accept small quantity order?
A: Of course we do.

Q: Can we choose different material?
A: Yes, the material can be chose according to your requirement.

Q: And what is your shipment and delivery time?
A: By sea. Normally 7 to 14 Days for delivery, according to your order quantity.

Q: And what's your packing?
A: carton cases inside, export wooden cases outside.
