- Product Details
- {{item.text}}
Quick Details
-
Dimension(L*W*H):
-
4250*1900*1350mm
-
Power (kW):
-
32.5kw
-
Weight (KG):
-
4800 kg
-
Warranty:
-
1 year
-
Model:
-
SLXC1400HZ
-
Processing Dia:
-
300/400mm
-
Veneer Thickness:
-
0.4-4.0mm
-
Weight:
-
4800kg
-
Power:
-
22.5kw
-
Processing length:
-
1350mm
-
Roller diameter:
-
103mm
-
Cuttting width:
-
400-2000mm
-
Over dimension:
-
4000* 2600*1350mm
-
Marketing Type:
-
Hot Product 2021
-
Certification:
-
ISO9001
Quick Details
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Sanletian
-
Voltage:
-
380/440v
-
Dimension(L*W*H):
-
4250*1900*1350mm
-
Power (kW):
-
32.5kw
-
Weight (KG):
-
4800 kg
-
Warranty:
-
1 year
-
Model:
-
SLXC1400HZ
-
Processing Dia:
-
300/400mm
-
Veneer Thickness:
-
0.4-4.0mm
-
Weight:
-
4800kg
-
Power:
-
22.5kw
-
Processing length:
-
1350mm
-
Roller diameter:
-
103mm
-
Cuttting width:
-
400-2000mm
-
Over dimension:
-
4000* 2600*1350mm
-
Marketing Type:
-
Hot Product 2021
-
Certification:
-
ISO9001
|

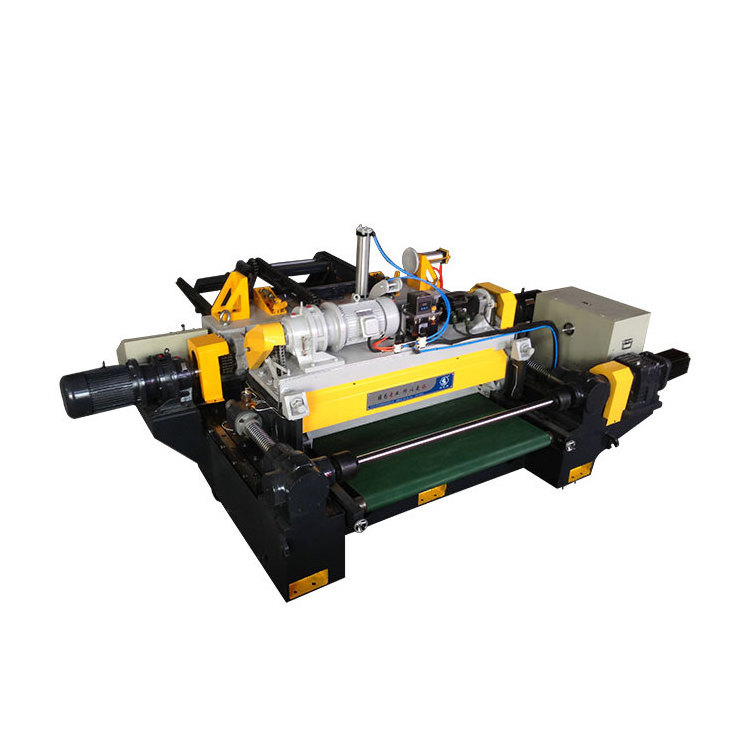

SLXC-1400HZ CNC Veneer Peeling And Cutting Machine
|
||||
|
Model
|
Processing Dia
|
Processing Length
|
Peeling Speed
|
Veneer Thickness
|
|
SLXC1400HZ
|
300/400mm
|
1153m/min
|
0.4--4.0mm
|
|
|
After Dia
|
Total Weight
|
Power
|
Our Messure
|
Cutting Width
|
|
30mm
|
4800kg
|
32.5kw
|
4250×1900×1350
|
400-2000mm
|
|
Materrial
|
The straight log or remained log core from spindle veneer peeling lathe
|
|||
|
Main features
|
1.Based on the principle of veneer peeling lathe and veneer cutting machine, this type of machine is more advanced with the digital control system, durable magnesium alloy nut and screw, stable rear axle drive system, and automatic knife slit adjusting system adopted.
2.Stable structure of machine, fit for miscellaneous tree wood, eucalyptus, maple and pine etc,3.Two fuctions in one machine, so the space and labor can be save.
4.With automatic knife slit adjusting system adopted, the veneer is more smooth and even, and the machine runs more smoothly when peeling big diameter log.
|
|||
|
Brief Introduction
|
The most update CNC Veneer Peeling And Cutting Machine launched by our company is versatile with intergrating veneer peeling lathe and veneer cutting machine in one machine. It is perfect disigned, the veneer thickness error is within 0.05mm, and cutting width error is within 2.5mm.
|
|||
Packaging & Shipping
as the clients required
Our Services
Pre-sale
1.provide the free consultation of the machine
2.provide the standard device and the flow chart
3.according to the clients special requirement, offering the reasonable plan the free design to help to select the equipment
4.welcome to visit the factory
During sale
1. inspect the machine before leaving the factory
2.oversea install and debug the equipment
3.train the first-line operator
After sale
1.24 hour online service
2.provide the video with install and debug the machine
3.privide technical exchanging
