Use function
1. Intelligent water saving: automatic induction control on and off, extend hand or water container and washing articles into the sensing range, the faucet will automatically discharge water, and stop discharging water after leaving, with remarkable water-saving function.
2. Time out protection: 30 seconds time-out washing automatic water shut-off function, to avoid waste of water resources caused by foreign matters in the sensing range for a long time.
3. Convenient and sanitary: the switch water is completely completed by the sensor automatically, and the hands do not need to touch the faucet to effectively avoid cross infection of bacteria.
4. Intelligent power saving: modern digital technology is adopted for the induction faucet, with ultra-low energy consumption (4 No.5 alkaline batteries are used for DC products, with static current ≤ 60 μ a).
- Product Details
- {{item.text}}
Quick Details
-
Design Style:
-
Modern, Traditional, Contemporary, Farmhouse, Industrial, Midcentury, Rustic, Minimalist, Coastal
-
Material:
-
Stainless steel
-
Advanced Function:
-
can be customized
-
Mix. Pit Spacing:
-
can be customized
-
Flushing Flowrate:
-
can be customized
-
Weight:
-
can be cuatomized
-
Remote Control:
-
can bec customized
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
SECCICON
-
Model Number:
-
AR6800
-
Size:
-
can be customized
-
Function:
-
Hot Cold Water Mixer
-
Usage:
-
automatic flush sensor toilet
-
Water Pressure:
-
can be customized
-
Type:
-
Bathroom Sanitary Ware Wc Toilet
-
Guarantee:
-
5 Years Taps
-
OEM and ODM:
-
Highly Welcomed
-
Quality Guarantee:
-
2 YAERS
Quick Details
-
Warranty:
-
2 years
-
Project Solution Capability:
-
graphic design, 3D model design, total solution for projects, Cross Categories Consolidation, NONE, Others
-
Application:
-
Hotel, Villa, Apartment, Office Building, Hospital, School, Mall, Sports Venues, Leisure Facilities, Supermarket, Warehouse, Workshop, Park, Farmhouse, Courtyard
-
Design Style:
-
Modern, Traditional, Contemporary, Farmhouse, Industrial, Midcentury, Rustic, Minimalist, Coastal
-
Material:
-
Stainless steel
-
Advanced Function:
-
can be customized
-
Mix. Pit Spacing:
-
can be customized
-
Flushing Flowrate:
-
can be customized
-
Weight:
-
can be cuatomized
-
Remote Control:
-
can bec customized
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
SECCICON
-
Model Number:
-
AR6800
-
Size:
-
can be customized
-
Function:
-
Hot Cold Water Mixer
-
Usage:
-
automatic flush sensor toilet
-
Water Pressure:
-
can be customized
-
Type:
-
Bathroom Sanitary Ware Wc Toilet
-
Guarantee:
-
5 Years Taps
-
OEM and ODM:
-
Highly Welcomed
-
Quality Guarantee:
-
2 YAERS
Product Description

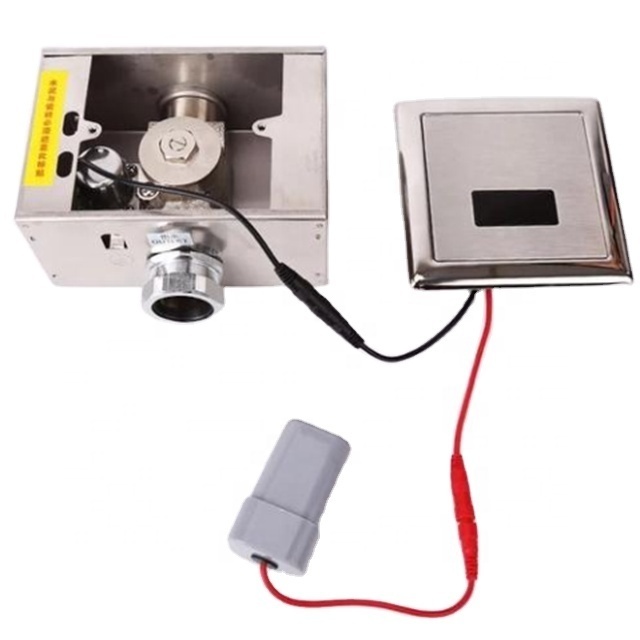

The principle of the automatic flushing of the induction toilet is realized by turning on the solenoid valve through the infrared induction switch.
The infrared induction switch is mainly controlled by human pyroelectric infrared sensor module + Power IC.
Pyroelectric infrared sensor for human body: the human body has a constant temperature, generally at 37 degrees, so it will emit infrared light with a specific wavelength of about 10um. The passive infrared probe is used to detect the infrared light emitted by human body. About 10um infrared light emitted by human body is enhanced by fennel filter and then gathered on the infrared induction source. The pyroelectric element is usually used in the infrared induction source. When the infrared radiation temperature of the human body changes, the element will lose the charge balance and release the charge outward. The subsequent circuit can trigger the switch action after detection and processing. When someone enters the sensing range of the switch, the special sensor detects the change of infrared spectrum of the human body, and the switch automatically turns on the load. If the person does not leave the sensing range, the switch will continue to turn on; if the person leaves or has no action in the sensing area, the switch will automatically turn off the load after the time delay (time adjustable time 5-120s). The sensing angle of the infrared induction switch is 120 degrees, the distance is 7-10 meters, and the delay time is adjustable.
The full name of infrared induction switch is pyroelectric infrared induction switch. Any object in nature, as long as the temperature is higher than absolute zero (- 273 ℃), always emits infrared radiation. The higher the temperature of the object, the smaller the peak wavelength of the infrared radiation it emits, and the greater the energy it emits. When a person enters the sensing range, the pyroelectric infrared sensor detects the change of infrared spectrum of the human body, and automatically turns on the load. If a person does not leave the sensing range, it will continue to turn on; after a person leaves, it will automatically turn off after a delay
|
Features
|
|
|
Power supply
|
6V, 4.5V lithium battery
|
|
Production process
|
Brass precision casting, chrome plating, eternal luster; streamlined design, strong modern sense
|
|
Maintenance
|
built in filter to prevent impurities from flowing into solenoid valve to affect normal operation, and easy to clean
|
|
Applicable places
|
hotels, hotels, office buildings, airports, medical institutions and other public places
|
|
Intelligent power saving
|
four No.5 alkaline batteries are used for DC products, with static current ≤ 60 μ a
|
-
5. Strong adaptability: sensitivity (range) can be adjusted according to different use environment.
-
6. Production process: Brass precision casting, surface chrome treatment, eternal luster; streamline design, strong modern sense.
-
7. Easy maintenance: built in filter to avoid impurities flowing into solenoid valve to affect normal operation, and easy cleaning.
-
8. Weak current prompt: DC type products are equipped with battery replacement prompt function. When the battery power is insufficient, the indicator light is always on, prompting to replace the battery in time.
-
9. Applicable places: hotels, hotels, office buildings, airports, medical institutions and other public places.
Detailed Images
Technical performance editing:
1. Auto set sensing area
2. There is an object entering the sensing area, which is fixed and automatically adjusted
3. When the light changes, the sensor adapts automatically
4. Automatic water cut-off timeout protection function
5. Ultra low power consumption
6. Stability and reliability of equipment
