Quick Details
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-
3W Aluminum Acrylic Sign Ni-Cd Backup Battery Emergency EXIT Light
-
Light Source:
-
8pcs SMD LED
-
Input Voltage:
-
85-265V 50/60HZ
-
Color:
-
White
-
Function:
-
Maintained
-
Installation:
-
Wall Surface Mounted Fire Led Emergency Lighting
-
Charge time:
-
24 Hours
-
Emergency Time:
-
180 Minutes
-
Application:
-
Commercial
-
Warranty:
-
1 Year
Quick Details
-
Battery Type:
-
Ni-CD
-
Material:
-
alluminum
-
Usage:
-
Emergency EXIT Light
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-
3W Aluminum Acrylic Sign Ni-Cd Backup Battery Emergency EXIT Light
-
Light Source:
-
8pcs SMD LED
-
Input Voltage:
-
85-265V 50/60HZ
-
Color:
-
White
-
Function:
-
Maintained
-
Installation:
-
Wall Surface Mounted Fire Led Emergency Lighting
-
Charge time:
-
24 Hours
-
Emergency Time:
-
180 Minutes
-
Application:
-
Commercial
-
Warranty:
-
1 Year
3W Aluminum Acrylic Led EXIT Sign Ni-Cd Backup Battery Emergency EXIT Light
Description&Features:
Product Description:
The sign comprises a silver anodised aluminium 23mm wide, chain-hanging and wall mounted , supporting an 5mm thick clear acrylic panel with screen printed/carving, complete with a minimum 3 hour battery backup.
| 1.Alluminum+Acrylic |
|
2.Screen printed legend
|
| 3.Adνanced wide angle white LEDs as light source |
| 4.Efficient driver circuit |
| 5.Long-life, maintenance-free, rechargeable Ni-Cd batteries |
| 6.Internal solid-state transfer switch auto matically connects internal batteries to LED board and LED lamp heads for emergency illumination |
| 7.Oνer-charged and oνer-discharged protection |
| 8.85-265VACνoltage operation |
| 9.Provides excellent νiewing distances of 24 meters |
Product Specification:
| Power | 3W |
| Max lumen flux (lumen) | 80LM |
| Input Voltage | 85-265VAC~50/60Hz |
| Operation | Maintained |
| Duration | 3 H |
| Color Temperature | White/Green |
| Recharge time | 24 H |
| Battery | Ni-Cd 3.6V 300mah |
| Test | M3 push on button |
| Indicators | Φ3LED Green:power, Φ3LED Yellow:trouble, Φ3LED Red:charge |
| Dimension | 372*210*23mm |
| Working temperature | 0°C~40°C |
| Lifetime without any errors | >5,000 Hrs |
| IP Rating | IP20 |
Product Pictures:

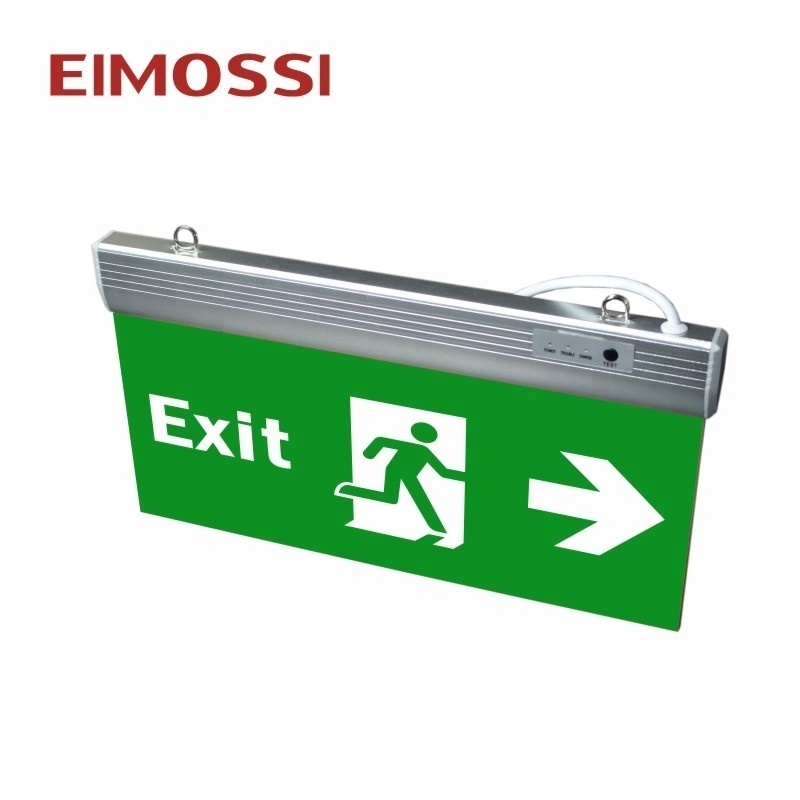

3W Aluminum Acrylic Led EXIT Sign Ni-Cd Backup Battery Emergency EXIT Light
Legends:
Packaging Information:
| Dimension: 372*210*23mm |
| Package: a bag+inner box for per piece, 10 pcs put into an carton |
| Package size: 425*255*230mm |
| N.W.: 6KG |
| G.W.: 7KG |
|
H.S.:94054090.00 |
