Quick Details
-
Framework Size:
-
L1630*W1`500*H2300mm
-
Weight:
-
200Kg
-
Working lifespan:
-
5-8 million times
-
Transit speed:
-
30-40 persons/min
-
Length of the barrier pole:
-
610mm
-
The biggest bearing force of the pole:
-
80kg
-
operation Voltage:
-
DC24V
-
Power supply:
-
220/110V 50/60Hz(can be customised)
-
Material:
-
202SS/304Ss/316SS
-
Warranty:
-
2 years
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Yuan
-
Model Number:
-
YAT6507
-
Framework Size:
-
L1630*W1`500*H2300mm
-
Weight:
-
200Kg
-
Working lifespan:
-
5-8 million times
-
Transit speed:
-
30-40 persons/min
-
Length of the barrier pole:
-
610mm
-
The biggest bearing force of the pole:
-
80kg
-
operation Voltage:
-
DC24V
-
Power supply:
-
220/110V 50/60Hz(can be customised)
-
Material:
-
202SS/304Ss/316SS
-
Warranty:
-
2 years
Product Description
Full Height Turnstiles are rugged low maintenance solutions for the harshest outdoor conditions. They act as a deterrent against
tailgating and unauthorized entry at your fence line. We have two models, stainless steel or transparent for interior esthetics.
full height turnstile with four arms, the most trusted and secure turnstiles available – fully welded construction suitable for
indoor and outdoor applications.
Dual-laneturnstile .requires a substantially smaller footprint than two individual turnstiles.
tailgating and unauthorized entry at your fence line. We have two models, stainless steel or transparent for interior esthetics.
full height turnstile with four arms, the most trusted and secure turnstiles available – fully welded construction suitable for
indoor and outdoor applications.
Dual-laneturnstile .requires a substantially smaller footprint than two individual turnstiles.
|
Framework material
|
202/304/316 stainless steel
|
|
|
Housing size
|
L1630*W1500*L2300mm
|
|
|
Length of the pole
|
610mm(standard)/500-700mm(optional)
|
|
|
Finishing
|
Brushed serface/polishing surface
|
|
|
Diameter of pole
|
38mm(standard)/48mm
|
|
|
Max tolerance of pole
|
80Kg
|
|
|
Driving force of pole
|
3Kg
|
|
|
Operation voltage
|
DC 24V
|
|
|
Operation current
|
3A/5A(max)
|
|
|
Transit speed
|
30-40 persons/min
|
|
|
Communication interface
|
standard RS485 interface(distance less than 1200m)
|
|
|
Input interface
|
Dry contact signal or +12V level signal or DC12V pulse signal with width of more than 100ms
|
|
|
Working environment
|
indoor, outdoor(with a tent over)
|
|
|
Relative humidity
|
90% no condensation
|
|
|
Warranty
|
2 years
|
|
|
MAIN FUNCTIONS:
|
|
|
|
Automatic type
|
|
|
|
1. Being compatible with several control devices IC/ID card, magcard, bar code, fingerprint and etc.
|
|
|
|
2. Unlocking is quick and reliable
|
|
|
|
3. Direction: single direction, bi-direction(optional), several working modes are optional
|
|
|
|
4. Automatically reset function: It will automatically lock if the pedestrian hasn’t passed through the channel in the pre-set time after the opening. The passing time is adjustable.
|
|
|
|
5. The centre rotor will be set free (default) or locked (optional) automatically when power is off.
|
|
|
|
6. Emergency function:Turnstile gate rotate freely after power off
|
|
|
|
7. Counting Function , LED display
|
|
|
|
8. Memory Function
|
|
|
|
9. With standard input, output interface
|
|
|
|
Manual Type
|
|
|
|
1.The center rotor can only rotate by single direction,but the direction can be changed easily inside
|
|
|
|
2.The structure has no electric devices
|
|
|
Turnstile YAT6507 size drawing

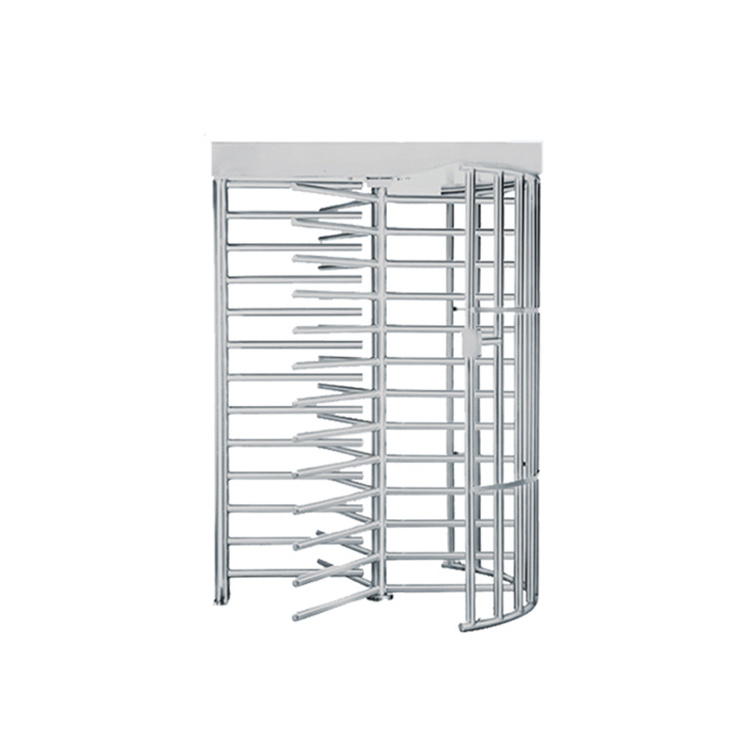

Outdoor full height turnstile YAT6507
Single lane YAT6507
Single lane YAT6516+Dual-lane YAT6508 for outdoor project
Customized ful height turnstile YAT6513 for pedestruan ,wheelchair and bicycle (optional)
