- Product Details
- {{item.text}}
Quick Details
-
Application:
-
Construction site
-
Design Style:
-
all
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Trico
-
Model Number:
-
TF001
-
Product name::
-
Plastic Concrete Formwork
-
Thickness::
-
12/14/15/16/18/20mm
-
Weight:
-
13-32kgs
-
Packing:
-
Pallet Packaging
-
Material:
-
PP Plastic Material
-
Size:
-
1220mm*2440mm
-
Certificate:
-
ISO 9001:2008
-
Color:
-
White / grey/ black
-
Type:
-
Waterproof Plastic Template Wall Formwork
-
Advantage:
-
Quick Assemble
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Online technical support
-
Project Solution Capability:
-
Others
-
Application:
-
Construction site
-
Design Style:
-
all
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Trico
-
Model Number:
-
TF001
-
Product name::
-
Plastic Concrete Formwork
-
Thickness::
-
12/14/15/16/18/20mm
-
Weight:
-
13-32kgs
-
Packing:
-
Pallet Packaging
-
Material:
-
PP Plastic Material
-
Size:
-
1220mm*2440mm
-
Certificate:
-
ISO 9001:2008
-
Color:
-
White / grey/ black
-
Type:
-
Waterproof Plastic Template Wall Formwork
-
Advantage:
-
Quick Assemble
Factory Reuse 60-100 Times Plastic Construction Formwork PP PVC Plastic Formwork Panels For Concrete

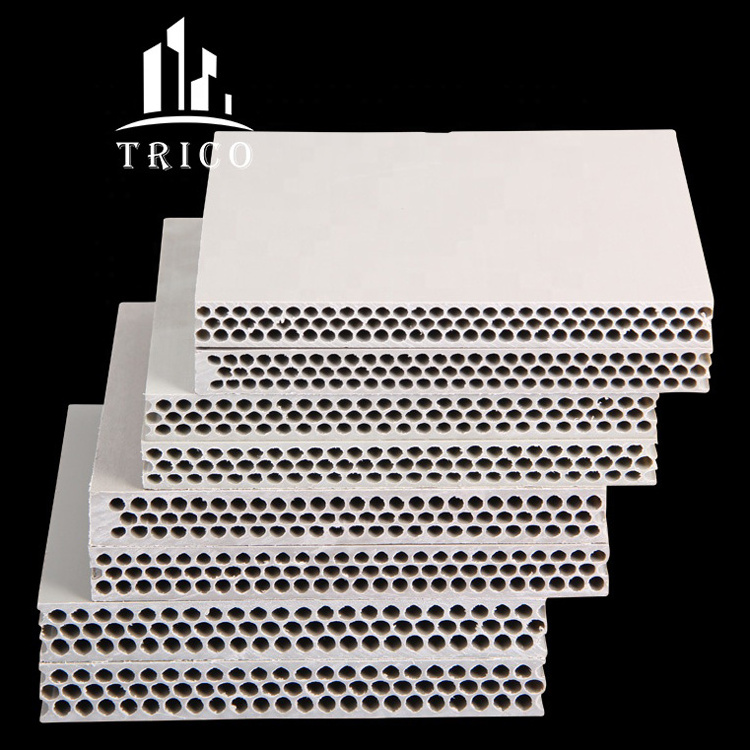

What is Plastic Formwork?
Hollow plastic building formwork is a kind of energy-saving and green environmental protection product, pp plastic combined with macromolecule nano-technology. It is a new product after wood formwork, composite steel formwork, bamboo-wood bonding formwork and all-steel large formwork. It is energy saving and environmental protection,andcan completely replace the traditional steel formwork, wood formwork, square wood. What’s more, its amortization cost is very low.
PP(Polypropylene) Formwork Board Specification
| Size | Weight | Hole type | Packaging | 20GP Quantity | 40HQ Quantity |
| 1220x2440x12mm | 21±1kg | Square Hole | 75pcs/Pallet | 600pcs | 1200pcs |
| 1220x2440x14mm | 24±1kg | Round Hole | 65pcs/Pallet | 520pcs | 1040pcs |
| 1220x2440x15mm | 25±1kg | Round Hole | 60pcs/Pallet | 480pcs | 960pcs |
| 1220x2440x16mm | 27±1kg | Round Hole | 55pcs/Pallet | 440pcs | 880pcs |
| 1220x2440x18mm | 31±1kg | Round Hole | 50pcs/Pallet | 400pcs | 800pcs |
| 1220x2440x20mm | 33±1kg | Round Hole | 45pcs/Pallet | 360pcs | 720pcs |
| 600x1200x15mm | 6.5±0.5kg | Round Hole | 240pcs/Pallet | 1920pcs | 3840pcs |
| If Special Sizes need, please contact with us! | |||||
3. Light Weight
It is lighter, easier to carry and release worker from heavy labor.Manual operation, no crane required reducing 20% labor cost than plywood
5. High Workability
User-friendly, work well with saw,nail,drill,cut,etc. Compatible with other materials such wood,steel,aluminum,etc
6. High Temperature Resistance
The material is polypropylene, the melting point can be as high as 167℃. PP vicat softening temperature of 150℃.
7. Cost-Saving
One set plastic formwork can finish whole high building 2×35Floors, save 60% total budget than plywood and metal formwork
Adjustable Steel Prop/Prop Sleeve/Prop Nut
1. A complete set of steel prop consists of Top Plate, Base Plate,Inner pipe,Outer pipe, Prop Sleeve, Prop Nut and G Pin.
2.The steel prop is easy to assemble and disassemble due to its simple structure.
3. Can be adjusted to any length within its range;it can be reused.
4. Widely used in proping system such as construction,plants and bridge etc.
- Formwork Tie Rod System
- Aluminium Formwork Wall Tie System
- Scaffolding System
- PP Hollow Plastic Formwork
- Steel Formwork Panel with Plywood Forming System
-
Other Plastic Building Materials
1. Quality: Strictly control the quality through three levels. First level, quality test on the producing line. Second level, quality test during warehousing. Third level, quality test before loading.
2. Timeliness: 24 hours online.Provide consulting and quotation services for customers all the time.
3. Veracity: Strictly follow the customer standard to ensure the tolerance range and meet customer's requirement.
4. Integrity: If The customer complains about the quality of the products, our company will actively cooperate with them to solve the problem. If it is the responsibility of our company, we will bear the corresponding responsibility and compensation.
5. Longevity: Establish good long-term relationship with customers.
