Quick Details
-
Model Number:
-
DC10G
-
Product Name:
-
Generator Controller
-
Working votage:
-
DC8~33V Continuous
-
Power consumption:
-
Working:24V:MAX 2W
-
AC Volage Input:
-
1P2W 15VAC-300VAC 50/6OHz
-
Rotate speed sensor Frequency:
-
300-10000Hz
-
MAX Accumulating Time:
-
9999.9Hours(Min Store time:6min)
-
Fuel Relay Output:
-
16 Amp DC+VE Supply voltage
-
Certification:
-
CE
Quick Details
-
Warranty:
-
1 year
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
KAIST
-
Model Number:
-
DC10G
-
Product Name:
-
Generator Controller
-
Working votage:
-
DC8~33V Continuous
-
Power consumption:
-
Working:24V:MAX 2W
-
AC Volage Input:
-
1P2W 15VAC-300VAC 50/6OHz
-
Rotate speed sensor Frequency:
-
300-10000Hz
-
MAX Accumulating Time:
-
9999.9Hours(Min Store time:6min)
-
Fuel Relay Output:
-
16 Amp DC+VE Supply voltage
-
Certification:
-
CE
Product Specifications
Generator Set Diesel Generator Controller DC10G Auto Spare Parts

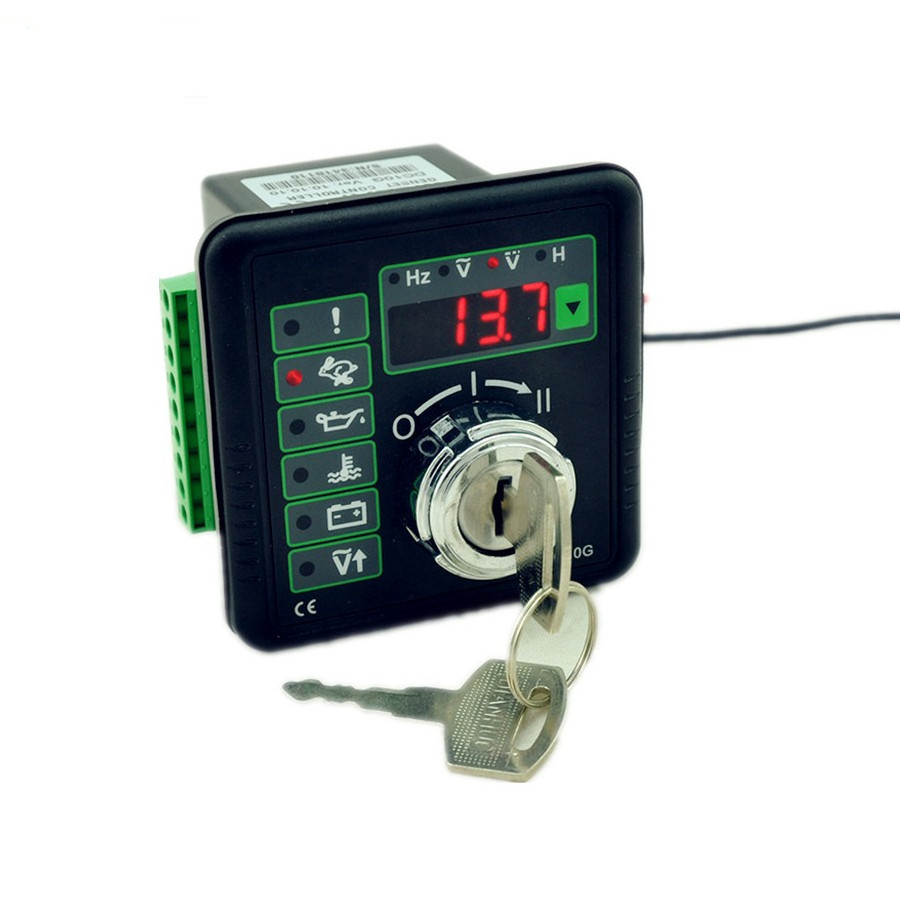

Generator Controller DC10G Generator Spare Parts Manual Start Generator Control Unit DC10G is designed as one of the engine manual start controller. The Hz,Volt, Battery voltage and accumulation time can be displayed through the front face LED screen.This controller is also with various kinds of stop and alarm indications to monitor the genset status.Besides, it can also connect with PC so that parameters can be set through Computer to equip for more different gensets. Also,It can replace the DATAKOM 155.
|
Model
|
DC10G
|
|
Working votage
|
DC8~33V Continuous
|
|
Power consumption
|
Standby:24V:MAX 1W
|
|
|
Working:24V:MAX 2W
|
|
AC Volage Input
|
1P2W 15VAC-300VAC 50/6OHz
|
|
Rotate speed sensor Frequency
|
300-10000Hz
|
|
MAX Accumulating Time
|
9999.9Hours(Min Store time:6min)
|
|
Fuel Relay Output
|
16 Amp DC+VE Supply voltage
|
|
Start Relay Output
|
10 Amp DC+VE Supply valtage
|
|
Alarm output 1
|
16 Amp DC+VE Supply voltage
|
|
Excitation output
|
Max 80mA DC+VE supply voltage
|
|
Swich value input
|
Avalable if connecting with Battery-
|
|
Insulation Intensity
|
Object: among in input/output/power Quote standard: IEC688-1992 Test way: AC2.2kV/1min 3mA leakage current
|
|
Working condition
|
-30-75℃
|
|
Storage condition
|
-40-85℃
|
|
Overall dimension
|
78mm*78mm*72mm
|
|
Panel cutout
|
67mm*67mm
|
|
Weight
|
280g
|
|
Working condition
|
-30~70℃
|
|
Weight
|
110g
|
