Quick Details
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
sinolift
-
MODEL:
-
HMC19D
-
OPENING RANGE:
-
425-1600mm
-
FRAME WIDTH:
-
1260-1600mm
-
ARM HEIGHT:
-
400-600mm
-
ARM LENGTH:
-
1800-2500mm
-
WEIGHT:
-
510-710mm
Quick Details
-
Warranty:
-
1 Year
-
Weight (KG):
-
600
-
Marketing Type:
-
New Product 2024
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
sinolift
-
MODEL:
-
HMC19D
-
OPENING RANGE:
-
425-1600mm
-
FRAME WIDTH:
-
1260-1600mm
-
ARM HEIGHT:
-
400-600mm
-
ARM LENGTH:
-
1800-2500mm
-
WEIGHT:
-
510-710mm

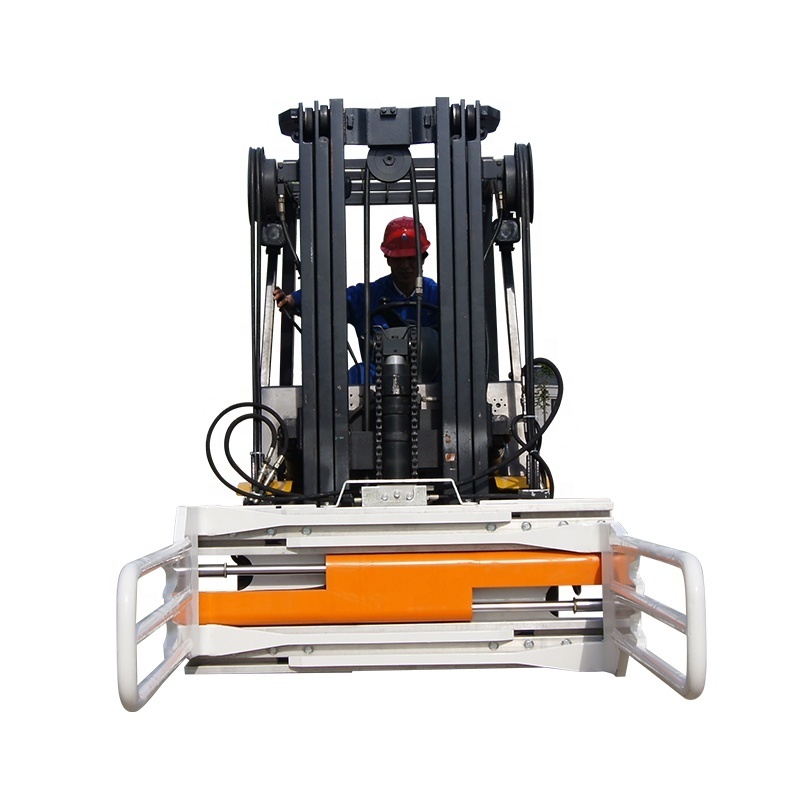

Designed specially to handle foam rubbe or chemical fiber without damaging it, Lateral sliding armdesign for smooth clamping and sideshifting functions are applied for high efficienty, safety, dur-ability and economy, Found in industries that need to handle foam blocks, with high effeciency.Come in wide range of opening and arm design for different load
Specifications
|
CAPACITY@
LOAD CENTER
|
MODEL |
OPENING
RANGE
|
FRAME
WIDTH
|
ARM
HEIGHT
|
ARM
LENGTH
|
MIN TRUCK
CARRIAGE WIDTH
|
VERTICAL
CENTER OFGRAVITY
|
WEIGHT |
EFFECTIVE
THICKNESS
|
HORIZONTALCENTER OFGRAVITY |
| (kg@mm) | A (mm) | W(mm) | D (mm) | B(mm) | M (mm) | VcG (mm) | (kg) | ET (mm) | HCG (mm) | |
| 1900@500 | HMC19D-B002 | 910-2290 | 1260 | 400 | 1800 | 890 | 224 | 510 | 128 | 375 |
| 1900@500 | HMC19D-B006 | 425-2265 | 1600 | 600 | 1800 | 968 | 232 | 660 | 128 | 375 |
| 1900@500 | HMC19D-B008 | 900-2300 | 1260 | 500 | 2500 | 890 | 224 | 660 | 128 | 623 |
| 1900@500 | HMC19D-C001 | 740-2580 | 1600 | 600 | 1800 | 1040 | 233 | 635 | 128 | 370 |
| 1900@500 | HMC19D-C005 | 440-2280 | 1600 | 400 | 1800 | 1040 | 234 | 580 | 128 | 343 |
| 2700@500 | HMC27D-B003 | 760-2600 | 1600 | 400 | 2500 | 928 | 253 | 860 | 128 | 575 |
| 2700@500 | HMC27D-C001 | 760-2600 | 1600 | 400 | 1800 | 980 | 263 | 710 | 148 | 365 |
