Quick Details
-
Brand Name:
-
VICT
-
Model Number:
-
EM276
-
Product Name:
-
fuel injector tester
-
Model:
-
EM276
-
Keyword:
-
Automobile injector detector
-
Type:
-
Automobile fault diagnosis instrument
-
voltage:
-
12V
-
working temperature:
-
37 ° C
-
Usage:
-
Injector Testing Equipment
-
Delivery time:
-
3-7 Working Days
-
Quality:
-
100% Tested
Quick Details
-
Warranty:
-
1 Year
-
Power:
-
/
-
Place of Origin:
-
China
-
Brand Name:
-
VICT
-
Model Number:
-
EM276
-
Product Name:
-
fuel injector tester
-
Model:
-
EM276
-
Keyword:
-
Automobile injector detector
-
Type:
-
Automobile fault diagnosis instrument
-
voltage:
-
12V
-
working temperature:
-
37 ° C
-
Usage:
-
Injector Testing Equipment
-
Delivery time:
-
3-7 Working Days
-
Quality:
-
100% Tested
Product Specification
Feature:
1. This tester can diagnose injector problems, you can use it on each injector individually to test stuck, leaking or burnt-out.
2. It used 12V vehicle battery as power supply.
3. It has 4 pulse modes and in the continuous working mode ( mode 4 ), it can help you identify the injector good or not when you switch off the engine.
4. The lock mode can ensure the testing condition is same.
5. It can work with any fuel pressure tester together.
1. This tester can diagnose injector problems, you can use it on each injector individually to test stuck, leaking or burnt-out.
2. It used 12V vehicle battery as power supply.
3. It has 4 pulse modes and in the continuous working mode ( mode 4 ), it can help you identify the injector good or not when you switch off the engine.
4. The lock mode can ensure the testing condition is same.
5. It can work with any fuel pressure tester together.

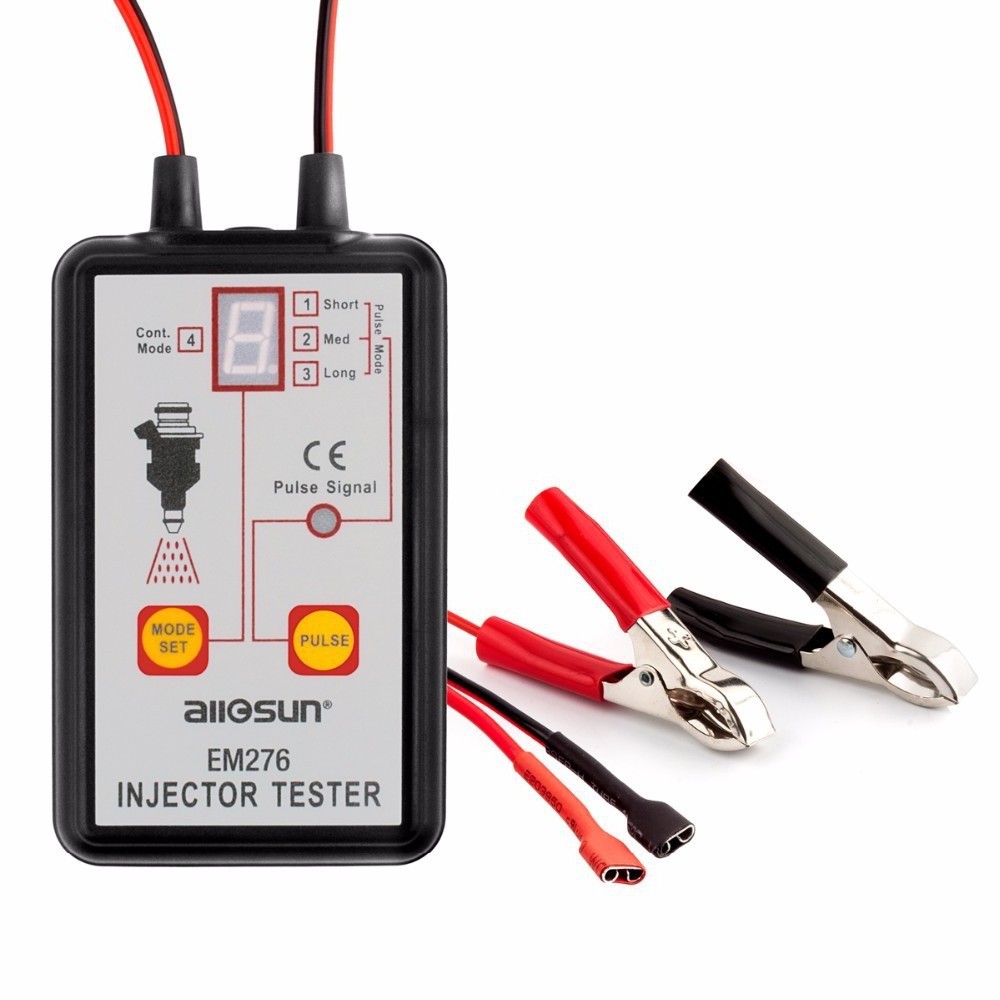

EM276 Automotive Fuel Injection Tester
Diagnose fuel injector issues with four pulse signal output modes, which can be used to test fuel injectors one by one to help confirm stuck, leaking, or burned out conditions. Continuous working mode can help identify the quality of fuel injectors when the engine is turned off. The mode locking function ensures consistency during fuel injector testing. This instrument can be used in conjunction with a fuel pressure tester.
specification:
Power Supply: 12V vehicle battery
Operation Environment: 0 C - 40C, relative humidity < 80%
Storage Environment: -10 C - 50C, relative humidity < 85%
Size: 147x82x29mm (for main body only)
Weight: about 165g
Power Supply: 12V vehicle battery
Operation Environment: 0 C - 40C, relative humidity < 80%
Storage Environment: -10 C - 50C, relative humidity < 85%
Size: 147x82x29mm (for main body only)
Weight: about 165g
Explanations for 4 modes:
Mode 1: the tester outputs 1 pulse, whose pulse width is about 250ms
Mode 2: the tester outputs 50 pulse, every pulse's pulse width is about 7ms
Mode 3: the tester outputs 100 pulse, every pulse's pulse width is about 3.5ms
Mode 4: the tester outputs pulse continuously at the rate of 50 pulses per about 1450ms,
every pulse's pulse width is about 7ms
Mode 1: the tester outputs 1 pulse, whose pulse width is about 250ms
Mode 2: the tester outputs 50 pulse, every pulse's pulse width is about 7ms
Mode 3: the tester outputs 100 pulse, every pulse's pulse width is about 3.5ms
Mode 4: the tester outputs pulse continuously at the rate of 50 pulses per about 1450ms,
every pulse's pulse width is about 7ms
Operation Instructions:
Turn off the vehicle‘s engine
Connect Black / Red Clip to the Negative / Positive terminal of battery
Connect pulse output terminal to the fuel injector
Press the "MODE SET" key to select the desired pulse mode
Press the "PULSE" key, the tester will output pulse to the injector, and then the pulse signal
indicator will light as indication
Turn off the vehicle‘s engine
Connect Black / Red Clip to the Negative / Positive terminal of battery
Connect pulse output terminal to the fuel injector
Press the "MODE SET" key to select the desired pulse mode
Press the "PULSE" key, the tester will output pulse to the injector, and then the pulse signal
indicator will light as indication
