Quick Details
-
Name:
-
0 10v to 4 20ma analog inputs transmitter active signal converter
-
Chnnels:
-
1in 1out, 1in 2 out, 2 in 2 out,etc
-
Power Supply:
-
DC24V, DC12V
-
Accuracy:
-
0.1%
-
Power Consumption:
-
1.2W(1in 1out),1.8W(1in 2out),2.4W(2in 2out)
-
Input Signal:
-
4-20ma,0-75mv,1-5V,0-10Vetc
-
Output Signal:
-
4-20ma,0-75mv,1-5V,0-10Vetc
-
Distribution Voltage:
-
19-26VDC
-
Warranty:
-
5 Years
-
Certificate:
-
CE/ROHS/ISO9001/SGS
Quick Details
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
HUADIAN
-
Model Number:
-
HDMS
-
Name:
-
0 10v to 4 20ma analog inputs transmitter active signal converter
-
Chnnels:
-
1in 1out, 1in 2 out, 2 in 2 out,etc
-
Power Supply:
-
DC24V, DC12V
-
Accuracy:
-
0.1%
-
Power Consumption:
-
1.2W(1in 1out),1.8W(1in 2out),2.4W(2in 2out)
-
Input Signal:
-
4-20ma,0-75mv,1-5V,0-10Vetc
-
Output Signal:
-
4-20ma,0-75mv,1-5V,0-10Vetc
-
Distribution Voltage:
-
19-26VDC
-
Warranty:
-
5 Years
-
Certificate:
-
CE/ROHS/ISO9001/SGS

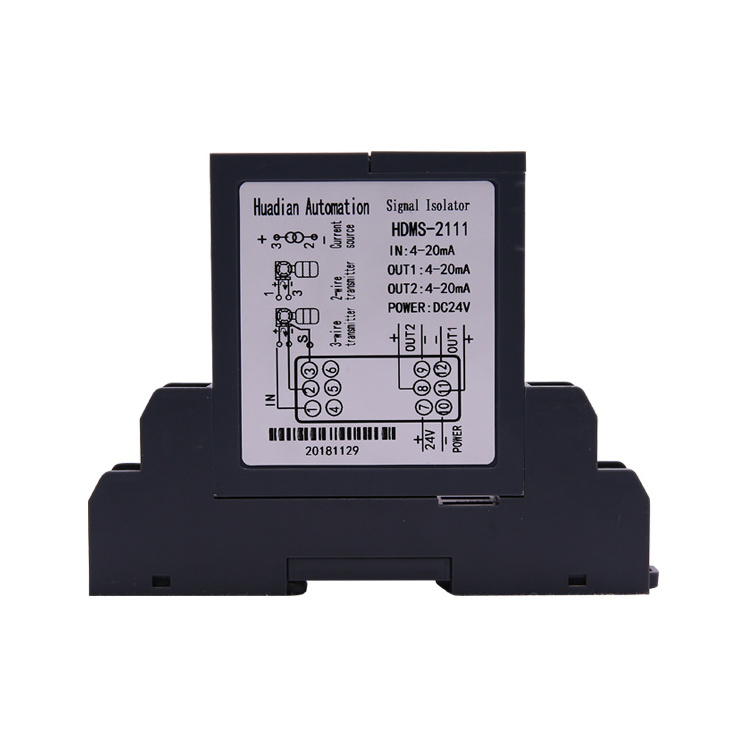

4-20ma input voltage current signal isolator converter
Features:
1.0.1% high accuracy measurement.
2.Millisecond fast response.
3.3 terminals fully isolated Linearity correction
4.Input terminal 2-wire,3-wire and 4-wire apply universally.
5.Strong isolation,high conversion,low temperature drift.
6.Thinner shell,charged pluggable available.
Parameter:
|
Power Supply |
DC24V,DC12V |
Accuracy |
0.10% |
|
Power Consumption |
1.2W(1in 1out)
|
Chnnels |
1in 1out
|
|
Input Signal |
4-20ma,0-75mv,1-5V,0-10Vetc |
Output Signal |
4-20ma,0-75mv,1-5V,0-10Vetc |
|
Distribution Voltage |
19-26VDC |
Insulation Resistance |
≥100MΩ(Input/Output/Power Supply) |
|
Input Impedance |
100Ω |
Output Load |
≤600Ω |
