Quick Details
-
Standard or Nonstandard:
-
Standard
-
Products Name:
-
Automatic Stainless Steel Hand Dryer Solenoid Water 12V Electric Valve
-
Voltage (V):
-
DC3v /3.6v / 6V & 12V & 24V; AC 220V
-
Pulse Width (ms):
-
30
-
Working Pressue (Mpa):
-
0.02-0.8
-
Medium Temperature:
-
1-75
-
Resistance (Reistance):
-
9-42
-
Lifespan (times):
-
500 thousand
-
Standard:
-
CE Rohs
Quick Details
-
Port Size:
-
1/2''
-
Warranty:
-
1 year
-
Place of Origin:
-
Hubei, China
-
Standard or Nonstandard:
-
Standard
-
Products Name:
-
Automatic Stainless Steel Hand Dryer Solenoid Water 12V Electric Valve
-
Voltage (V):
-
DC3v /3.6v / 6V & 12V & 24V; AC 220V
-
Pulse Width (ms):
-
30
-
Working Pressue (Mpa):
-
0.02-0.8
-
Medium Temperature:
-
1-75
-
Resistance (Reistance):
-
9-42
-
Lifespan (times):
-
500 thousand
-
Standard:
-
CE Rohs

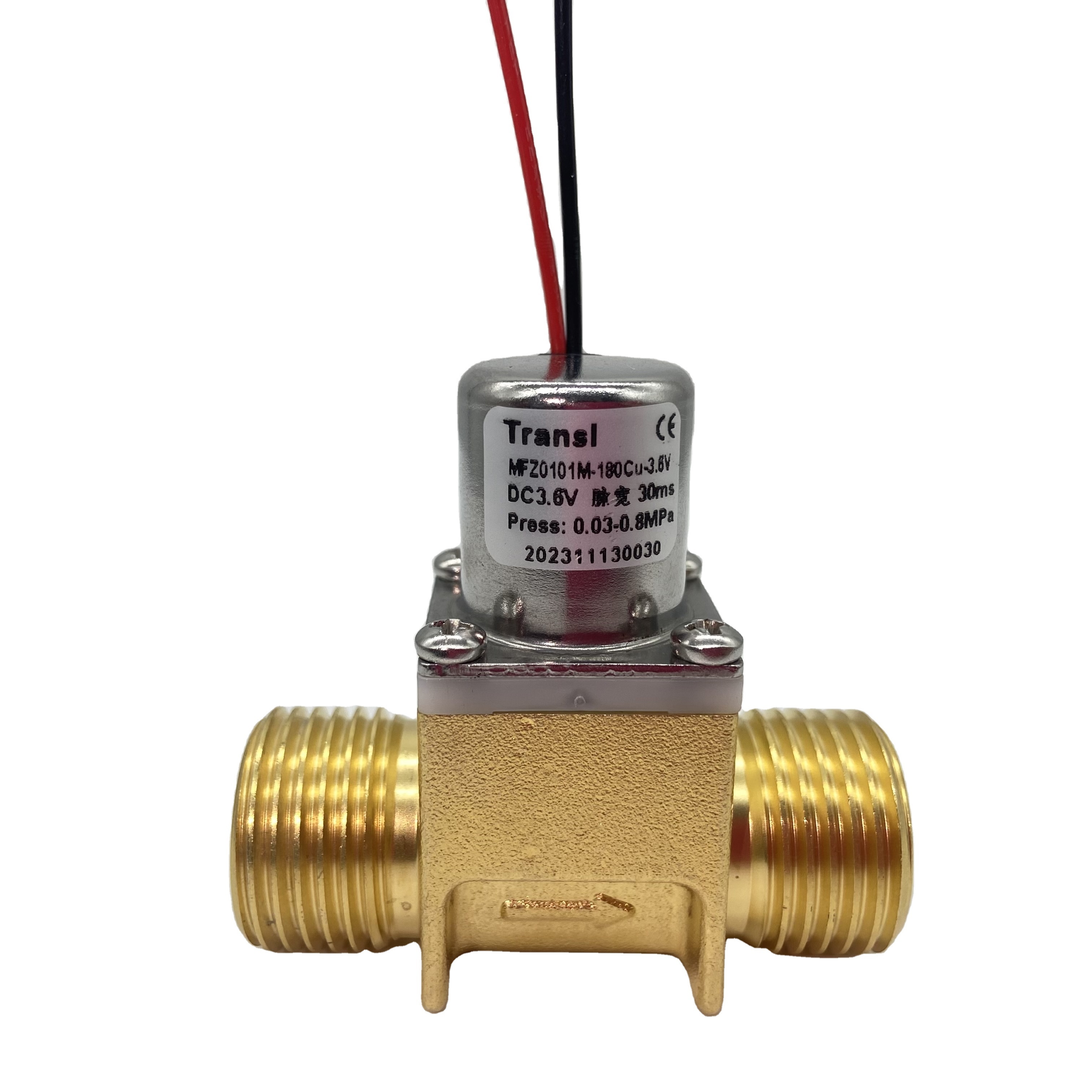

Transl MFZ0101M-180 1/ inch DC 3V 6V brass low pressure latching solenoid valve/solenoid control valves for smart faucet system
Transl MFZ0101M-180 1/ inch DC 3V 6V brass low pressure latching solenoid valve/solenoid control valves for smart faucet system
Transl MFZ0101M G 1/2" DC 3V 6V brass low pressure latching solenoid valve/solenoid control valves for smart kitchen system
What is solenoid control valves ?
solenoid control valves
is also named
Bi-Stable
Valve or
Pulse
Valve.
It includes a set of permanent magnets that allow the solenoid to offer hold force even after the power is off.
The term
controlling
type
is given to this type of solenoid because it has two stable positions.
The first when the solenoid de-energized and plunger is fully extended and second when the solenoid is de-energized and the plunger is held in position by the permanent magnets.
The electromechanical force moves the solenoids from one stable position to the other depending of the polarity of power applied.
A spring can be used to move the plunger out to the extended position as the charge applied only neutralises the permanent magnet force.
Solenoids can only induced electromechanical force in one direction (pulling the plunger towards the endstop).
When the polarity is reversed, it has no effect on the plunger except to neutralise the magnets.
So it's energy saving type
Automatic Stainless Steel Hand Dryer Solenoid Water 12V Electric Valve
Specification:
| Products name: | low price Brass high pressure 3 way solenoid valve/solenoid control valves |
| Mode: | MFZ0101M Series |
| Rated Voltage (V): | 3V 3.6V 6V 12V 24V |
| Pulse Width (ms): | 30 |
| Power(w) | 3W |
| Working Pressure (Mpa) | 0.02-0.8 |
| Flow Charactis |
0.02Mpa ≥ 3L/min
0.1MPa ≥ 16L/min 0.8MPa ≥ 40L/ min |
| Medium Temperature(°C): | 1-75 |
| Media: | Water |
| Resistance (Ω): | 9±0.5 |
| Lifes Span (times): | ≥ 500 000 |
| Application: | Bathroom Water Flush Valve , V egetable Irrigation Valve and etc. |
| Material: | Brass Solenoid |
| Standard: | CE & Rohs |
