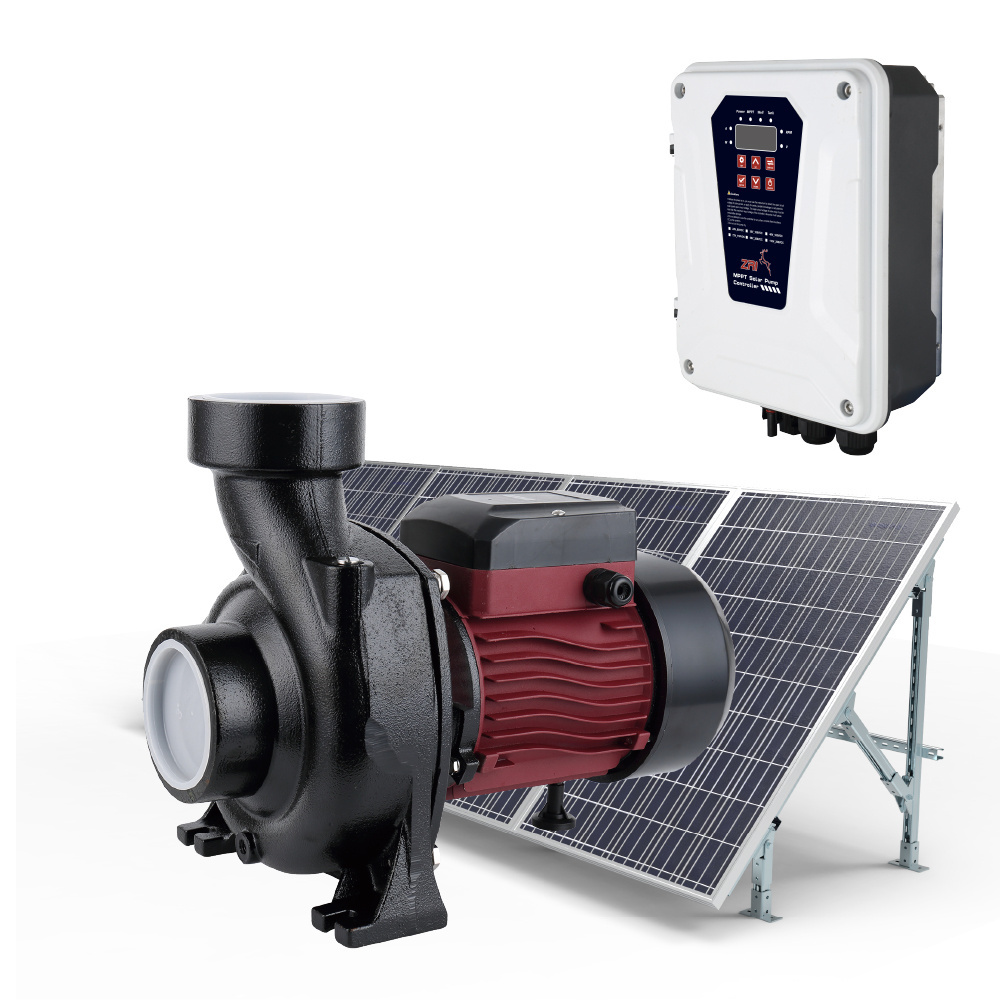

ZRI MPPT Controller 2/3/4 Inch 3 Hp Solar Pumps For Agriculture Solar Surface Water Pump System
ZRI MPPT Controller 2/3/4 Inch 3 Hp Solar Pumps For Agriculture Solar Surface Water Pump System
ZRI MPPT Controller 2/3/4 Inch 3 Hp Solar Pumps For Agriculture Solar Surface Water Pump System
ZRI MPPT Controller 2/3/4 Inch 3 Hp Solar Pumps For Agriculture Solar Surface Water Pump System
ZRI MPPT Controller 2/3/4 Inch 3 Hp Solar Pumps For Agriculture Solar Surface Water Pump System
ZRI MPPT Controller 2/3/4 Inch 3 Hp Solar Pumps For Agriculture Solar Surface Water Pump System
ZRI MPPT Controller 2/3/4 Inch 3 Hp Solar Pumps For Agriculture Solar Surface Water Pump System
ZRI MPPT Controller 2/3/4 Inch 3 Hp Solar Pumps For Agriculture Solar Surface Water Pump System

ZRI MPPT Controller 2/3/4 Inch 3 Hp Solar Pumps For Agriculture Solar Surface Water Pump System

FOB Reference Price: Get Latest Price
≥1 Sets
US $283.8
≥10 Sets
US $278.3
≥100 Sets
US $272.8
≥1000 Sets
US $267.3
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Model Number:
ZSHF45-17-110(/200)-1500
Application:
Domestic, Agriculture and irrigation
Material:
Aluminium and Cast Iron
Horsepower:
550 - 1500w
Voltage:
DC48 - 110 - 200V
Max flow:
45000L/h
Max head:
24m
Motor:
Permanent Magnet DC Brushless Motor /100% Copper Wire
Structure:
Centrifugal Pump
Controller:
High Effency DC MPPT Function Controller
Speed:
600-3000 RPM
OEM:
OEM Services Provided
Outlet dia:
2 inch /3 inch/4 inch
Water Quality:
Clear Water
Key words:
Surface pump

Quick Details

Warranty:
2 years
Place of Origin:
Zhejiang, China
Brand Name:
ZRI / OEM
Model Number:
ZSHF45-17-110(/200)-1500
Application:
Domestic, Agriculture and irrigation
Material:
Aluminium and Cast Iron
Horsepower:
550 - 1500w
Voltage:
DC48 - 110 - 200V
Max flow:
45000L/h
Max head:
24m
Motor:
Permanent Magnet DC Brushless Motor /100% Copper Wire
Structure:
Centrifugal Pump
Controller:
High Effency DC MPPT Function Controller
Speed:
600-3000 RPM
OEM:
OEM Services Provided
Outlet dia:
2 inch /3 inch/4 inch
Water Quality:
Clear Water
Key words:
Surface pump
>>> BRUSHLESS DC SOLAR PUMP
>>> WHY SELECT ZRI

1. No MOQ required, Most solar water pumps ready in stock(fast lead time)
2. Two Years Warranty
3. Experienced manufacturer of over 15 years
4. Top 3 leading brand in China both in terms of professionalism and market share
5. Manufacture more than 50000pcs per year
6. Exported more than 60 countries
>>> HOW TO CHOOSE PUMP

HEAD CALCULATE:
1. Distance of 'A+B+C/10 (in meter)
2. Distance of ' 'A+E+F/10 +G+H/10 (in meter)
Water source: Borehole(diameter__mm )

FLOW CALCULATE:
How much water per hour or per day do you want?
Selecting the solar pump model that meets your requirements against the pump model number table

Pls select the right pump below yourself, or pls inform us below information, then we can select the right pump for you.
1. Where will the pump be used?  2. How much water discharge ( liters or gallon or m3) required per day or per hour? 3. Do you need a submersible pump or surface pump?  4. If you want to pump the water from borehole(deep well), the depth of borehole?  5. The pipe distance from the top of borehole or river to destination tank? Is the distance slope or horizontal?  6. The height of tank?

ITEM
Voltage
Optimum input
voltage(DC)
Power
Max. Flow
Max. Head
Outlet
ZSHF6-24-48-550
48V
60V-90V
550W
6m³/h
24m
1×1 ''
ZSHF15-14-48-550
48V
60V-90V
550W
15m³/h
14m
1.5×1.5 ''
ZSHF21-14-96-750
72V
90V-120V
750W
21m³/h
14m
2×2 ''
ZSHF26-15-110(/150)-1100
110V
110V-150V
1100W
26m³/h
15m
2×2 ''
ZSHF45-17-110(/200)-1500
110V
110V-150V
1500W
45m³/h
17m
3×3 ''
ZSHF21-14-96-750-A/DSW
150V-264V
80V-380V
750W
21m³/h
14m
2×2 ''
ZSHF26-15-150-1100-A/DSW
150V-264V
80V-380V
1100W
26m³/h
15m
2×2 ''
ZSHF45-17-200-1500-A/DSW
150V-264V
80V-380V
1500W
45m³/h
17m
3×3 ''
ZSHF60-16-300-2200-A/DSW
150V-264V
80V-380V
2200W
60m³/h
16m
4×4 ''
ZSHF21-14-96-750-A/DCP
150V-264V
80V-380V
750W
21m³/h
14m
2×2 ''
ZSHF26-15-150-1100-A/DCP
150V-264V
80V-380V
1100W
26m³/h
15m
2×2 ''
ZSHF45-17-200-1500-A/DCP
150V-264V
80V-380V
1500W
45m³/h
17m
3×3 ''
ZSHF60-16-300-2200-A/DCP
150V-264V
80V-380V
2200W
60m³/h
16m
4×4 ''


ADVANCED TECHNOLOGY

- MPPT: Maximum Power Point Tracking
- DSP: Digital Signal Processing - Running Speed Control: stepless speed regulation
- Timing function: Set pump running time
- Over current protection: Motor stops automatically when stucked
- Soft starting protection:Protect the motor & bearing
- Lack of water protection: Restart Automatically upon the Water Level
- Low-voltage / Over-voltage protection: Protect the motor & controller
- Reverse voltage protection: Circuit breaking automatically when reverse connection
- Short-circuit protection: Automatically stops when Short wiring of motor


ADVANCED TECHNOLOGY

- The efficiency is improved 25% by the permanent magnetism,direct current, brushless, non-sensor motor.
- Adopt double plastic package for rotor and stator,motor insulation ≥300MΩ,the motor security was much improved.
- 100% copper wire, DW-300 cold-rolled silicon steel sheet. - Stainless steel 304 & 316 shaft , motor body, screw.


ZSCO SERIES DC SOLAR PUMP

Single solar mode

ESCO SERIES DC SOLAR PUMP

Single solar mode

ZSCO_ADSW SERIES AC/DC Swithing SOLAR PUMP

Single solar mode
Single AC mode
AC / DC switching mode(DC Power firstly)

ZSCO_ADCP SERIES AC/DC Complementary SOLAR PUMP

Single solar mode
Single AC mode
Full power AC / DC automatic hybrid mode
>>> HOW TO INSTALL A SOLAR PUMP

Solar pumping system mainly consists of PV modules, solar pumping controller / inverter and water pumps, Solar panels convert sunlight to electrical energy which is passed to the solar pump controller, The solar controller stabilizes the voltage and output power to drive the pump motor, Even on cloudy days,it can pump 10% water flow per day. Sensors are also connected to the controller to protect the pump from running dry as well as to automatically stop the pump working when the tank is full.

Solar panel collects sunlight→DC electricity energy → Solar Controller (rectification,stabilization, amplification,filtering)
→available DC electricity→(charge the batteries)→pumping water

Since the sunlight/sunshine is not the same in different countries /regions on earth, the solar panels connection will be slightly changed when installed in different place, In order to ensure the same/similar performance & efficiency,The recommended solar panels power = Pump Power * (1.2-1.5)

Application

@ Application of deep well pump to irrigation @ Village and town water supply @ Clean drinking water
@ Garden watering
@ Enviroment friendly
@ Pumping and drip irrigation
>>> WHAT WILL YOU GET FROM ZRI

Brushless DC Pump

1 PCS Solar pump with 2m cable, longer cable is available if required

MPPT Solar Pump Controller

1 PCS High-efficiency and full-automatic MPPT Solar Pump Controller

Installation Accessiories

1 PCS Water level sensor or float switch
1 PAIR MC4 PV Connector
1 ROPE PTFE Tape
1 ROPE Electric tape 1 PCS screwdriver
1 PCS Pipe Conector
1 PCS Installation Manual


>>> WHY YOU CAN TRUST ZRI


Where we sell

- ZRI′ S network has been spread to about 120 countries and regions around the world.

Installed in Thailand
Installed in Australia
Installed in USA
Installed in Argentina
Installed in Egypt
Installed in South Africa


Good Comments on ZRI from Customers

- Professional international trade sales team, superior customer care
- Annual visit to solar pump agent to give technical training.


ZRI Workshop


Water Pump Workshop
Controller Manufacturing Workshop
QC Process Control


QC Process Control
QC Process Control

ZRI Certification

- Continuously diversify products range to satisfy customers' needs

CE Certification
ISO Certification
IEC 60335 Certification
FAQ
Q1: What you can offer if we want to be your dealer?
An: We can provide good quality marketing photos, videos and training materials.

Q2: What's your payment terms?
An: We accept Alibaba trade assurance payment, TT payment, L/C and so on.

Q3: What is the delivery time?
An: Our lead time is around 2-5 days for small order qty less then 50 pcs, lead time for bigger quantites is around 15-20 days

Q4: Can you do our labels on the controller and pump?
An: Yes, we can do your private labels on your pump and controllers which is explained above.

Q5: Do you offer test performance of the pumps?
An: Yes, we do offer our test reports of our solar water pumps, such as flow, head etc.

Q6: What is the advantages of ZRI solar pumps? Why to choose your ZRI pumps?
An: ZRI uses Japanese bearings in all of it’s pumps as we have identified cheaper low grade bearings to be a significant issue in pumps.
ZRI’s submersible solar screw pumps are manufactured with 304 Stainless Steel,which is a high grade steel and rated higher than many other pumps which using 201 stainless steel, 316L Stainless Steel is also optional for harsh water in prolong the pump working life.ZRI use a High Grade SH Permanent Magnet brushless DC motor, Max. 4000RPM(not brush or common magnet as in low cost product, reduces life expectancy).
