Quick Details
-
Positioning Accuracy (mm):
-
0.03 mm
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.05 mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
CAMEL CNC
-
Dimension(L*W*H):
-
1300x2500x200mm
-
Weight (KG):
-
1100
-
Model:
-
CA-1325
-
Lathe Structure:
-
Welded Structure
-
Max. Consume power:
-
5Kw
-
Spindle Power Motor:
-
3.2kw water-coolant Spindle
-
Spindle Speed:
-
0-24000RPM
-
Drive Mode:
-
450B stepper motor and drive
-
Working Voltage:
-
AC220V/380V, 50/60Hz
-
Operating System:
-
NC studio control system(Dsp optional)
-
Collet:
-
ER20
-
X,Y,Z Working Area:
-
1300x2500x200mm
Quick Details
-
Working Table Size(mm):
-
1300×2500
-
Machine Type:
-
CNC Router
-
Range of Spindle Speed(r.p.m):
-
0 - 24000 rpm
-
Positioning Accuracy (mm):
-
0.03 mm
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.05 mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
CAMEL CNC
-
Dimension(L*W*H):
-
1300x2500x200mm
-
Weight (KG):
-
1100
-
Model:
-
CA-1325
-
Lathe Structure:
-
Welded Structure
-
Max. Consume power:
-
5Kw
-
Spindle Power Motor:
-
3.2kw water-coolant Spindle
-
Spindle Speed:
-
0-24000RPM
-
Drive Mode:
-
450B stepper motor and drive
-
Working Voltage:
-
AC220V/380V, 50/60Hz
-
Operating System:
-
NC studio control system(Dsp optional)
-
Collet:
-
ER20
-
X,Y,Z Working Area:
-
1300x2500x200mm

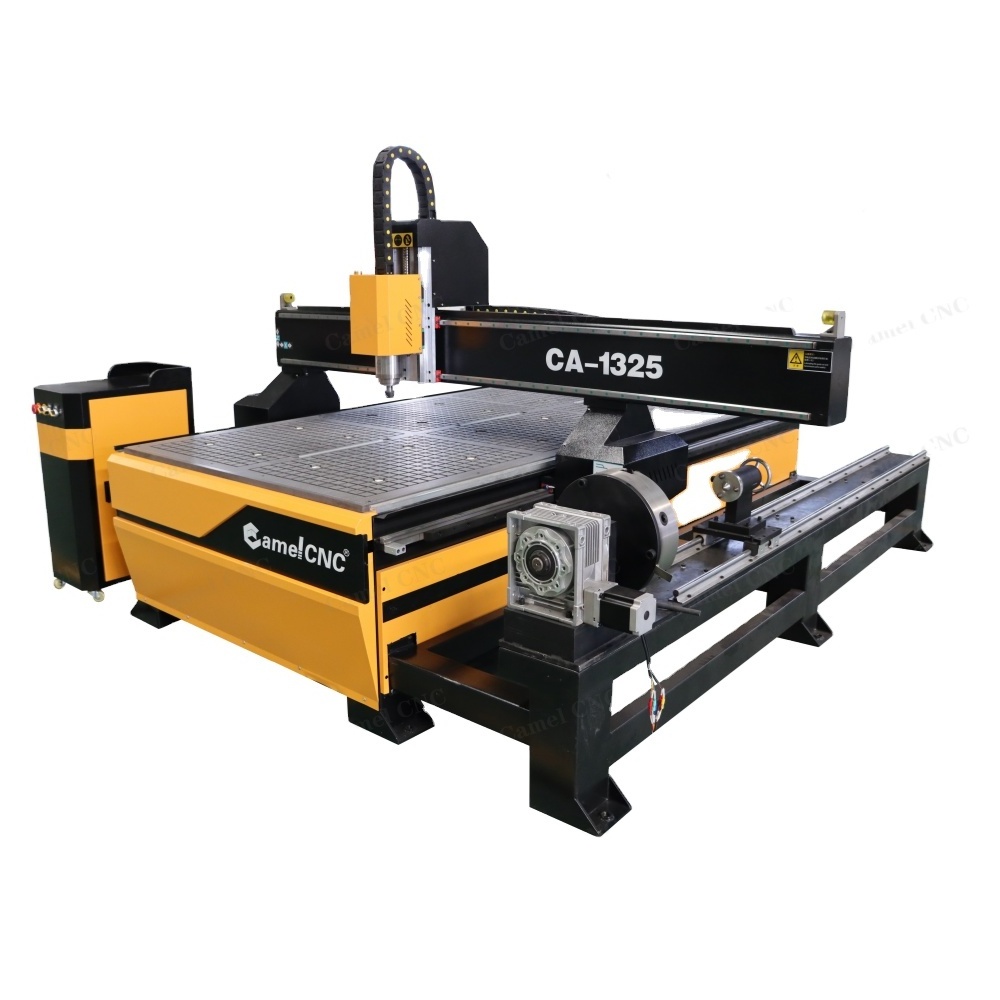

CAEMEL 4 Axis 3D CNC Router Wood Metal Stone Carved Engraver Machine1325 With Side Rotary Axis Price
1.Double motors and drivers of Y axis ensure steady movement.
2.Rack gear transmission ensures fast speed and high accuracy.
3.Imported square rail ensures high accuracy and heavy workload.
4.Intelligent protection of working table can avoid damage resulted from the wrong operation.
5.Intelligent overrunning protection can avoid mechanical collision when set graphic exceeds processing size.
2.Rack gear transmission ensures fast speed and high accuracy.
3.Imported square rail ensures high accuracy and heavy workload.
4.Intelligent protection of working table can avoid damage resulted from the wrong operation.
5.Intelligent overrunning protection can avoid mechanical collision when set graphic exceeds processing size.
1. This machine is widely used in furniture processing industry, home decoration, wood working decoration, doors manufacturing, wood art craft and so on. it is also widely used in processing for single lines, milling,3D embossing, cutting and engraving etc.
2.Efficient manufacturing of wooden products, advertising billboard, acrylic cutting, letter mold form-ling and mass cutting. Also the machine can engrave on iron, brass, aluminum, plastic and wood boards and other non-metal materials.
2.Efficient manufacturing of wooden products, advertising billboard, acrylic cutting, letter mold form-ling and mass cutting. Also the machine can engrave on iron, brass, aluminum, plastic and wood boards and other non-metal materials.
|
NO.
|
Description
|
Parameter
|
|
1
|
X,Y,Z Working Area
|
1300x2500x200mm
|
|
2
|
Table Size
|
1700×3040mm
|
|
3
|
X,Y,Z Traveling Positioning Accuracy
|
±0.03/300mm
|
|
4
|
X,Y,Z Repositioning Positioning Accuracy
|
±0.05mm
|
|
5
|
Lathe Structure
|
Welded Structure
|
|
6
|
X, Y Structure
|
Rack gear Transmission, Shaft Linear Bearings
|
|
7
|
Z Structure
|
Ball Screw, Shaft Linear Bearings
|
|
8
|
Max. Consume power
|
5Kw
|
|
9
|
Max. Speed
|
0-32000mm/min
|
|
10
|
Max. Working Speed
|
0-20000mm/min
|
|
11
|
Spindle Power Motor
|
3.2kw water-coolant Spindle
|
|
12
|
Spindle Speed
|
0-24000RPM
|
|
13
|
Drive Mode
|
450B stepper motor and drive
|
|
14
|
Working Voltage
|
AC220V/380V, 50/60Hz
|
|
15
|
Command
|
G Code, *uoo, *mmg, *plt
|
|
16
|
Operating System
|
NC studio control system(Dsp optional)
|
|
17
|
Interface
|
USB
|
|
18
|
Flash Memory
|
512M
|
|
19
|
Collet
|
ER20
|
|
20
|
X,Y Working Delicacy
|
<0.01mm
|
|
21
|
Software
|
Ucancam, Artcam,Type3，JDpaint
|
|
22
|
Running Circumstance
|
Temperature: 0℃～45℃ Relative humidity: 30%～75%
|
FAQ
Q1: How to choose a suitable machine?
You can tell us the working piece material, size, and the request of machine function.
We can recommend the most suitable machine according to our experience.
Q2: This is the first time i buy the machine, is it easy to operate?
We can provide the operation manual or video for guiding. If it is hard for you learning, we can also help you by "Team
viewer"online, with telephone or Skype explain.
Q3: Can you customize the machine for me?
Yes, we provide customized solution, but considering the cost, we will recommend the standard configuration to you first.
Q4: What is the guarantee? In case the machine break down?
The machine has 3 year guarantee, fail parts will be replaced for free if the machine under "normal operation".
Q5: How about the documents after shipment?
We will send all the documents by air after shipment. Including packing list, commercial invoice, B/L, and other crificates
required by clients.
Q6: Delivery time?
For standard machine, it would be 7-10 working days; for non-standard machine, it would be20-30 working days.
Q7: How is the payment?
Normally we accept T/ or LC, if you like other terms, tell us in advance.
Q8: Do you arrange the shipment for me?
For FOB or CIF price, we will arrange shipment for you, for EXW price, you should arrange the shipment by yourself.
Q9: How is the packing?
Step1: water proof wrapping film with foam protection in each corner.
Step2: Solid seaworthy wood box package with steel belt.
Step3: Save space as much as possible for container loading.
