Quick Details
-
IP INPUT:
-
128*IP, 3*GiGe
-
ASI input:
-
6*ASI BNC interface
-
Output:
-
16 *DVB-T ATSC/ISDB-T or 32 DVB-C No-Adjacent RF Carrier Output
-
Management:
-
Web browser via Ethernet interface
-
Application:
-
IPTV & OTT , Digital Signage Digital TV Broadcasting ,Hotel
-
Type:
-
Mini Indoor Equipment
-
Application Fields:
-
DVB Headend
-
Keyword:
-
Hotel HD TV RF Modulator
-
Certification:
-
ce
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
DIGICAST/DTVANE
-
Model Number:
-
DMB-24E
-
IP INPUT:
-
128*IP, 3*GiGe
-
ASI input:
-
6*ASI BNC interface
-
Output:
-
16 *DVB-T ATSC/ISDB-T or 32 DVB-C No-Adjacent RF Carrier Output
-
Management:
-
Web browser via Ethernet interface
-
Application:
-
IPTV & OTT , Digital Signage Digital TV Broadcasting ,Hotel
-
Type:
-
Mini Indoor Equipment
-
Application Fields:
-
DVB Headend
-
Keyword:
-
Hotel HD TV RF Modulator
-
Certification:
-
ce

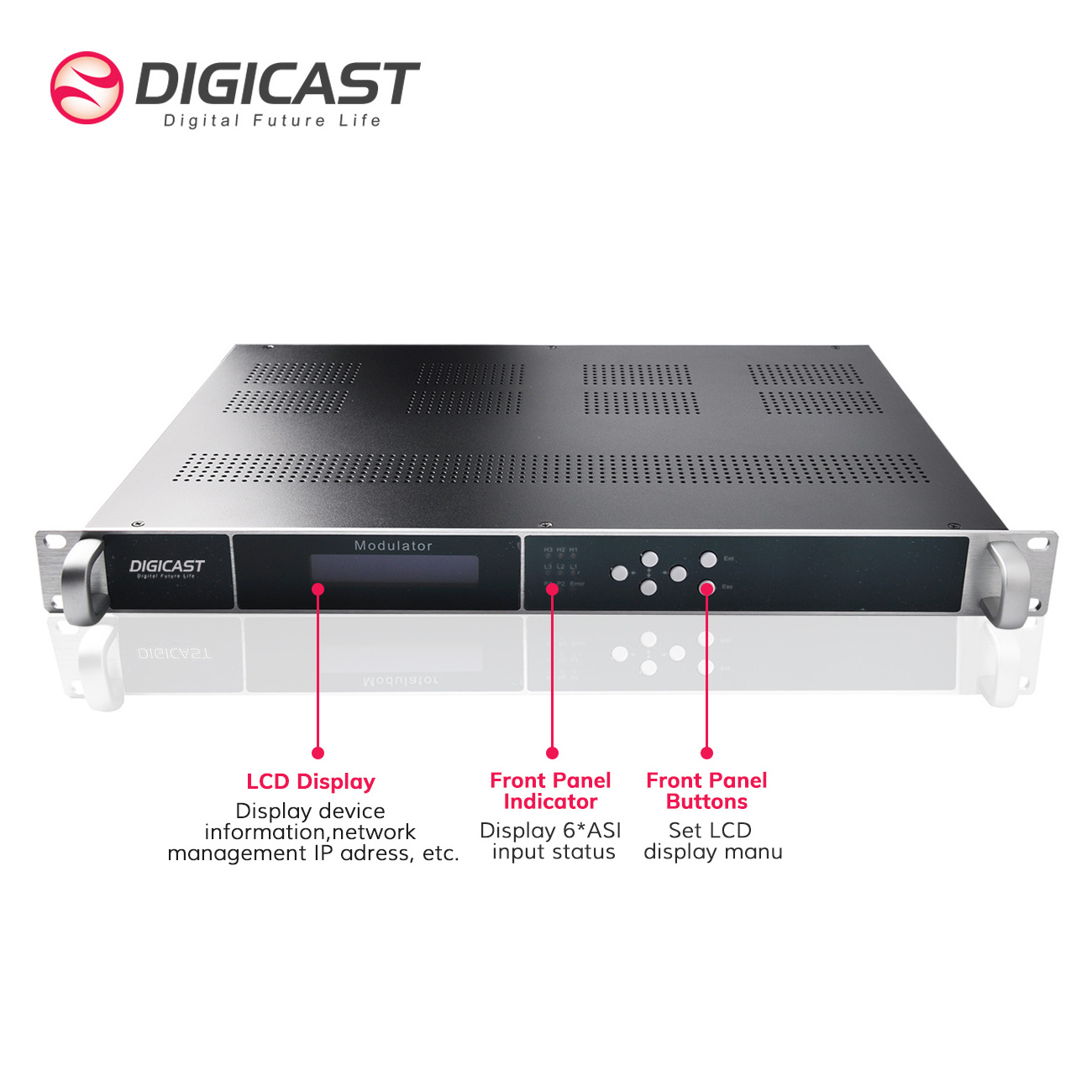

Production Picture
DMB-24E IP To 16/32* RF Modulator
HOTEL
LIVE
SCHOOL
MEETING
HOME
SHOPPING
Products Description
Overview
DMB-24E Series IP To RF professional modulator, support Date1,date2,date3 (3*GigE) port by UDP/IP input ,each IP data port support
128*SPTS/MPTS inputt.Meanwhile DMB-24E with 6*ASI input, support 16*ISDB-T/DVB-T/ATSC or 32DVB-C Non-adjacent RF DVB-C output ,IP
8*MPTS/SPTS output from Data 1,multiplexing the programs from IP and ASI sources to next device.
128*SPTS/MPTS inputt.Meanwhile DMB-24E with 6*ASI input, support 16*ISDB-T/DVB-T/ATSC or 32DVB-C Non-adjacent RF DVB-C output ,IP
8*MPTS/SPTS output from Data 1,multiplexing the programs from IP and ASI sources to next device.
Features
* input: 3 *Date(1、2、3)UDP/IP port .each data port support 128*IP(SPTS/MPTS)
* 6*ASI in
* output 16*RF DVB-T/ATSC/ISDB-T/DTMB or32 DVB-C for option, 1 IP(8*MPTS/SPTS) from date1 output
* Front panel ：L1/L2/L3/H1/H2/H3 indicator light for 6*ASIinput
* NMS port for management
* PID Remapping & Filtering
* PSI/SI editing & inserting
* Low cost solution for Hotel TV System
* Support PCR correct and PCR interval adjusting
* Superior Shoulders and Excellent modulation, quality MER
* Low power consumption, high reliability with MTBF(Mean Time Between Failure)≦87600 Hours
* Easy-to-Use System Management via Web
* Support:(LCN Logical Channel Number)
* 6*ASI in
* output 16*RF DVB-T/ATSC/ISDB-T/DTMB or32 DVB-C for option, 1 IP(8*MPTS/SPTS) from date1 output
* Front panel ：L1/L2/L3/H1/H2/H3 indicator light for 6*ASIinput
* NMS port for management
* PID Remapping & Filtering
* PSI/SI editing & inserting
* Low cost solution for Hotel TV System
* Support PCR correct and PCR interval adjusting
* Superior Shoulders and Excellent modulation, quality MER
* Low power consumption, high reliability with MTBF(Mean Time Between Failure)≦87600 Hours
* Easy-to-Use System Management via Web
* Support:(LCN Logical Channel Number)
Specification
|
SPECIFICATIONS
|
|
|
|
ISDB-T MODULATION
|
* ISDB-T RF out: 16*ISDB-T RF out
* ISDB-T Standard ARIB STD-B31 * Constellation: DQPSK, QPSK, 16QAM, 64QAM * Guard Interval:1/32, 1/16, 1/8, 1/4 * Transmission Mode: 2K(If you need 4K,8K , consult with sales) * Code rate:1/2, 3/4, 5/6, 7/8 * Bandwidth:6MHz |
|
|
DVB-T MODULATION
|
* Channel:16*DVB-T RF out.
* Modulation standard: EN300744 * Bandwidth: 6M, 7M, 8M * FFT mode: 2K, 8K * Constellation QPSK, 16QAM, 64QAM * Guard Interval 1/4, 1/8, 1/16, 1/32 * FEC 1/2, 2/3, 3/4, 5/6, 7/8 |
|
|
ATSC-T MODULATION
|
* Channel:16*ATSC-T RF out.
* Constellation: 8VSB |
|
|
DVB-C MODULATION
|
* Channel: 32*DVB-C RF out.
* DVB-C Standard J83.A (DVB-C, J83.B, J83.C) |
|
|
IP STREAM INPUT
|
* Support 8*IP(MPTS/SPTS) UDP/RTP output from DATE1
|
|
|
MULTIPLEXING
|
* ONLY capable of multiplexing when running with max.
* Maximum PID Remapping 180 input per channel PID remapping by automatically or manually * Accurate PCR adjusting * Capable of PSI/SI SDI/PMT/TOT/PAT/BAT/CAT/TDT/NIT Insert |
|
|
GENERAL OPTIONS
|
|
|
|
CONTROL AND MONITORING
|
* Configuration Interface: Web-based, NMS
* Remote: Upgrade via network * Connector: RJ45, 100M/1000M Ethernet interface |
|
|
PHYSICAL AND POWER
|
* Voltage 110~220V
* Consumption: 18~20W * Operating temperature: 0~50°C * Dimensions: 483mm(W)*360mm(D)*44.5mm(H) * Weight: 5KG/pc |
|
Related
|
Function
|
Model number
|
Main features
|
|
|
Headend receiver
|
Input: 4*Tuner(DVB-S/S2/T2/T/C)+1*ASI in (de-mux)+4*IP(GigE, de-mux); 4*CI decryption.
Output: 4+4*ASI+IP(GigE,4*MPTS or 48*SPTS with UDP/RTP/RTSP)
|
Not all channels are FTA, DMB-9004CIA for encryption channels sources
|
|
|
IPTV Transcoder
|
UDP/RTMP/RTSP/HLS, MPEG2 to H264, H265 Exchange, Reduce bitrate, resolution
|
IPTV OTT Project
|
|
|
IPTV Streaming Server
|
Change the IP protocol up to 100 channels (only change IP protocol)
|
IPTV OTT Project
|
|
|
Distributing Streaming Server
|
Concurrence to 1K/10K users
|
IPTV OTT Project
|
|
|
Universal Streaming Server
|
Concurrence max to 600 users, all in one integrate IPTV management software
|
Hotel, School and other small IPTV project
|
Order Guide
|
Model Name
|
Capacity Performance
|
|
|
|
|||
|
Tuner to IP series : max to 24 Tuners to 256*SPTS/4*MPTS Receiver , 6 modules ,each modules 4 tuners
support 2*independent ASI input/output
|
|
|
|
||||
|
Tuner to RF series :max to 24 tuners input , 6 modules ,each modules 4 tuners
output:RF DVB-T/DVB-C/ATSC/ISDB-T option from UI
|
|
|
|
||||
|
IP to RF 8*16 DVB-T/ATSC
IP to 16/32 QAM
IP to 8*ISDB-T
|
|
|
|
||||
|
Input:max to 24 HDMI input ,6 modules ,each modules 4 HDMI input
output: RF DVB-T/ATSC/ISDB-T/DVB-C option from UI |
|
|
|
||||
|
input:max 24 HDMI input,6 modules ,each modules 4 HDMI input
Output: IP 24*SPTS/1*MPTS
|
|
|
|
||||
|
Mixed series
|
16*HDMI+4*Tuners to 8*RF out
8*HDMI+4*Tuners to 16*DVB-T out
you can chose HDMI,Tuners,IP input in one device
|
|
|
|
|||
