Quick Details
-
Brand Name:
-
Yongnuo
-
Dimension(L*W*H):
-
12218(mm)*2700(mm)*2900(mm)
-
Weight:
-
1000
-
Product name:
-
mobile gas station
-
Application:
-
Industry
-
Other name:
-
Mobile Gasoline Station
-
Size:
-
Customized Size
-
Feature:
-
Security Duarble Portable
-
Type:
-
Moveable
-
After-sales Service Provided:
-
Free spare parts
-
Certification:
-
ISO9001:2008/ce
-
Material:
-
Stainless Steel
Quick Details
-
Capacity:
-
15000L, customized
-
Max Working Pressure(MPa):
-
0.08 MPa
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Yongnuo
-
Dimension(L*W*H):
-
12218(mm)*2700(mm)*2900(mm)
-
Weight:
-
1000
-
Product name:
-
mobile gas station
-
Application:
-
Industry
-
Other name:
-
Mobile Gasoline Station
-
Size:
-
Customized Size
-
Feature:
-
Security Duarble Portable
-
Type:
-
Moveable
-
After-sales Service Provided:
-
Free spare parts
-
Certification:
-
ISO9001:2008/ce
-
Material:
-
Stainless Steel
mobile petrol equipment filling station

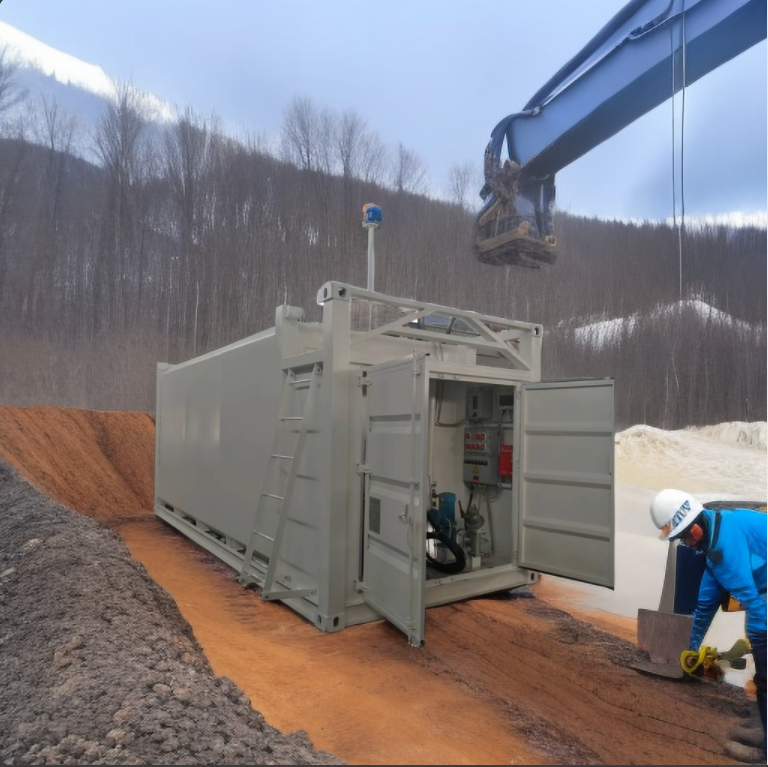

Skid-mounted Gas Station/Mobile Petrol Filling Station is
a kind of filling equipment
including standard container, inner storage tank,
fuel dispenser, oil loading pump, Oil filling pipelines and discharging pipelines ,power distribution cabinet, fire extinguisher ,static grounding alarm, oil unloading fuel filter, fast joint, liquid level meter and so on. Compared with usual fuel stations,our container fuel st
ation is more environment-friendly and safe,it can save space and land.
|
Model |
YN20-40 |
|
Type |
P Type; horizontal; double action; reciprocating piston; |
|
Theoretical capacity |
1000Nm3/h; |
|
Media |
Desulfurized natural gas (main composition CH4); |
|
Ambient work temperature |
-15~+45°C; |
|
Compression stage |
2 stages; |
|
Suction status |
5MPa at temperature 0~35°C; |
|
Outlet discharge pressure |
25Mpa at temperature ≤45°C or less than ambient temperature 15°C(afer cooling); |
|
Piston reciprocating times |
11~13 times/minute; |
|
Main oil pump type and constant power rate |
bent axis axial variable pump(L7V117LV2.0RP00) |
|
Constant power output |
28KW; |
|
Constant power input |
≤35KW; |
|
Oil pumpconstant power minimum adjustable pressure |
10.2MPa; |
|
Hydraulic system maximum work pressure |
16.0MPa; |
|
Oil pump maximum oil supply |
164L/min.; |
|
Oil pump maximum oil supply |
127L/min.; |
|
Driving mode |
electric motor; direct coupling; by oil pump; |
|
Electric motor model No. |
Explosion-proof motor No. YB2-225M-4B35; 37KW; 1480rpm; Diibt4; |
|
Oil lubrication mode |
Oil free in cylinder and packing assembly; |
|
Power rate for air cooler |
cooling air 1.5KW; cooling hydraulic oil 2.2KW; |
|
Control mode |
PLC + Touch Screen+Soft Starter; |
|
Cooling mode |
Natural cooling for cylinder; air cooling for gas; |
|
Installation mode |
outdoor; skid mounted fixation; |
|
Total weight of skid mounted unit |
7150KG; |
|
Overall sizes of skid mounted container (LxWxH) |
3350×2330×2700mm |
