Quick Details
-
VR10 Drivers:
-
1 x 10" LF / 2 x 1.75" HF
-
S15 Drivers:
-
1 x 15"
-
Frequency range:
-
60 - 16000 Hz / 40-1500 Hz
-
Coverage range (h x v):
-
80° oder 120 ° x 10°
-
SPL max / 1 m / peak:
-
133 dB / 127dB
-
Net Weight:
-
16 kg / 29 kg
-
Version:
-
Active/Passive
-
Type:
-
Line Array System
-
Power:
-
500W/1200W
-
Frequency Range (Hz):
-
60 - 16000 Hz
-
Dimension (L x W x H):
-
275x500x355 mm/446x500x560 mm
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Sanway
-
Model Number:
-
VERA10 & S15
-
VR10 Drivers:
-
1 x 10" LF / 2 x 1.75" HF
-
S15 Drivers:
-
1 x 15"
-
Frequency range:
-
60 - 16000 Hz / 40-1500 Hz
-
Coverage range (h x v):
-
80° oder 120 ° x 10°
-
SPL max / 1 m / peak:
-
133 dB / 127dB
-
Net Weight:
-
16 kg / 29 kg
-
Version:
-
Active/Passive
-
Type:
-
Line Array System
-
Power:
-
500W/1200W
-
Frequency Range (Hz):
-
60 - 16000 Hz
-
Dimension (L x W x H):
-
275x500x355 mm/446x500x560 mm

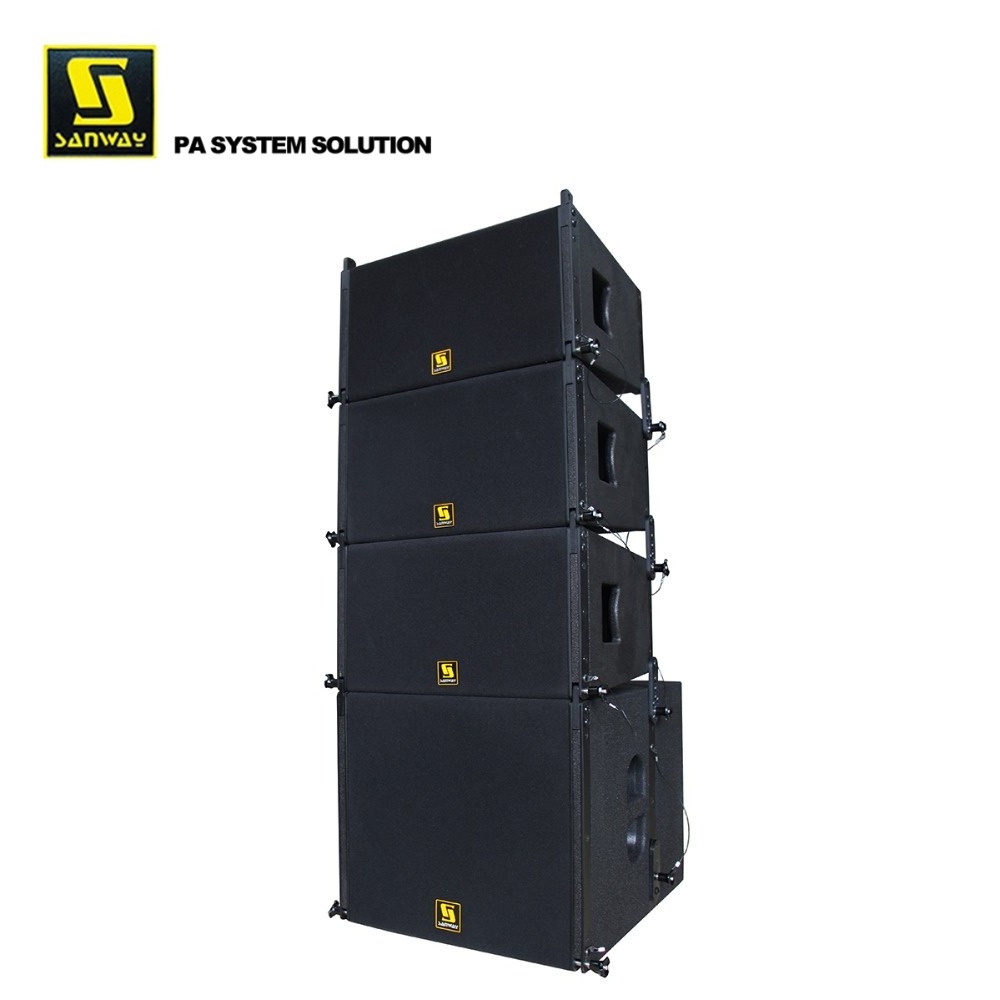

10 inch Tops &15 inch Bass Compact Active Line Array System
1. Superior sound quality systems;
2. Come with single 10" tops and single 15" subs;
3. Both the top and subs are only 50 cm length;
4. Subwoofer is mounted one 3 channel DSP plate amplifier;
5. Rectangular enclosure constructed of birch plywood .
Description
The VR10 line array tops is a compact cabinet box with width of 50 cm and height of 27 cm, it is mounted with 1x10" woofer and 2x1.75" neodymium drivers. S15 subwoofer is also a compact cabinet box with width of 50 cm and height of 45 cm, it is equipped with one 15" woofer inside. One year ago, we launched the VR10&S30 powered line array system, and it became the most popular active line array systems for its superior sound quality and easy operation since we firstly displayed it in 2016 Guangzhou Prolight+Sound Expo. Now, we come up with this more compact system for your choice, VR10&S15 powered line array system. Same as the VR10&S30 powered line array system, it is also mounted one Sanway customized D3 3 channel Class-D DSP plate amplifier. Moreover, this system could be flown or stacked, it is the ideal starting system for high-quality, small-scale sound solutions.
Features
1. High-quality, small-scale sound solutions;
2. Consist of 1x 10" tops and 1x15 ” subs;
3. Both the top and subs are only 50 cm length;
4. Rectangular enclosure constructed of birch plywood;
5. Built-in DSP amplifier
VR10 Specification
|
Model |
VR10 |
|
Drivers |
1 x 10" LF / 2 x 1.75" HF |
|
Frequency range |
60 - 16000 Hz |
|
Power capacity program / peak: |
500 / 1000 W bi-amped LF |
|
200 / 400 W bi-amped HF |
|
|
600 / 1200 W |
|
|
Impedance |
16 Ohms (bi-amp LF) |
|
16 Ohms (bi-amp HF) |
|
|
12 Ohms (passive) |
|
|
Coverage range (h x v) |
80° oder 120 ° x 10° |
|
Sensitivity 1 W / 1 m |
103 dB (bi-amp LF) |
|
111 dB (bi-amp HF) |
|
|
104 dB (passive) |
|
|
SPL max / 1 m / peak |
133 dB |
|
Dimensions (h x w x d) |
275 x 500 x 355 mm |
|
Net Weight |
16 kg passive |
|
Finish |
polyurethane coating |
S15 Specification
|
Model |
VERA S15 |
|
Drivers |
1 x 15" |
|
Frequency range |
40-1500 Hz |
|
Power capacity/ peak |
1200 / 2000 W |
|
Impedance |
4 Ohms |
|
Sensitivity 1 W/1M |
94dB |
|
SPL max/1m/peak |
127dB |
|
Connectors |
NL4 2± (bi-amp) |
|
NL4 1± (passive) |
|
|
Dimensions |
446 x 500 (565) x 560 mm |
|
Weight |
29 kg powered |
