Quick Details
-
Brand Name:
-
Fangxin
-
Model Number:
-
FX-240150528
-
Material:
-
Galvanized Wire
-
Product name:
-
Sound noise barrier fence panels
-
Surface treatment:
-
Hot Dipped Galvanized
-
Color:
-
Green,white,blue,grey,ect
-
Keywords:
-
noise barrier panels
-
Advantage:
-
Longer Life
-
Use:
-
Outdoor Used
-
Application:
-
Railways, highways, cities, residential areas
-
Style:
-
Customer Demend
Quick Details
-
Frame Material:
-
Metal
-
Feature:
-
Easily Assembled, Sustainable, ECO FRIENDLY, Rodent Proof, Rot Proof, Waterproof
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Fangxin
-
Model Number:
-
FX-240150528
-
Material:
-
Galvanized Wire
-
Product name:
-
Sound noise barrier fence panels
-
Surface treatment:
-
Hot Dipped Galvanized
-
Color:
-
Green,white,blue,grey,ect
-
Keywords:
-
noise barrier panels
-
Advantage:
-
Longer Life
-
Use:
-
Outdoor Used
-
Application:
-
Railways, highways, cities, residential areas
-
Style:
-
Customer Demend
Product Description

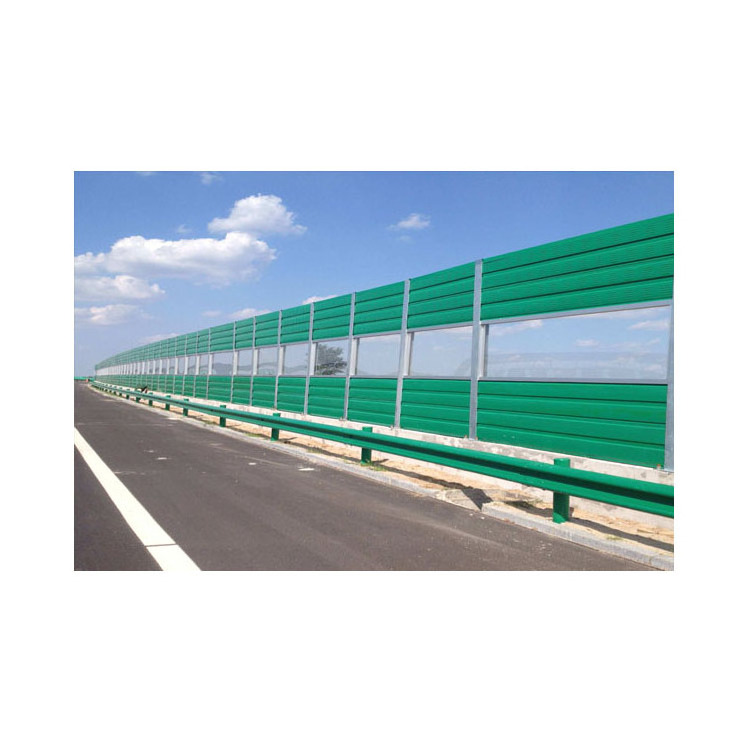

Highway noise barrier panel s mainly composed of steel structure column and sound absorbing screen plate.
The column is the main stress component of the sound barrier, which is fixed on the embedded steel plate of the road anti-collision wall or the track side by bolts or welding.
The sound insulation board is the main sound insulation and sound absorption component, which is fixed in the H-type column slot through the high-strength spring clip to form a sound barrier.
The design of the sound barrier has fully considered the wind load of the elevated highway, the urban light rail, the subway, the impact safety of traffic vehicles and the anti-corrosion problems in the open air all weather.
|
Name
|
Items
|
Product description
|
|
Noise barrier panel
|
Metal material
|
Galvanized sheet aluminum alloy sheet, color plate
|
|
Transparent material
|
Glass, PC board, acrylic board, etc
|
|
|
Other material
|
High strength cement, cement wood chips, glass steel, etc
|
|
|
Hole pattern
|
Louver holes, common hole spacing 20*137, 20*182
|
|
|
Micropores; common 3 holes 3 distances, 5holes 2 distances, 2
holes 4 distances
|
||
|
Aperture ratio
|
Not less than 25%
|
|
|
Common size
|
500*2000*80(100) mm,500*2000*120 mm,1000*2000*80(100) mm etc
|
|
|
surface concave groove
|
Can be customized according to drawings or customer requirements
|
|
|
Surface treatment
|
Electrostatic powder coating, fluorocarbon spraying
|
|
|
Color
|
Green 6029, blue5017, gray7042, white 9010, etc. color can be selected
according to the national standard color card
|
|
|
H shape post
|
Material
|
Q235B
|
|
Common size
|
100*100*6*8 125*125*6.5*9 150*150*7*10 175*175*735*11 etc
|
|
|
Common height
|
2m-6m up to12m
|
|
|
Flange
|
Size tolerance less than 2mm, thickness tolerance less than 0.4mm
|
|
|
Long hole:22*30 24*30 26*40 28*40; round hole:22 24 26 28 30 35
|
||
|
Surface treatment
|
Hot dip galvanizing-electrostatic powder coating, fluorocarbon spraying
|
|
|
Color
|
Green 6029, blue5017, gray7042, white 9010, etc. color can be selected
according to the national standard color card
|
|
|
Noise absorb material
|
Glass wool, rock wool, water-repellent, cloth, acoustic felt, foam
|
|
| Advantages of p inhole composite acoustic aluminium panel | Lightweight and non-polluting, anti-glare, anti-aging, anti-impact, anti-freezing and thawing, stable acoustic absorption coefficient, resistant to moisture, corrosion, easy to bend and easy to process, easy to transport, easy to dismantle and maintain |
| Advantages of micro perforated plate |
1. Resistant to high temperature, humidity and high speed airflow impact.
2. Stable acoustic performance, average acoustic absorption coefficient is more than 0.60, noise reduction coefficient NRC0.60 or so |
Sound-absorbing cotton characteristics:
1, light weight, sound absorption coefficient, flame retardant and has excellent chemical stability.
2, moisture-proof, anti-radiation.
1, light weight, sound absorption coefficient, flame retardant and has excellent chemical stability.
2, moisture-proof, anti-radiation.
