Quick Details
-
Production Capacity:
-
20 m2/h
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
Hualong
-
Dimension(L*W*H):
-
1550*1600*1950mm
-
Weight:
-
9500 kg
-
Max. pressure:
-
50 T
-
Blade feeding speed:
-
50 mm/s
-
Output per hour:
-
20 SM
Quick Details
-
Type:
-
Stone Cutting Machine
-
Power:
-
5.5kw
-
Cutting thickness (max):
-
Other
-
Production Capacity:
-
20 m2/h
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
Hualong
-
Dimension(L*W*H):
-
1550*1600*1950mm
-
Weight:
-
9500 kg
-
Max. pressure:
-
50 T
-
Blade feeding speed:
-
50 mm/s
-
Output per hour:
-
20 SM

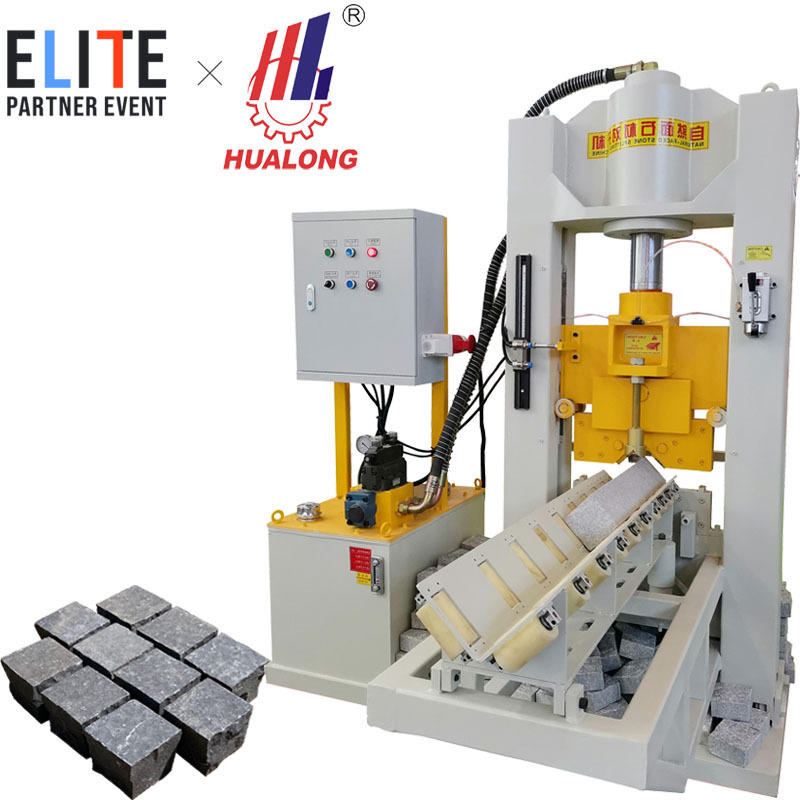

Cube Paving Stone Splitter
HLSY-C24 is designed with hydrauli driven to split square column stone into pieces of cubes or blocks with a rustic appearance. It is a high efficiency equipment for producing cubic paving stones.
Main Features
* Open frame machine model, simple to maintain
* Made of strong cast iron and high quality parts ensuring stability during working.
* Fast lift up movement improves the working efficiencty greatly .
* Heat-treated and hardened high-carbon steel chisels produce superior splits every time.
|
Technical Data
|
|
|
||
|
Model No.
|
|
HLSY-C24S
|
||
|
Pressure force
|
ton
|
50
|
||
|
Blade feeding speed
|
mm/s
|
50
|
||
|
Max. working height
|
mm
|
100
|
||
|
Min. working size
|
mm
|
100x100x30
|
||
|
Output per hour
|
m
2
/h
|
20
|
||
|
Power
|
kw
|
5.5
|
||
|
Voltage / Frequency
|
V / Hz
|
380 / 50
|
||
|
Flow rate
|
L/M
|
32
|
||
|
Hydraulic oil grade
|
#
|
46
|
||
|
Oil tank capacity
|
L/kg
|
95/ 78
|
||
|
Gross weight
|
kg
|
1050
|
||
|
Dimensions ( L x W x H )
|
mm
|
1550x1600x1950
|
||
Products produced by hydraulic stone splitter:
Q:What is the MOQ?
A: 1 set.
Q: When will you ship my order?
A: Normally 25-35 days after deposit received, If urgent, it can be negotiated further.
Q: What’s the warranty time?
A: One year.
A: 1 set.
Q: When will you ship my order?
A: Normally 25-35 days after deposit received, If urgent, it can be negotiated further.
Q: What’s the warranty time?
A: One year.
