Quick Details
-
Core Components:
-
None
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
SUMAC
-
Dimension(L*W*H):
-
1100x1100x1310mm
-
Weight:
-
450
-
Name:
-
Double wall carbon steel self bunded 1000 liter diesel tank with pump
-
Application:
-
self bunded waste coolant storage tank
-
Usage:
-
For storing, managing and dispensing recycled fuel.
-
Medium:
-
waste fuel, oil, petrol, diesel, coolant, etc.
-
Storage capacity:
-
1000 liters
-
Material:
-
Carbon Steel
-
Wall:
-
Double wall
-
Test pressure:
-
35Kpa
-
Tank type:
-
Stationary
-
Type:
-
SUMAC self bunded waste coolant storage tank
Quick Details
-
Capacity:
-
1000L
-
Max Working Pressure(MPa):
-
0 MPa
-
Marketing Type:
-
Hot Product 2024
-
Core Components:
-
None
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
SUMAC
-
Dimension(L*W*H):
-
1100x1100x1310mm
-
Weight:
-
450
-
Name:
-
Double wall carbon steel self bunded 1000 liter diesel tank with pump
-
Application:
-
self bunded waste coolant storage tank
-
Usage:
-
For storing, managing and dispensing recycled fuel.
-
Medium:
-
waste fuel, oil, petrol, diesel, coolant, etc.
-
Storage capacity:
-
1000 liters
-
Material:
-
Carbon Steel
-
Wall:
-
Double wall
-
Test pressure:
-
35Kpa
-
Tank type:
-
Stationary
-
Type:
-
SUMAC self bunded waste coolant storage tank

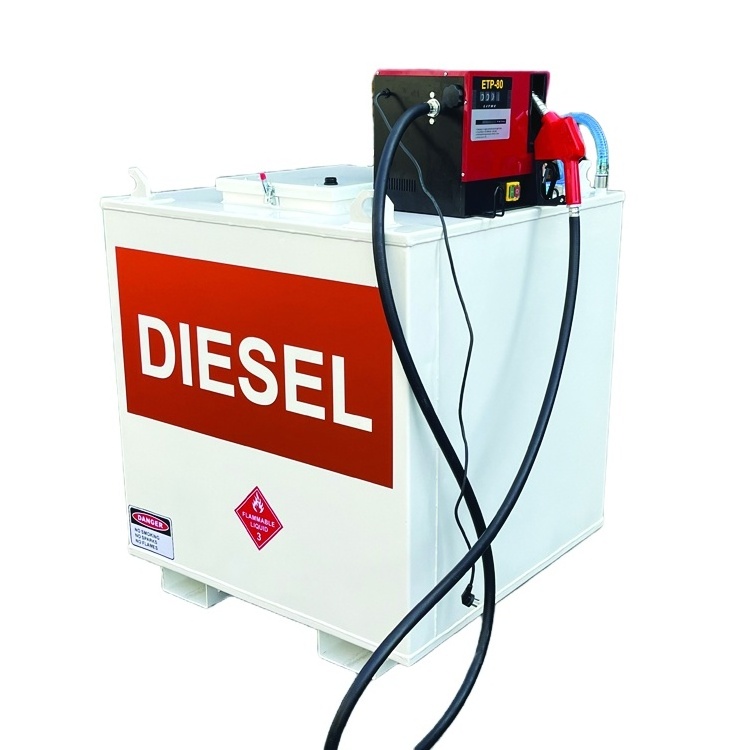

Double wall carbon steel self bunded 1000 liter diesel fuel oil storage tank/waste oil storage tank with pump
Diesel fuel tank is suitable for the storage and dispensing of Diesel, Petrol (Gasoline), Waste Oil, Waste fuel, Coolant, any liquid, other than a flammable liquid at room temperature.
All connections are through the top and the double wall design makes them self bunded, eliminating the chance of leakage into the environment.
Fuel tanks have a unique outlet arrangement that draws from the floor of the inner preventing build up of any type of sediment.
Fully designed and manufactured by SUMAC, the self bunded tank meets the industry standard for fabrication quality, and paint finish.
The fuel tanks will be plastic film and bubble wrap wrapped, to make sure it can be delivered to our customer smoothly, and we will use the steel wire to fix the oil tank with the container.
|
Model
|
ARST-1000
|
|
Material
|
Double wall, Carbon steel
|
|
Tank type
|
Storage and dispensing
|
|
Size
|
1100x1100x1310mm
|
|
Volume
|
1000litres
|
|
Empty Weight
|
450Kg
|
|
Test pressure
|
About 35Kpa
|
|
Feed/Discharging
|
1inch
|
|
Application
|
Waste fuel, petrol, waste oil, diesel, coolant, Any liquid, other than a flammable liquid under normal temperature.
|
All seams are welded to exacting standards.
2 Way forklift pockets.
Can be lifted via forklift to ensure ease of access and maneuverability, as well as lifting eyes at each corner.
Fit with free vent
Fit with
gravity outlet valve
With 1pc lockable lids and Manhole -
Easy maintenance and cleaning of carbon steel inner tank
Optional (Red, Greed, Yellow, Black, Orange) sticker. We can also customize logo according to your
needs.
· Dipstick
· Fuel Gauge
Electric Diesel Pump
The electric oil pump is a centrifugal pump. The impeller rotates in the pump casing, causing the liquid to rotate accordingly. Under the action of centrifugal force, a certain vacuum is formed in the center of the impeller connected to the pump inlet, and a smaller vacuum is formed at the outer edge of the impeller connected to the discharge pipe. High pressure, so as long as the impeller keeps turning, liquid will continue to be sucked in and discharged.
The transparent hose 2 meters is the inlet pipe, which can be directly put into the diesel tank or connected with the oil outlet of the diesel tank. The black rubber hose is 4 meters, which is used to connect the oil gun directly.
|
Model
|
JYB60
|
|
Pump
|
Single phase 220V
|
|
Flow Meter
|
FM-120L in liter
|
|
Outlet Hose
|
4m
|
|
Automatic Nozzle
|
Yes
|
|
Inlet Hose
|
2M
|
|
Flow Rate
|
20-60L per minute
|
Q:
What is your standard configuration for connections
A:
Fill Dip,Inlet,Fuel Gauge,Outlet: DN25, or customized.
E-Vent,Free Vent: DN50.
Q:
Can we specify the colour of the tanks and are they painted or powder coating paint?
A:
Yes, can specify colour, powder coating paint.
Q:
Is there any way to check for fluid between the skins (1st and 2nd layer)?
A:
Oil tank with inspection port.
Q:
Can you confirm if the tanks are supplied with, dip stick & the vent?
A:
Yes.
Q:
Is there a suction tube on the outlet port for evac of the waste oil?
A:
Yes.
Q:
For the secondary sealing capacity, whether to increase the capacity of 10% on the basis of the inner tank capacity?
A:
Yes.
Q: How can i pay the money without risk?
A: You can pay the money to us via Alibaba Trade Assurance,then the alibaba can guarantee your money safe and the delivery on time.
Q: Can i do your agent in our country or some district?
A: Yes, if you quantity is enough, no problem, the 40HQ container is okay.
