Quick Details
-
Brand Name:
-
AUTO
-
Model Number:
-
UQK
-
Operating Temperature:
-
--40~80°C; -40~120°C
-
Working pressure:
-
0-16MPa
-
Sgnial output:
-
SPST or SPDT reed contacts
-
Working power:
-
220VAC/380VAC
-
Medium Density:
-
above 0.5g/cm3
-
Protection Grade:
-
IP 65
-
Skype:
-
summer.cao39
Quick Details
-
Grade:
-
Industrial
-
Warranty:
-
12month
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
AUTO
-
Model Number:
-
UQK
-
Operating Temperature:
-
--40~80°C; -40~120°C
-
Working pressure:
-
0-16MPa
-
Sgnial output:
-
SPST or SPDT reed contacts
-
Working power:
-
220VAC/380VAC
-
Medium Density:
-
above 0.5g/cm3
-
Protection Grade:
-
IP 65
-
Skype:
-
summer.cao39

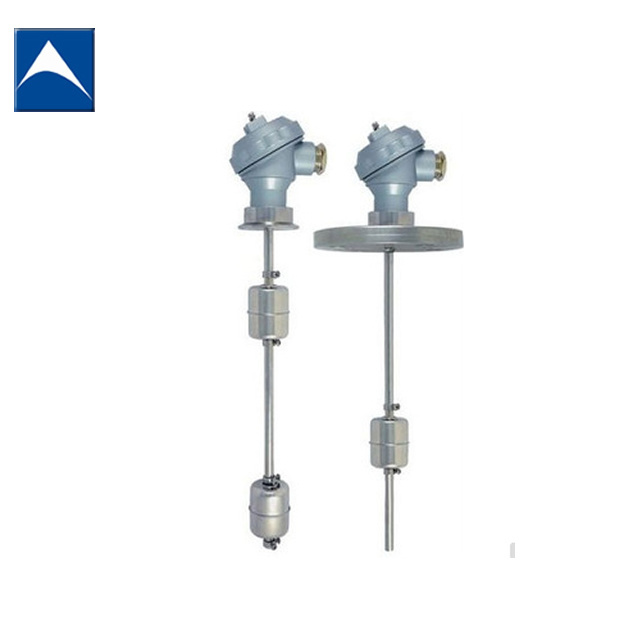

top mounting magnetic float level switch transmitter with low price China supplier
Application:
UQK series magnetic flap liquid level gauge is widely used in petroleum, chemical industry, oil field, pharmaceuticals industry, food, wine industry, etc..
Technical Parameter:
| connection type: | flange DN50~DN150, G2" or G11/2" thread, G3/8" or G1/2" thread |
| diameter pipe: | 14mm, 16mm, 20mm |
| max length: | 6000mm |
| switching state: | SPST; SPDT |
| switch No.: | max 8 switches |
| contact nodes: | AO-normally open (250VAC 0.5A 20W) |
| AC-normally closed ( 250VAC 0.5A 20W ) | |
| BO- normally open (250VAC 1.0A 250W) | |
| BC- normally closed ( 250VAC 1.0A 250W ) | |
| C-transformation ( 250VAC 1.0A 60W ) | |
| life time: | ≤1x10 9 |
| tolerance: | ±8 ±2 mm |
| minmum distance of tow switches: | 50mm |
| transmitting: | above2000mm |
| medium density: | above 0.5g/cm 3 |
| working presure: | PN2.5~PN160 |
| working temperature: | -40~80°C; -40~120°C |
| high temperature type: | ≤150°C |
| float ball: | φ30~ φ120 |
| material: | 304,316L, 321, 1Cr18Ni9Ti, 0Cr18Ni9Ti, 00Cr17Ni14Mo2, Titanium |
| installation of no vertical: | ≤±25° |
| protection class: | IP65 |
| explosion-proof: | ExiaII CT5 |
