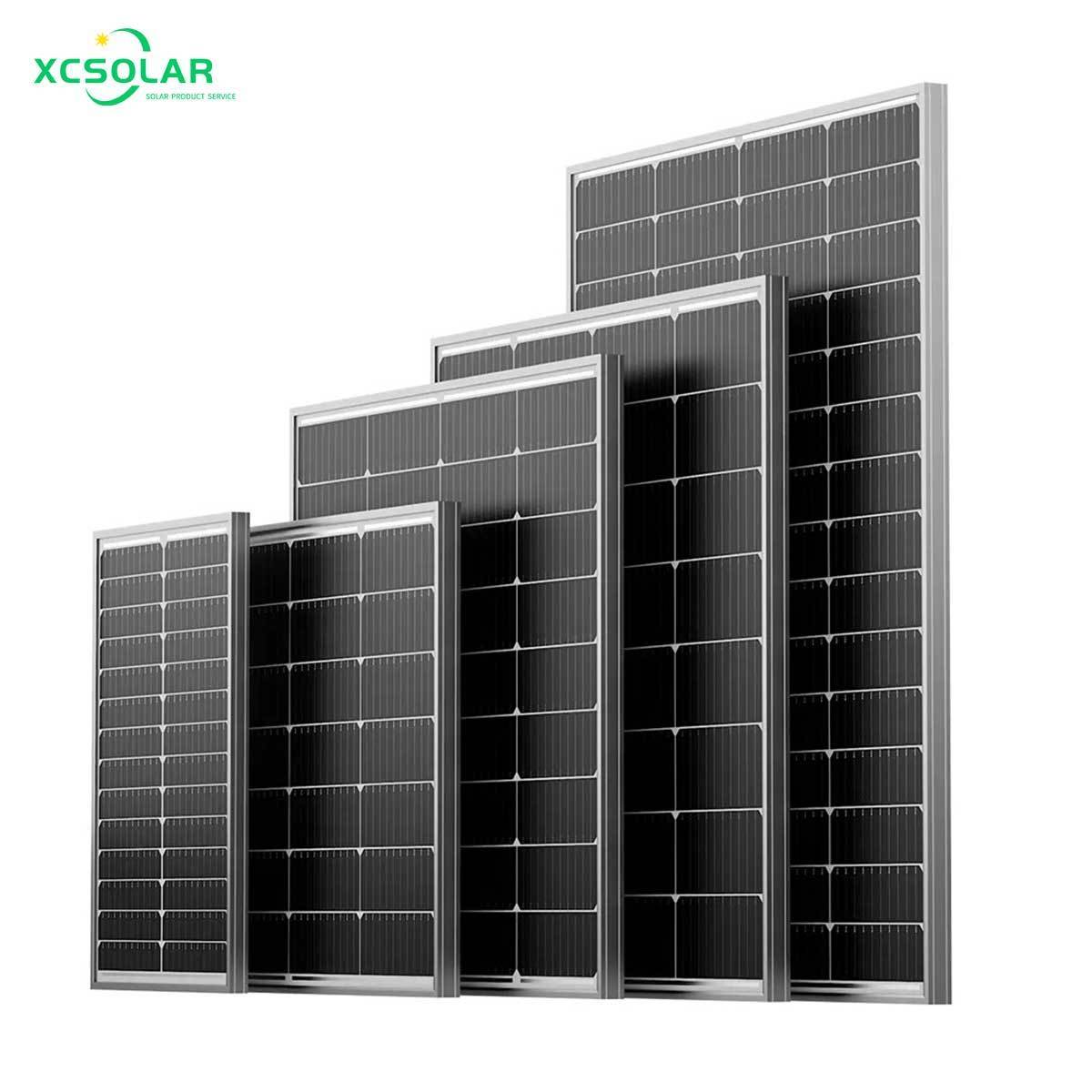

200 Watt 200W Solar Panel Kit + Solar controller 12/24V volt RV Boat Off Grid
200 Watt 200W Solar Panel Kit + Solar controller 12/24V volt RV Boat Off Grid
200 Watt 200W Solar Panel Kit + Solar controller 12/24V volt RV Boat Off Grid
200 Watt 200W Solar Panel Kit + Solar controller 12/24V volt RV Boat Off Grid
200 Watt 200W Solar Panel Kit + Solar controller 12/24V volt RV Boat Off Grid
200 Watt 200W Solar Panel Kit + Solar controller 12/24V volt RV Boat Off Grid
200 Watt 200W Solar Panel Kit + Solar controller 12/24V volt RV Boat Off Grid
200 Watt 200W Solar Panel Kit + Solar controller 12/24V volt RV Boat Off Grid

200 Watt 200W Solar Panel Kit + Solar controller 12/24V volt RV Boat Off Grid

FOB Reference Price: Get Latest Price
≥10000 Pieces
US $0.13
≥86000 Pieces
US $0.12
≥341000 Pieces
US $0.1
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Warranty:
25years
Brand Name:
XC SOLAR
Model Number:
Nancy-240124
Place of Origin:
Jiangsu, China
Panel Dimensions:
1240*765*30mm
Application:
Solar Power System/ solar generator
Product name:
Monocrystalline Silicon Solar Panel
Keyword:
Pv Module
Frame:
Anodized Aluminium Alloy
Junction Box:
IP67 Rated
OEM Order:
Acceptable
Glass:
3.2mm Tempered Low Iron
Power:
10W-700W
Weight:
10kg
Solar cell:
Mono 182*182mm

Quick Details

Cell size:
182mmx182mm
Type:
PERC, Half Cell, Bifacial, Double-glass, All Black, HJT, N-TYPE, TOPCON
Panel Efficiency:
20.95%
Warranty:
25years
Brand Name:
XC SOLAR
Model Number:
Nancy-240124
Place of Origin:
Jiangsu, China
Panel Dimensions:
1240*765*30mm
Application:
Solar Power System/ solar generator
Product name:
Monocrystalline Silicon Solar Panel
Keyword:
Pv Module
Frame:
Anodized Aluminium Alloy
Junction Box:
IP67 Rated
OEM Order:
Acceptable
Glass:
3.2mm Tempered Low Iron
Power:
10W-700W
Weight:
10kg
Solar cell:
Mono 182*182mm
Products Description
Maximum Power(Pmax)
170W
200W
575W
Open-circuit Voltage (Voc)
22.6V
25.8V
46.2V
Maximum Power Voltage(Vmp)
18.8V
21.5V
38.4V
Short-circuit Current (Isc)
9.52A
9.81A
18.7A
Maximum Power Current (Imp)
9.04A
9.25A
18.58A
Solar Panel Efficiency
20.7%
21.2%
21.7%
Power Tolerance
0~+5W
Standard Test Environment
Irradiance 1000w/m2, Ambient temperature 25℃, Spectrum AM 1.5
Application
Solar Energy System
Output cable
TUV1*4.0mm2
Connector
Compatible Connector
Junction Box
IP68 Rated Waterproof
To Know More Details of Our Off / On Grid Solar Energy System? CONTACT US NOW！
HALF CELL MONO/POLY SOLAR PANEL

1. Tolerancia de potencia positiva: 0~+5w
2. La doble inspección 100 % EL garantiza que los módulos estén libres de defectos
3.5BB, 6BB, 9BB, 10BB, 12BB, MBB disponible 4. 158,75 mm, 166 mm, 182 mm, 210 mm Tamaño
5. Celda completa, medio corte, 3 cortes
6.Perc/Hjt/Todo negro/Tecnología sin marco 7. Etiqueta a prueba de agua en la parte
posterior del panel

Pre-Drilled Holes for Easy Installation
El panel solar XC viene con un marco trasero y orificios de montaje en el suelo para su instalación. Son fáciles de instalar y asegurar, lo que los hace ideales para sistemas solares híbridos, conectados a la red y fuera de la red.

Extended Durability
La caja de conexiones impermeable con clasificación IP68 y los conectores solares garantizan que no entre agua ni polvo durante el uso prolongado en exteriores. Los diodos de derivación incorporados protegen las células solares del sobrecalentamiento, lo que permite que el panel solar funcione durante sombras accidentales. evitando las células de bajo rendimiento.
FAQ

Q: Which renowned manufacturers do you collaborate with for your solar PV components?

A: We have established deep collaborations with several renowned solar PV component manufacturers, including longi, ja, and jinko. These partnerships ensure that we can provide high-quality PV components and benefit from the latest technology and innovation.

Q: What are the advantages of your own branded solar PV components?

A: We have our own branded component factory, which allows us to control product quality and the supply chain. With extensive experience in research, development, and manufacturing of our branded components, we can offer high-quality and reliable PV components while maintaining a competitive edge in pricing.

Q: what can you buy from us?

A: Solar Panel,Solar System,Battery,Inverter, Mobile power station, solar mounting system

Q: How do your solar PV components differ from those of other suppliers?

A: Our deep collaborations with renowned component manufacturers and our own branded components differentiate us from other suppliers. We offer a combination of quality, competitive pricing, and excellent after-sales services. Our goal is to provide customers with high-quality, cost-effective, and reliable PV components that contribute to their sustainable development and investment returns.

Q: How do your solar PV components differ from those of other suppliers?

A: Our deep collaborations with renowned component manufacturers and our own branded components differentiate us from other
suppliers. We offer a combination of quality, competitive pricing, and excellent after-sales services. Our goal is to provide
customers with high-quality, cost-effective, and reliable PV components that contribute to their sustainable development and
investment returns.

Q: How to become your agent?

A: Contact us through Alibaba, we will give you the best price and look forward to your greetings.
