Quick Details
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
R&J
-
Dimension(L*W*H):
-
Costomized, 330/330/690MM
-
Weight:
-
KG
-
Description:
-
Air cartridge
-
Feature:
-
High Efficiency
-
Application:
-
Cement/Food/Clay Grinding
-
Marketing Type:
-
Hot Product 2019
-
Certification:
-
ISO9001
-
After Warranty Service:
-
Online support
Quick Details
-
Core Components:
-
PE, fiber glass, PLC
-
Efficiency:
-
99.5%
-
Porosity:
-
1um-20um
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
R&J
-
Dimension(L*W*H):
-
Costomized, 330/330/690MM
-
Weight:
-
KG
-
Description:
-
Air cartridge
-
Feature:
-
High Efficiency
-
Application:
-
Cement/Food/Clay Grinding
-
Marketing Type:
-
Hot Product 2019
-
Certification:
-
ISO9001
-
After Warranty Service:
-
Online support
Product Description
Specification

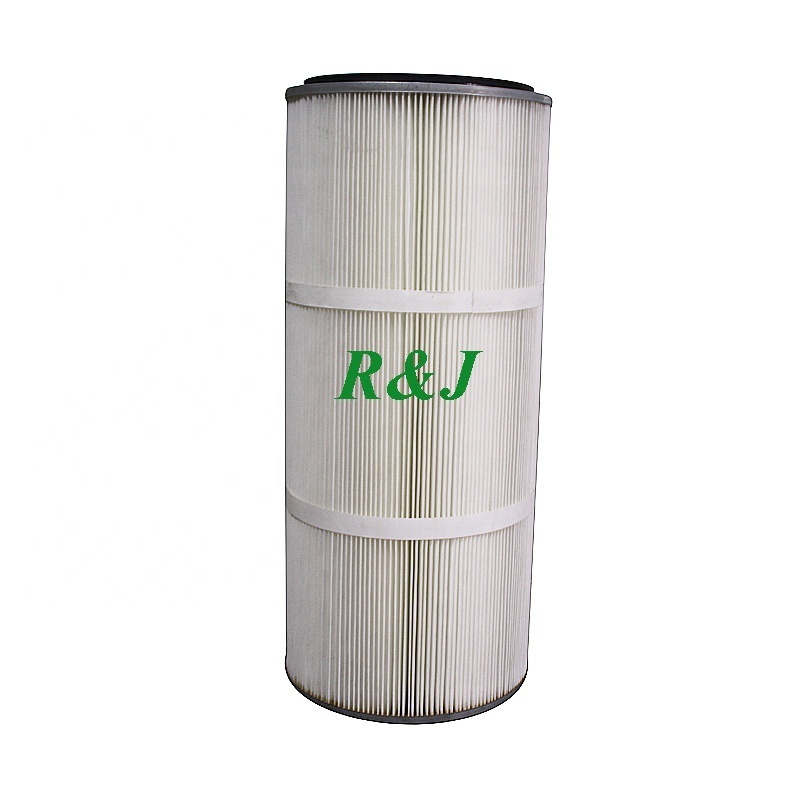

High quality pleated air filter cartridge used for large dust remover
Polyester media filter cartridge has very high filtration efficiencies on fine particulate, along with high resistance to abrasion and chemicals. This media provides superior dust cake release properties compared to paper media. Spun bond media is particularly suitable for pharmaceutical manufacturing, powder coating or fibrous materials such as wood or fiber glass.
Polyester media filter cartridge has very high filtration efficiencies on fine particulate, along with high resistance to abrasion and chemicals. This media provides superior dust cake release properties compared to paper media. Spun bond media is particularly suitable for pharmaceutical manufacturing, powder coating or fibrous materials such as wood or fiber glass.
Features:
(1) Suitable for the filtration of very fine dust type in welding fumes Mechanical processing, pharmaceutical and construction
industries And sticky dust collection.
(2) Spun bonded polyester with PTFE membrane, microspore Offers 99.99% filter efficiency.
(3) Wide pleat spacing and smooth, hydrophobic PTFE provides excellent particle release.
(4) Excellent resistance to chemical erosion.
(5) Electrochemical plate/stainless steel top and bottom, no rust Perforated zinc galvanized metal inner core allows good airflow.
industries And sticky dust collection.
(2) Spun bonded polyester with PTFE membrane, microspore Offers 99.99% filter efficiency.
(3) Wide pleat spacing and smooth, hydrophobic PTFE provides excellent particle release.
(4) Excellent resistance to chemical erosion.
(5) Electrochemical plate/stainless steel top and bottom, no rust Perforated zinc galvanized metal inner core allows good airflow.
|
Model
|
OD
|
|
Length
|
Filtration surface(m2)
|
|
|
3266
|
324mm
|
|
660mm
|
9.4m2
|
|
|
3566
|
324mm
|
|
660mm
|
9.4m2
|
|
|
3275
|
324mm
|
|
750mm
|
10.7m2
|
|
|
3288
|
324mm
|
|
880mm
|
12.5m2
|
|
|
3290
|
324mm
|
|
915mm
|
13.0m2
|
|
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
