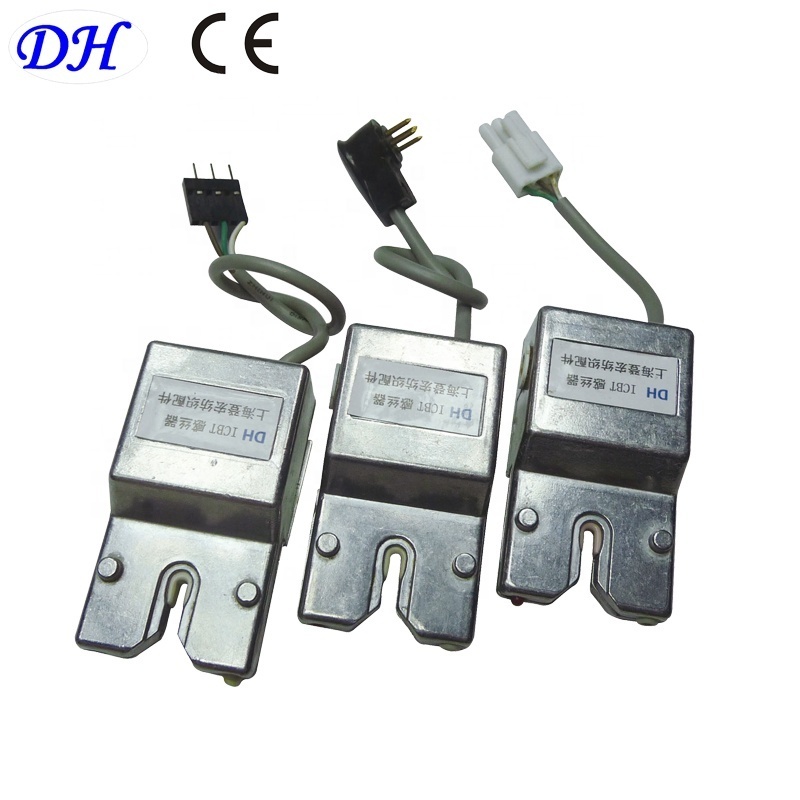

ICBT yarn sensor for yarn twisting machine suitable for DTY ATY filament

Specifications

DHYS002 ICBT yarn sensor for yarn twisting machine suitable for DTY ATY filament

Supply Voltage : 24VDC +/-15%
Working Current: 1.2A.
Output : NPN output

Sensing method: Capacitive

Reaction time: < 0.1second

Housing material: Aluminum

Objects can be detected: Polyester, Spandex, Silk etc

Ambient Temperature: -20℃~80℃

Circruit connection:

Features:

1) Standard 24-volt DC supply (working normally within 18-30 volt range);

2) Output form:NPN/PNP;

3) Built-in direct control signal system;

4) Provide visual alarm function (led flashing signal);

5) Convenient installation and special cable (or interface);

6) The sensitivity of the sensor can be adjusted according to the requirements of customers (suitable for different spinning processes);

7) It is suitable for winding tube, twisting thread, blending wire and composite fiber deformation

Basical functions:

Capacitive yarn sensor yarn sensor can detect the running (linear motion) of various types of spinning on the spinning machine and other machines. When the spinning stops or breaks, the capacitive yarn sensor can inform the automatic control system of the spinning machine in time.
According to the actual situation (determined by the model of the spinning machine), the yarn sensor can directly drive the automatic yarn cutter connected with itself to cut off the weft at the corresponding position.
Control signal can also be sent to automatically stop the corresponding spinning machine working position. In an alarm state, Capacitive yarn sensor alerts field operators with flashing signals from leds.

Capacitive yarn sensor is suitable for spinning made of all materials that can carry electrostatic charge. For elastane materials, the capacitive sensor also provides a special model (which can monitor low speed spinning motion).

Opreating principle:

The capacitive yarn sensor probe can monitor the voltage signal generated by the electrostatic charge carried by the spinning itself in the process of motion and judge the working condition of the spinning according to its change. The detection accuracy of capacitive yarn sensor is not affected by dust. However, advise working conditions such as oil contamination or severe vibration will reduce the detection accuracy of yarn sensor

Safety instruction:

Reverse connection or short circuit contact of equipment interface lines is strictly prohibited.

We can provide 1-2 free samples, you only need pay the shipping fee.

Delivery time: Samples 1-3 working days and
Orders for 3-7 working days.

Our srtongest point is that we consult. So anything you want to know about our products, please ask us!
