Quick Details
-
Brand Name:
-
DEWO
-
Model Number:
-
DV-16-A02-MM3-100E, DV-16-A02-MM3-100E
-
Max. Current:
-
16A
-
Operating Temperature:
-
-40T125
-
Protection Level:
-
IP40
-
Item:
-
microswitches
-
Rating:
-
16A 125/250VAC
-
Electrical Life:
-
50,000cycles
-
Mechanical Life:
-
1,000,000cycles
-
Autuator:
-
button/lever
-
Terminal Type:
-
solder/PCB/quick connect terminal
-
Circuit:
-
SPDT/SPST-NC/SPST-NO
-
Operating Force:
-
0.5~2.5N
-
Approval:
-
UL, KC, ENEC, CQC, CB, CUL
Quick Details
-
Whether the smart:
-
NO
-
Max. Voltage:
-
250V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
DEWO
-
Model Number:
-
DV-16-A02-MM3-100E, DV-16-A02-MM3-100E
-
Max. Current:
-
16A
-
Operating Temperature:
-
-40T125
-
Protection Level:
-
IP40
-
Item:
-
microswitches
-
Rating:
-
16A 125/250VAC
-
Electrical Life:
-
50,000cycles
-
Mechanical Life:
-
1,000,000cycles
-
Autuator:
-
button/lever
-
Terminal Type:
-
solder/PCB/quick connect terminal
-
Circuit:
-
SPDT/SPST-NC/SPST-NO
-
Operating Force:
-
0.5~2.5N
-
Approval:
-
UL, KC, ENEC, CQC, CB, CUL

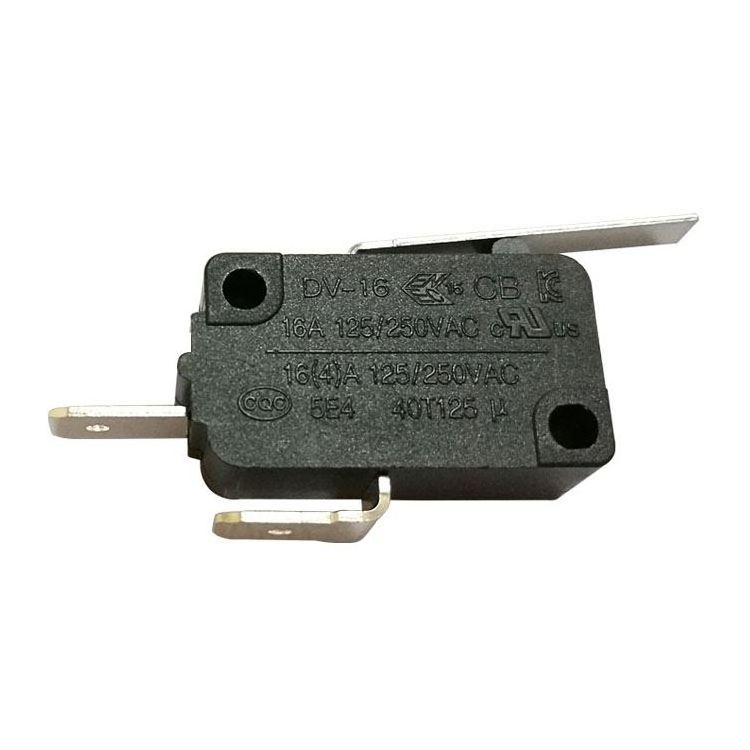

vw door kw10 mini ms4 16a t120 normally open microswitch
Features :
(1) Various levers and terminal types are available for choice.
(2) Compact design, assemble easily.
(3) Fast action, long life, which could decline cost.
(4) Quality is reliable, has got UL, CUL, ENEC, CQC,CB, SGS certificates.
(5) Strict inspection: automated machine and human double full-inspection.
(6) Widely used in home appliances, electronic devices, automobile industry automation machines.
|
Item |
vw door kw10 mini ms4 16a t120 normally open microswitch |
|
|
Model Number |
DV-16-A02-MM3-100E |
|
|
Rating |
16A 125/250VAC |
|
|
Temperature Range |
-40°C~+125°C |
|
|
IP Code |
IP40 |
|
|
Dimension |
27.9*18.4*10.3mm |
|
|
Material of Case & Knob |
PBT |
|
|
Material of Contacts |
AgNi10 |
|
|
Material of Terminal |
Cu |
|
|
Life |
Electrical Service Life |
50,000Cycles |
|
Mechanical Service Life |
1,000,000Cycles |
|
|
Approval |
UL, CUL, ENEC, CQC,CB, KC |
|
