Quick Details
-
Place of Origin:
-
Jiangsu
-
Brand Name:
-
Kunyi Electric
-
Dimension(L*W*H):
-
as your requests
-
Weight:
-
1 KG
-
Working Temperature Range:
-
0 - 500 ℃
-
Core Components:
-
other
-
Product Name::
-

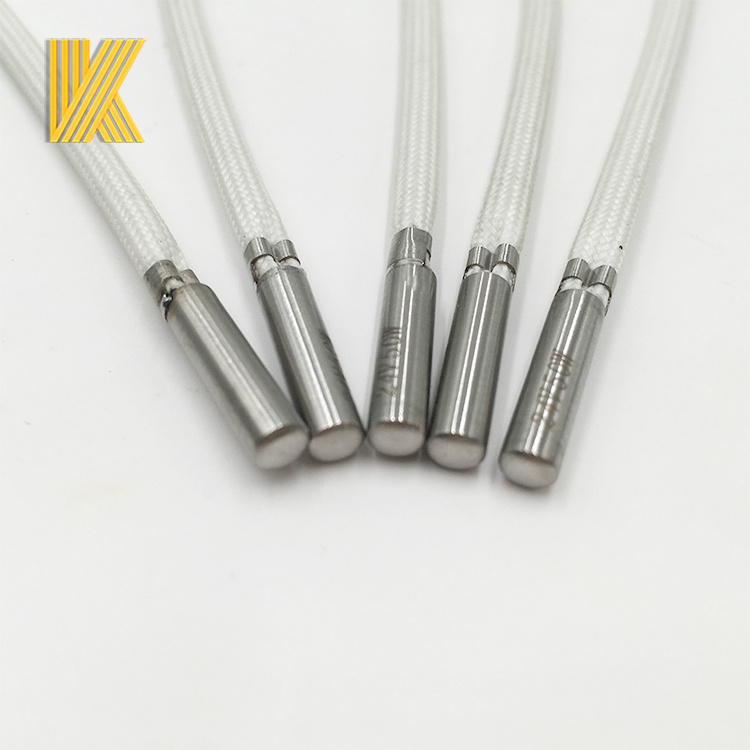

heater cartridge 40w heating element for 3d printer
-
Voltages available::
-
12V, 24v, 36v, 110v, 220v, 230v, 240v, 380V
-
Power available::
-
Can be customized, Max 50W/cm2
-
Tube Sheath::
-
stainless steel 304,321,316, Incoloy 800, Incoloy 840, Ti
-
Tube Diameter::
-
2.8-35mm (Non-standard can be customized)
-
Tube Length::
-
10mm - 10000mm
-
Resistance heating wire::
-
Ni-Cr or FeCr
-
Insulation material::
-
High-purity Mgo
-
Keywords::
-
cartridge heater
-
Thermocouple::
-
K type or J type/ or without
Quick Details
-
Type:
-
Cartridge Heater
-
Power Source:
-
Electric
-
Voltage:
-
12V-380V,can be customized
-
Place of Origin:
-
Jiangsu
-
Brand Name:
-
Kunyi Electric
-
Dimension(L*W*H):
-
as your requests
-
Weight:
-
1 KG
-
Working Temperature Range:
-
0 - 500 ℃
-
Core Components:
-
other
-
Product Name::
-
heater cartridge 40w heating element for 3d printer
-
Voltages available::
-
12V, 24v, 36v, 110v, 220v, 230v, 240v, 380V
-
Power available::
-
Can be customized, Max 50W/cm2
-
Tube Sheath::
-
stainless steel 304,321,316, Incoloy 800, Incoloy 840, Ti
-
Tube Diameter::
-
2.8-35mm (Non-standard can be customized)
-
Tube Length::
-
10mm - 10000mm
-
Resistance heating wire::
-
Ni-Cr or FeCr
-
Insulation material::
-
High-purity Mgo
-
Keywords::
-
cartridge heater
-
Thermocouple::
-
K type or J type/ or without
Products Description
Cartridge heaters are manufactured by tightly coiled resistance wire around a cylindrical ceramic holder. The resistance wire can be placed so that the cartridge heater can have one or more power zones. The entire heating unit is then placed in a metal tube and carefully packed with pure magnesium oxide as an insulator between the resistance wire and casing. Then the cartridge heater is compressed to the correct end diameter and tolerance.
cartridge heaters are built to withstand really tough working conditions such as process temperatures up to 750°C, vibrations, shocks and frequent expanding/contraction.
Examples of industrial application is tool heating, solid body heating, liquid heating, casting, melting curing, soldering and heating medical and laboratory equipment.
|
Product Name
|
Customized 220v 270w electric heating rod resistance heater element cartridge heater for pellet stove
|
|
Voltages available
|
12V, 24v, 36v, 110v, 220v, 230v, 240v, 380V
|
|
Power available
|
Max 30W/cm2
|
|
Tube Sheath
|
stainless steel 304,321,316, Incoloy 800, Incoloy 840, Ti
|
|
Tube Diameter
|
2-35mm, can be customized
|
|
Tube Length
|
10mm - 10000mm, can be customized
|
|
Resistance heating wire
|
Ni-Cr or FeCr
|
|
Insulation
|
High-purity Mgo
|
|
Temperature
|
Max 750 ℃
|
|
Lead wire
|
300mm length; Different type of wire (Teflon/silicone high temperature frberglass) is available
|
Installation of cartridge heater
Termination types of cartridge heater
Application
1. Injection moulding-internal heating of nozzies
2. Hot runner systems-Heating of manifolds
3. Packaging industry-Heating of cutting bars
4. Packaging industry-Heating of hot stamps
5.Laboratories-Heating of analytical equipment
6.Medical:Dialysis.sterilization,Blood Analyzer,Nebulizer,Blood/Fluid Warmer,Temperature Therapy
7.Telecommunications:Deicing.Enclosure Heater
8.Transportation:Oil/Block Heater,Aiecraft Coffee Pot Heaters.
9.Food Service:Steamers,Dish Washers.
10.Industrial:Packaging Equipment,Hole Punches,Hot Stamp.
