Quick Details
-
Color:
-
Silvery
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
BETRE/OEM
-
Main Material:
-
Aluminum alloy
-
Color:
-
Silvery

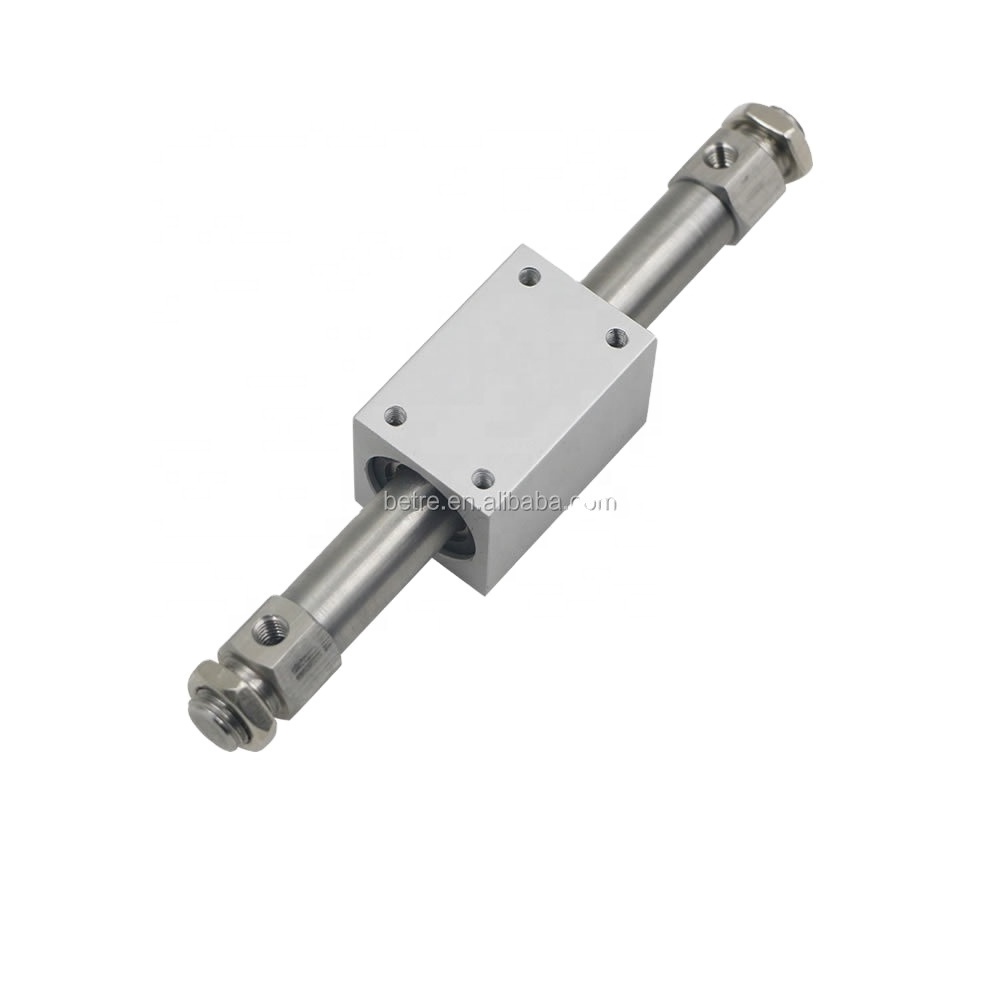

High Quality SMC Type Magnetically Coupled Rodless Cylinder CY3B Series
Specification
| Bore size(mm) | 6 | 10 | 15 | 20 | 25 | 32 | 40 | 50 | 63 |
| Fluld | Air | ||||||||
| Proof pressure | 1.05MPa | ||||||||
| Max.operating pressure | 0.7MPa | ||||||||
| Min.operating pressure | 0.16 | 0.16 | 0.16 | 0.16 | 0.15 | 0.14 | 0.12 | 0.12 | 0.12 |
| Amblent and fluld temperature | -10 to 60℃ (No freezing) | ||||||||
| Plston speed | 50 to 500 mm/s | ||||||||
| Cushlon | Rubber bumper | ||||||||
| Lubrication | Not required (Non-lube) | ||||||||
| Stroke length tolerance(mm) | 0 to 250 st: +1.0 , 251 to 1000 st: +1.4, 1001 st to: +1.8 | ||||||||
| Mounting orientation | Horizontal,Inclined,Vertical Note) | ||||||||
| Mounting nut(2 pcs.) | Standard equipment (accessory) | ||||||||
| Magnet holding force(N) | 19.6 | 53.9 | 137 | 231 | 363 | 588 | 922 | 1471 | 2256 |
Note) When vertically mounting, it is impossible to perform an intermediate stop by means of a pneumatic circuit.
Standard Stroke
| Bore size (mm) | Standard stroke(mm) | Maximum available stroke(mm) |
| 6 | 50,100,150,200 | 300 |
| 10 | 50,100,150,200,250,300 | 500 |
| 15 | 50,100,150,200,250,300,350,400,450,500 | 1000 |
| 20 | 100,150,200,250,300,350,400,450,500,600,700,800 | 1500 |
| 25 | 3000 | |
| 32 | ||
| 40 | 100,150,200,250,300,350,400,450,500,600,700,800,900,1000 | 3000 |
| 50 | 5000 | |
| 63 |
Note 1) Long stroke specification (XB11) applies to the strokes exceeding 2000 mm. (Refer to page 1711.)
Note 2) The longer the stroke, the larger the amount of deflection in a cylinder tube. Pay attention to the mounting bracket and clearance value.
Note 3) Intermediate stroke is available by the 1 mm interval.
Ordering Information
Dimensions(mm)
