Quick Details
-
Model Number:
-
AHC20A
-
Max. Current:
-
20A
-
IP level:
-
IP20
-
Item:
-
Digital time switch AHC20A
-
Operating Voltage:
-
230-240 V AC
-
Frequency:
-
50-60 Hz
-
Program:
-
Weekly program
-
Program Functions:
-
ON/OFF, pulse, cycle program
-
ON/OFF Operation:
-
16 on & 16 off,18 times pulse
-
Installation Type:
-
DIN-rail
-
Power Reserve:
-
3 years
-
Type of Contact:
-
1 Channel
-
Certificates:
-
CE ISO CQC ROHS CHB TUV
Quick Details
-
Max. Voltage:
-
240VAC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ALION
-
Model Number:
-
AHC20A
-
Max. Current:
-
20A
-
IP level:
-
IP20
-
Item:
-
Digital time switch AHC20A
-
Operating Voltage:
-
230-240 V AC
-
Frequency:
-
50-60 Hz
-
Program:
-
Weekly program
-
Program Functions:
-
ON/OFF, pulse, cycle program
-
ON/OFF Operation:
-
16 on & 16 off,18 times pulse
-
Installation Type:
-
DIN-rail
-
Power Reserve:
-
3 years
-
Type of Contact:
-
1 Channel
-
Certificates:
-
CE ISO CQC ROHS CHB TUV

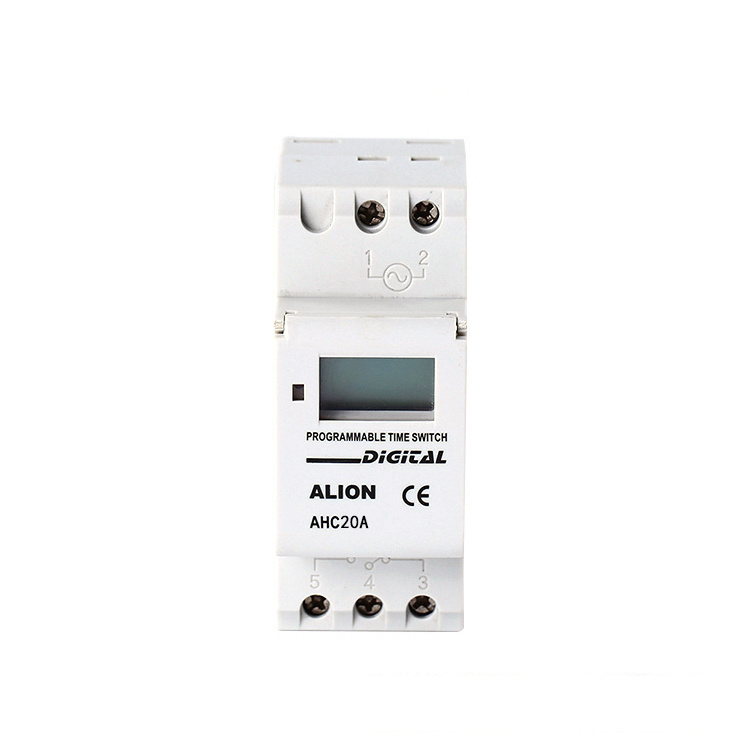

ALION AHC20A traffic light timer programmable digital time controller switch price
Focus On Time Control For 24 Years
The AHC20A serives are cost-effective choice,there are very diverse features and flexible installation, and a wide range of applications including commercial and industrial lighting and equipment control.
|
Description:
- Din rail weekly program Digital time switch - 1 channel - 24-Hour or 7-day applications - 20 ON/OFF program - 20 pulse programs(1s~59m59s) - Countdown program(1s~59m59s) - Calculated switching times - Integrated operating hour counter - Auto-correct time(-30 sec ≤Change in time≤30 sec) - Built-in lithium battery,power failure memory - Preset date and time - Fully operable without mains connection - Permanent switching ON/OFF - 12/24 hour format conversion - Screw terminals |
Applications:
- Light of billboard or showcase control
|
Technical data:
| Product Type | AHC20A |
| Number of ON / OFF programs | 20 |
| Number of pulse programs | 20 |
| Range of pulse time | 1s~59m59s |
| Range of countdown | 1s~99m59s |
| Width | 2 modules |
| Installation type | Din rail |
| Type of contact | Changeover contact |
| Switching output | Phase-independent |
| Method of connection terminal | Screw terminals |
| Power reserve | 3 years |
| Switching capacity at 250 V AC, cos φ = 1 | 20A |
| Switching capacity at 250 V AC, cos φ = 0,6 | 12A |
| Incandescent/halogen lamp load 230V | 2600W |
| Energy saving lamps | 170W |
| LED lamp < 2 W | 30W |
| LED lamp 2–8 W | 100W |
| LED lamp > 8 W | 120W |
| Fluorescent lamp load (electronic ballast) | 650W |
| Fluorescent lamp load (conventional) not corrected | 1000VA |
|
Fluorescent lamp load (conventional) series-corrected |
1000VA |
|
Fluorescent lamp load (conventional)
parallel-corrected |
730 VA 80uF |
| Time accuracy at 25 °C | typical ± 2 s/day (quartz) |
| Consumed power | 4VA |
| Test approval | CE |
| Type of protection | IP 20 |
| Protection class | II according to EN 60 730-1 |
| Housing and insulation material | High-temperature resistant, self-extinguishing thermoplastic |
| Work temperature: | -10 ~ +50 °C (non-icing) |
| Ambient humidity: | 35~85% RH |
Product selection:
| Product Type | Voltage | Frequency | Terminal | Switching capacity |
| AHC15A-220/50Hz-16A | 220V | 50Hz | 5 | 16A |
| AHC15A-220/60Hz-16A | 220V | 60Hz | 5 | 16A |
| AHC15A-110/50Hz-16A | 110V | 50Hz | 5 | 16A |
| AHC15A-110/60Hz-16A | 110V | 60Hz | 5 | 16A |
| AHC15A-12V-16A | AC/DC 12V | 50/60Hz for AC | 5 | 16A |
| AHC15A-24V-16A | AC/DC 24V | 50/60Hz for AC | 5 | 16A |
| AHC15A-220/50Hz-3P-20A | 220V | 50Hz | 3 | 20A |
| AHC15A-220/50Hz-5P-20A | 220V | 50Hz | 5 | 20A |
| AHC15A-220/60Hz-3P-20A | 220V | 60Hz | 3 | 20A |
| AHC15A-220/60Hz-5P-20A | 220V | 60Hz | 5 | 20A |
| AHC15A-110/50Hz-3P-20A | 110V | 50Hz | 3 | 20A |
| AHC15A-110/50Hz-5P-20A | 110V | 50Hz | 5 | 20A |
| AHC15A-110/60Hz-3P-20A | 110V | 60Hz | 3 | 20A |
| AHC15A-110/60Hz-5P-20A | 110V | 60Hz | 5 | 20A |
| AHC15A-12V-20A | AC/DC 12V | AC 50/60Hz | 5 | 20A |
| AHC15A-24V-20A | AC/DC 24V | AC 50/60Hz | 5 | 20A |
Connection Example
Scale Drawings
